VCD02

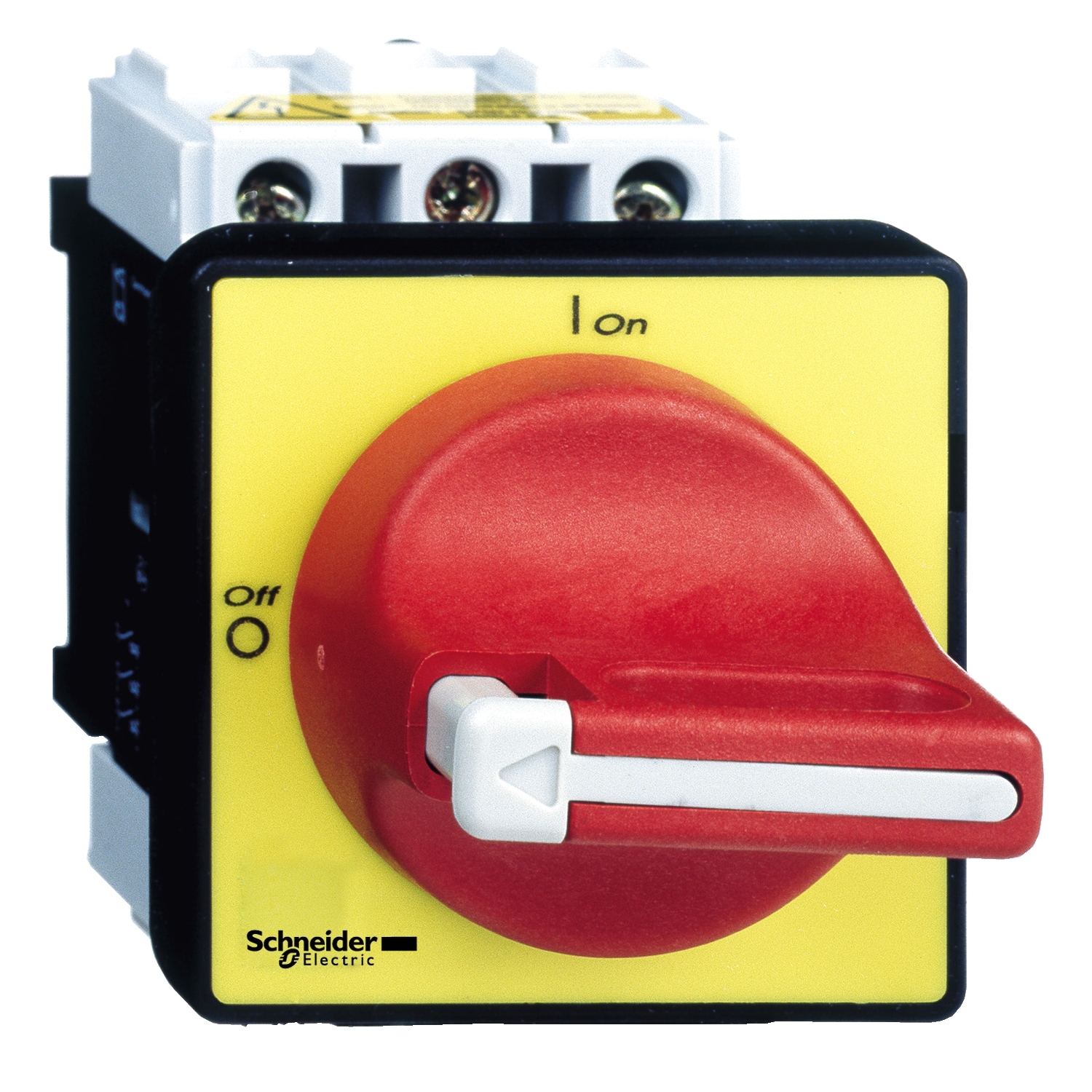

Schneider Electric VCD02: TeSys Vario switch disconnector for door mounting, 3 poles, 12A/690V, for motor switching applications up to 4kW@400V AC-23. Complete unit composed of a switch body V02, a red handle with yellow 60x60mm front plate KCD1PZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with central fixing on door, ensuring IP65 to the mounting. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Manufacturer

Schneider Electric

Part number

VCD02

Product family

TeSys Vario

Category

Push Buttons & Signalling

Technical details

Range: TeSys Vario; Voltage: 690V, 400V AC; Current: 12A; Power: 4kW; Dimensions: 60x60mm; Published sizes: 22.5mm; Ingress protection: IP65; Colour: red, yellow, Green; Official designation: Switch-disconnectors,TeSys Control,for ON/emergency stop,12A(V02),fixing by single hole Ø22.5mm,for mounting on door

Dimensions

60 x 60
