VCCDN20

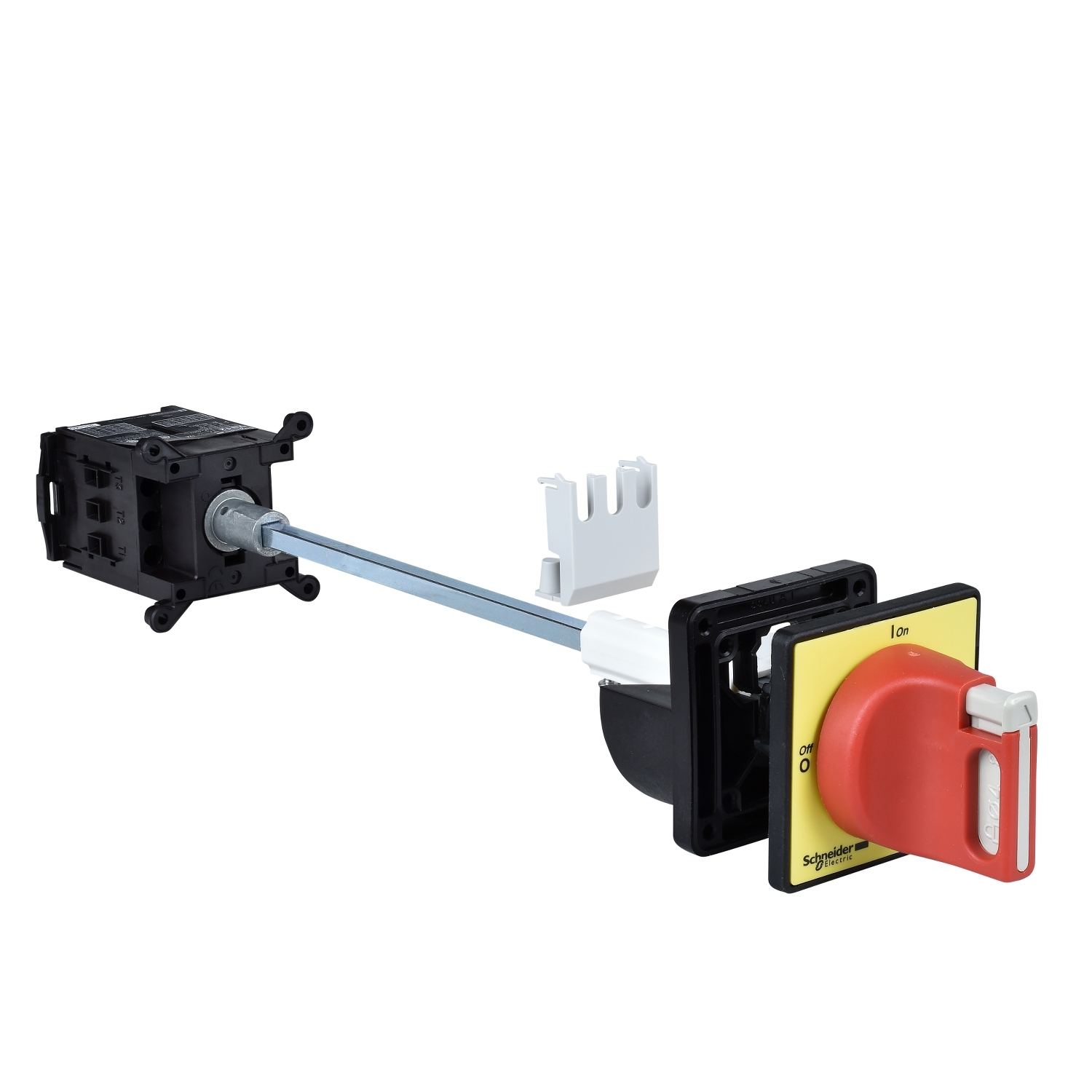

Schneider Electric VCCDN20: TeSys Vario switch disconnector for mounting at back of an enclosure, 3 poles, 20A/690V, for motor switching applications up to 5.5kW@400V AC-23. Complete unit composed of a switch body V0, an extension shaft VZN17, a door interlock plate KZ32, a red handle with yellow 60x60mm front plate KCD1PZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with central fixing on door, ensuring IP65 to the mounting. Possible distance between back of enclosure and door 300-330mm. Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).

Manufacturer

Schneider Electric

Part number

VCCDN20

Product family

TeSys Vario

Category

Push Buttons & Signalling

Technical details

Range: TeSys Vario; Voltage: 690V, 400V AC; Current: 20A; Power: 5.5kW; Dimensions: 60x60mm; Published sizes: 330mm; Ingress protection: IP65; Colour: red, yellow, Green; Official designation: Switch disconnector,TeSys Control,for ON/emergency stop,20A(VN20),for mounting at back of an enclosure

Dimensions

60 x 60
