TCSESPU083FN0

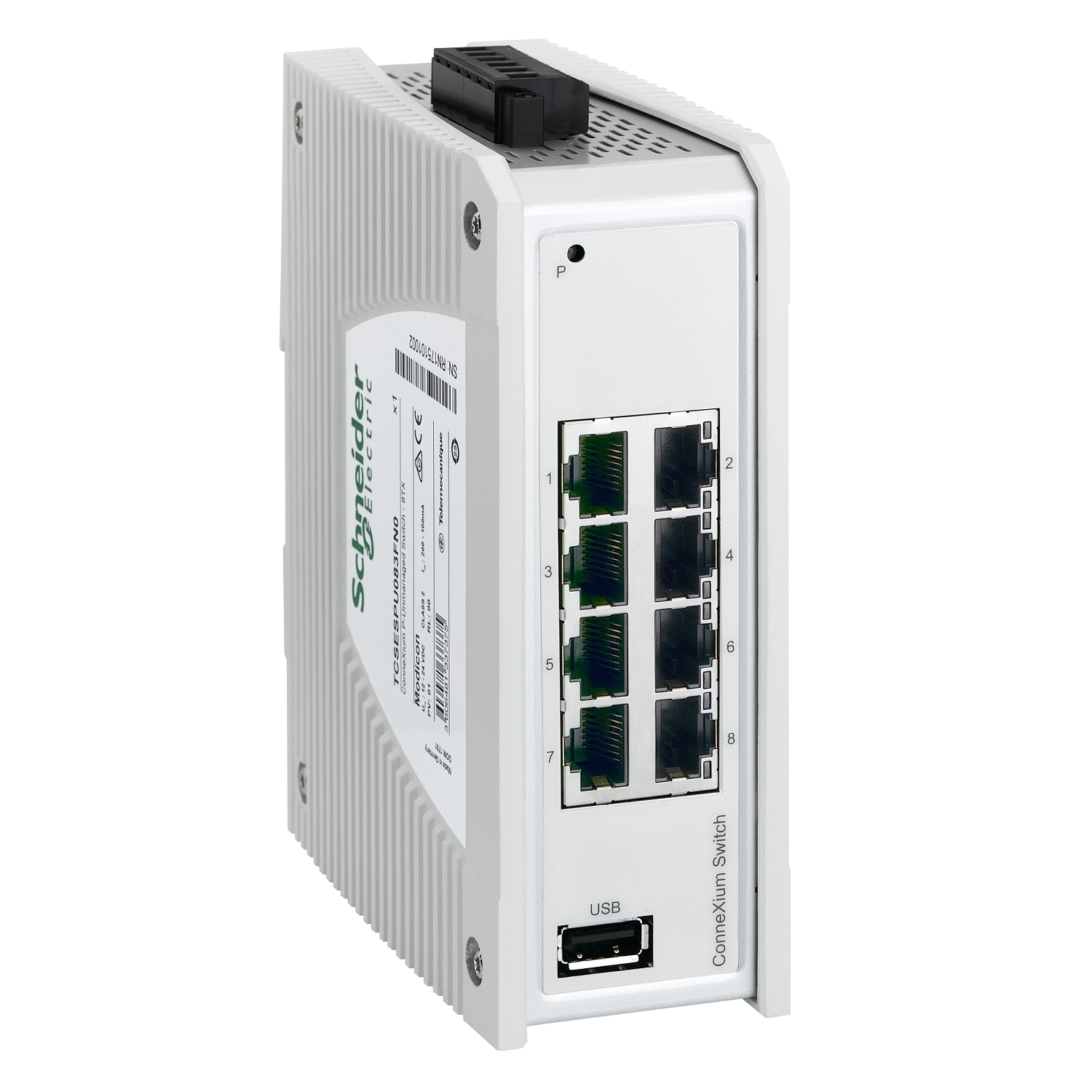

Schneider Electric TCSESPU083FN0: This product is part of the Modicon Networking range, an offer of Modicon Premium Unmanaged Switch. This device comes with Ethernet TCP/IP protocol. It comes with 8 copper cable transmission ports. It provides simple connectivity for multiple Ethernet device and more advanced switching features for unmanaged switches. This product works at a power consumption of 2.6W and a rated voltage from 12V to 24V DC. It is furnished with 6-way removable connector (power supply) for electrical connection Its dimensions are 50mm (width) x 135mm (height) x 117mm (depth) and weighs 0.44 kg. It has shielded connectors which are suitable for medium, isolated networks or system with medium network traffic and network with medium complexity levels. It is CE, UL, RCM certified and conforms to UL 61010 and EN/IEC 61131 standards. It is designed to be mounted on a 35mm symmetrical DIN rail. The Modicon Networking range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network.

Manufacturer

Schneider Electric

Part number

TCSESPU083FN0

Product family

Modicon Premium

Category

PLCs & Controllers

Technical details

Range: Modicon Premium; Voltage: 12V, 24V DC; Power: 2.6W; Published sizes: 50mm, 135mm, 117mm, 35mm; Material: copper; Official designation: network switch, Modicon Networking, premium unmanaged, 8 ports for copper

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
