TCSESPU053F1CU0

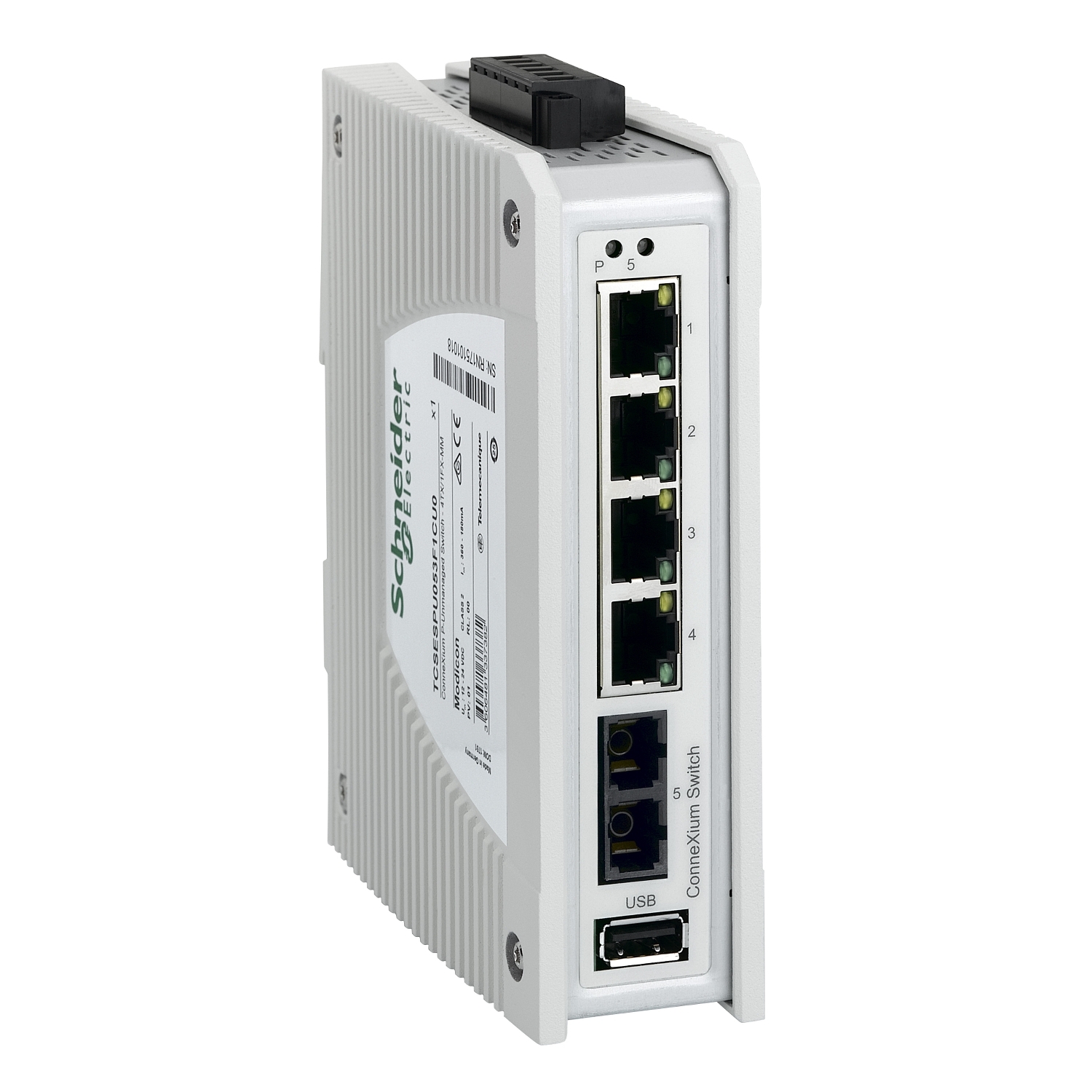

Schneider Electric TCSESPU053F1CU0: This product is part of the Modicon Networking range, an offer of Modicon Premium Unmanaged Switch. This device comes with Ethernet TCP/IP protocol. It comes with 4 copper cable transmission ports and 1 port for Multi-mode fiber optic. It provides simple connectivity for multiple Ethernet device and more advanced switching features for unmanaged switches. This product works at a power consumption of 4.3W and a rated voltage from 12V to 24V DC. It is furnished with 6-way removable connector (power supply) for electrical connection Its dimensions are 39mm (width) x 135mm (height) x 117mm (depth) and weighs 0.43 kg. It has shielded connectors which are suitable for medium, isolated networks or system with medium network traffic and network with medium complexity levels. It is CE, UL, RCM certified and conforms to UL 61010 and EN/IEC 61131 standards. It is designed to be mounted on a 35mm symmetrical DIN rail. The Modicon Networking range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network.

Manufacturer

Schneider Electric

Part number

TCSESPU053F1CU0

Product family

Modicon Premium

Category

PLCs & Controllers

Technical details

Range: Modicon Premium; Voltage: 12V, 24V DC; Power: 4.3W; Published sizes: 39mm, 135mm, 117mm, 35mm; Material: copper; Official designation: ConneXium Premium Unmanaged Switch - 4 ports for copper + 1 ports for fiber optic multimode
