SOL80N3E800

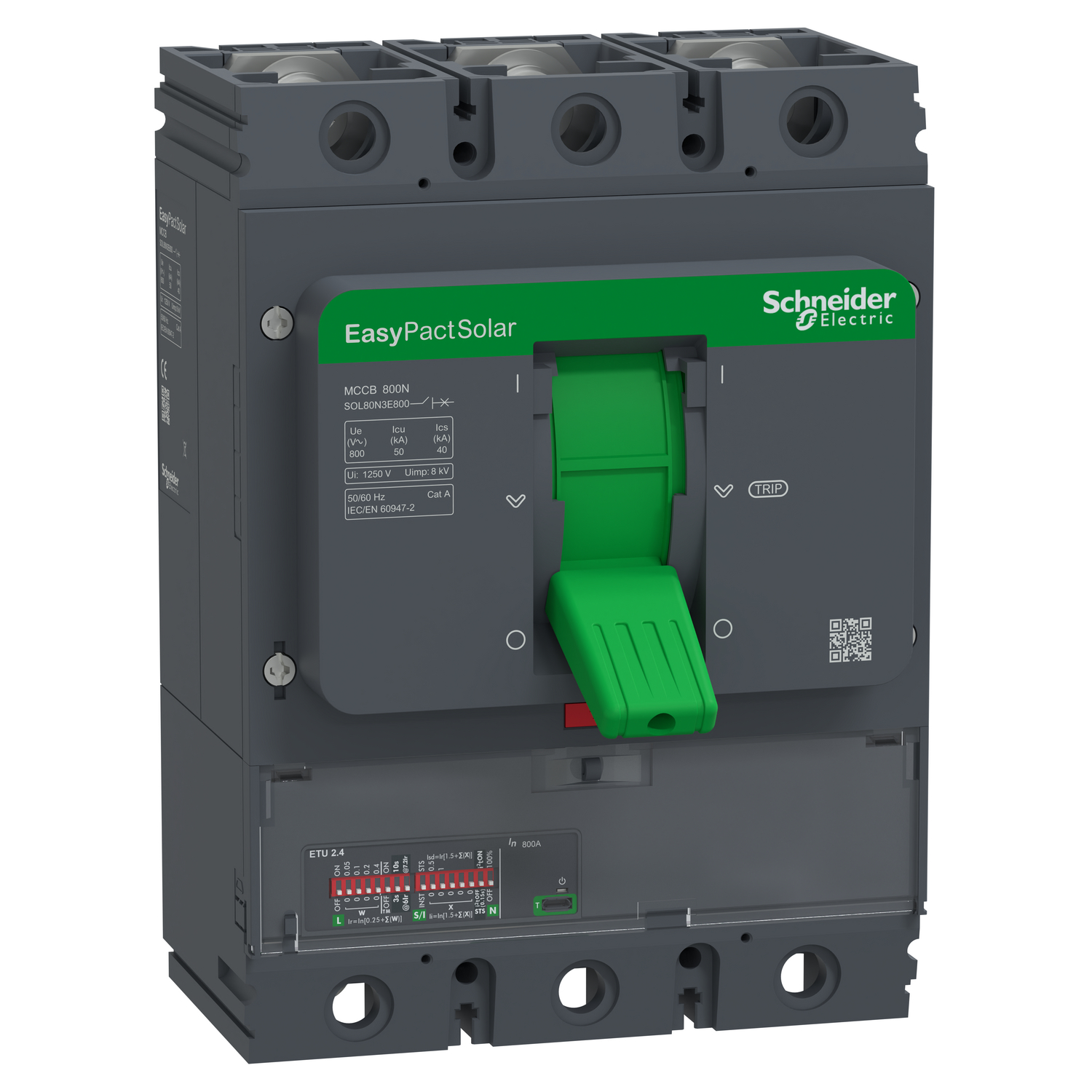

Schneider Electric SOL80N3E800: This product is part of the new EasyPact Solar MCCB range (Molded Case Circuit Breakers range). It is a complete 3 poles circuit breaker made of a 800A breaker frame and of an electronic trip unit (ETU). EasyPact Solar MCCB is designed for large and medium scale solar farm installations, compatible to work with different inverter configurations. The breaking capacity (Icu) is 50kA rms at 800VAC 50/60Hz. The operational voltage is 800VAC 50/60Hz. This product embeds a 800A rating (In) electronic trip unit (ETU). This ETU 2.4 electronic trip unit provides an adjustable long time protection Ir (against overloads) with a setting range from 0.25xIn to 1xIn. ETU 2.4 trip unit provides also an adjustable short time protection Isd (against short-circuits) with a setting range from 1.5xIr to 8xIr. ETU 2.4 trip unit embeds as well an adjustable instantaneous protection Ii (against short-circuits) with a setting range from 1.5xIn to 8xIn. EasyPact Solar MCCB comes with a variety of optional accessories simple to choose and to install. Product dimensions are 180mm (Width) x 250mm (Height) x 105mm (Depth). The weight is 6.3 kg. EasyPact Solar MCCB series comply with IEC 60947-1 and IEC 60947-2 standards. EasyPact Solar MCCB range benefits from Schneider Electric quality assurance.
