SOL40N3A400

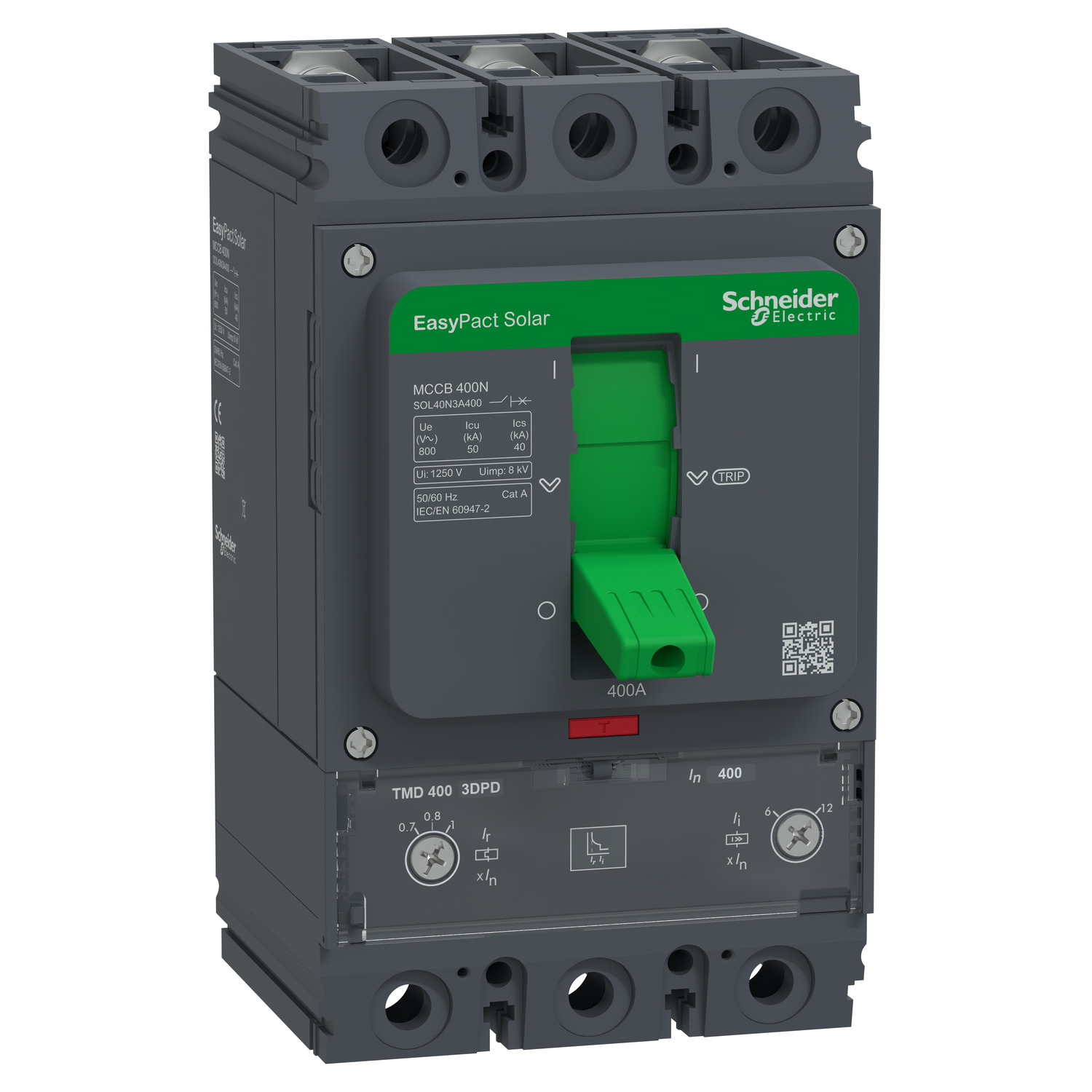

Schneider Electric SOL40N3A400: This product is part of the new EasyPact Solar MCCB range (Molded Case Circuit Breakers range). It is a complete 3 poles circuit breaker made of a 400A breaker frame and of a thermal magnetic trip unit (TMD). EasyPact Solar MCCB is designed for large and medium scale solar farm installations, compatible to work with different inverter configurations. The breaking capacity (Icu) is 50kA rms at 800VAC 50/60Hz. The operational voltage is 800VAC 50/60Hz. This product embeds a 400A rating (In) thermal-magnetic trip unit (TMD). This TMD trip unit provides an adjustable thermal protection Ir (against overloads) with a setting range from 0.7xIn to 1xIn. And it provides an adjustable magnetic protection (against short-circuits) with a setting range from 6xIn to 12xIn. EasyPact Solar MCCB comes with a variety of optional accessories simple to choose and to install. Product dimensions are 120mm (Width) x 205mm (Height) x 105mm (Depth). The weight is 3.4 kg. EasyPact Solar MCCB series comply with IEC 60947-1 and IEC 60947-2 standards. EasyPact Solar MCCB range benefits from Schneider Electric quality assurance.
