PFXSTM6B00DE

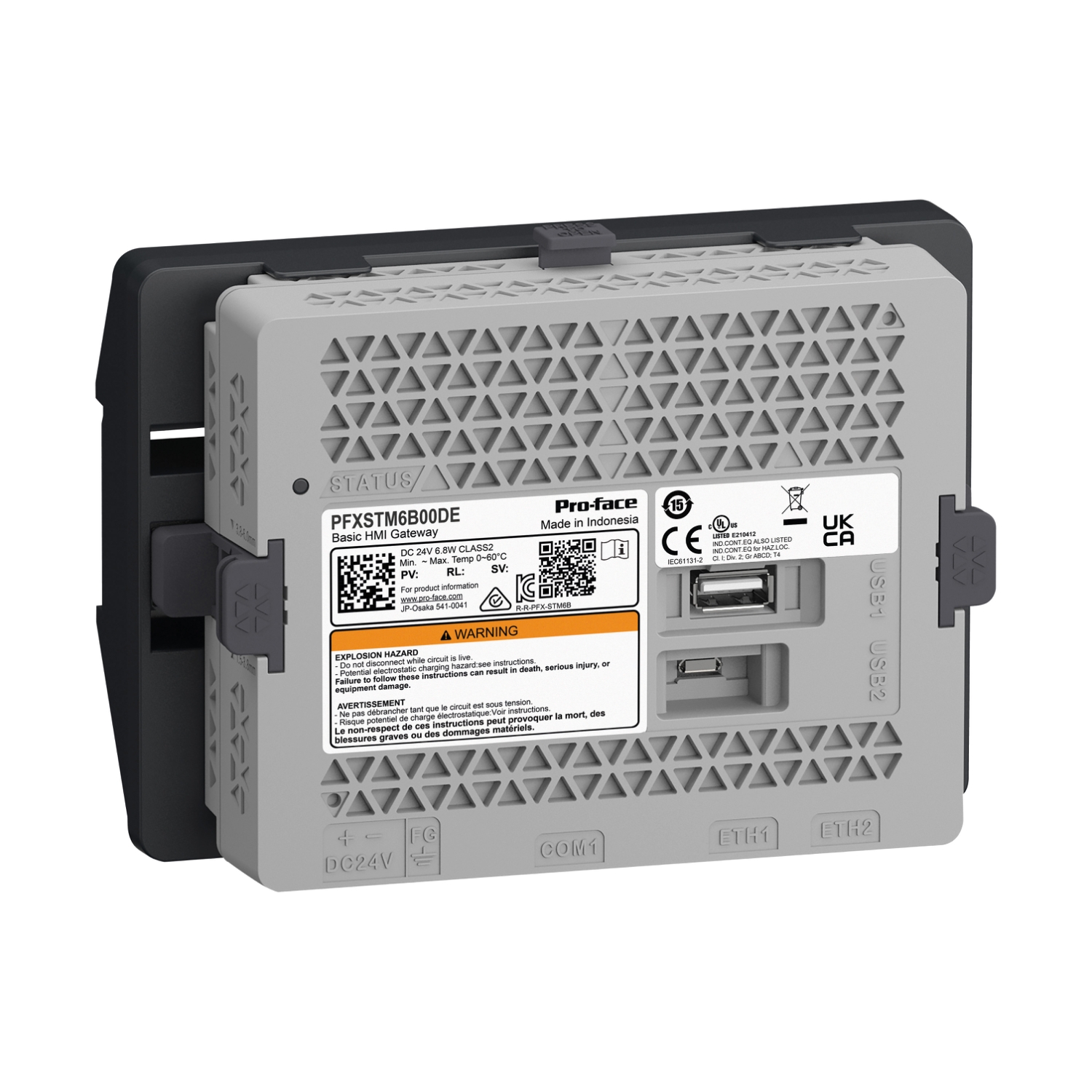

Schneider Electric PFXSTM6B00DE: Basic HMI Gateway, Proface STM6000, GP-ProEX, Box with adaptor for HMI, 1 COM, 2 Ethernet, 24V DC.

Manufacturer

Schneider Electric

Part number

PFXSTM6B00DE

Product family

Pro-face STM6000

Category

HMIs & Industrial PCs

Technical details

Range: Pro-face STM6000; Product or component type: Modular HMI box; [Us] rated supply voltage: 24 V DC (+/- 20 %); Integrated connection type: 1 COM1 serial link - SUB-D 9 - RS232C/RS422/RS485 (rate: 2400...115200 bps)bottom, 1 USB 2.0 type Aback, 1 USB 2.0 type micro Bback, 2 Ethernet - RJ45 - 10/100BASE-Tbottom; Memory description: 64 MB application memory, 320 kB backup memory; IP degree of protection: IP20 (rear panel) conforming to IEC 61131-2; Ambient air temperature for operation: 0…60 °C; Net weight: 0.456 kg; Processor name: ARM Cortex-A8 at 800 MHz; Software package: GP-Pro EX; Type of cooling: Natural convection; Inrush current: 30 A; Power consumption in W: 6.8 W; Realtime clock: Built-in 0...50 °C, Built-in 10...90 % RH; Official designation: Basic HMI Gateway, Proface STM6000, GP-ProEX, Box with adaptor for HMI, 1 COM, 2 Ethernet, 24V DC

Weight

0.456 kg

Dimensions

101 x 150.5 x 63.3
