PFXSTM6B00D

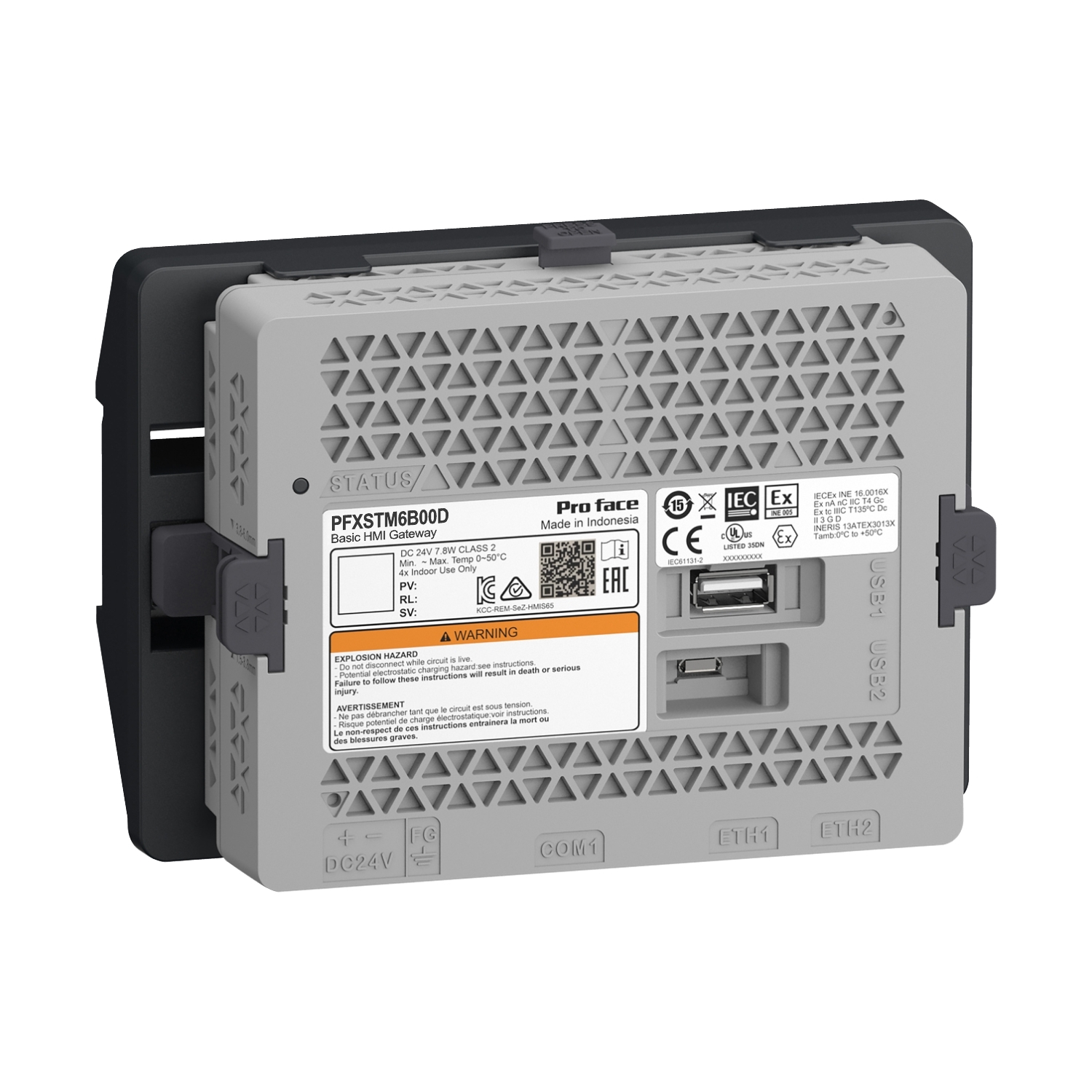

Schneider Electric PFXSTM6B00D: Basic HMI Gateway Box Proface STM6000 for Multi Converter application.

Manufacturer

Schneider Electric

Part number

PFXSTM6B00D

Product family

Pro-face STM6000

Category

HMIs & Industrial PCs

Technical details

Range: Pro-face STM6000; Product or component type: Modular HMI box; Integrated connection type: 2 Ethernet TCP/IP - RJ45, COM1 serial link - SUB-D 9 - RS232C/RS422/RS485 (rate: 2400...115200 bps), USB 2.0 port - micro B USB, display port - RJ45, 1 USB 2.0 port - USB type A; Memory description: 512 KB backup memory, 512 MB internal, 1 GB flash; Ambient air temperature for operation: 0…60 °C; Net weight: 0.456 kg; Processor name: ARM Cortex-A8; Software package: BLUE run time, Web viewer; Type of cooling: Natural convection; Realtime clock: Built-in; Width: 150.5 mm; Height: 101 mm; Depth: 63.3 mm; Product certifications: CE, UKCA, cULus, RCM, KC, EAC, cULus Class 1 Division 2, DNV, ABS, RINA, BV; Official designation: Basic HMI Gateway Box Proface STM6000 for Multi Converter application

Weight

0.456 kg

Dimensions

101 x 150.5 x 63.3

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
