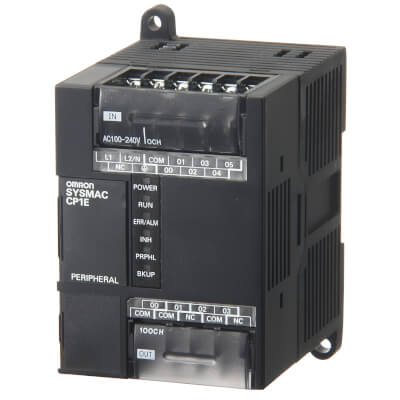

CP1E-E10DT-D

Omron CP1E-E10DT-D is a PLC. PLC, 24 VDC supply, 6 x 24 VDC inputs, 4 x NPN outputs 0.3 A, 2K steps program + 2K words data memory.

Manufacturer

Omron

Part number

CP1E-E10DT-D

Product family

CP1E

Category

PLCs & Controllers

Technical details

Supply voltage type: DC; Number of digital inputs: 6; Input type: PNP/NPN; Number of digital outputs: 4; Output type: NPN; Program capacity: 2 K steps; Data memory capacity: 2 K words; Logic execution time: 1.19 µs; Communication port(s): USB; Number of Ethernet ports: 0; Number of USB ports: 1; Number of RS-232 ports: 0; Number of RS-485 ports: 0; Communication option(s): None; Max. encoder input frequency: 10 kHz; Max. number of PTP axes: 0; Max. pulse output frequency: 0 kHz; Function Block programming: FALSE; Battery-free memory backup: FALSE; Real-time clock: FALSE; Analogue option boards: FALSE; Max. number of analogue I/O channels: 0; Max. number of local I/O points: 10; Max. number of expansion units: 0; Built-in auxiliary 24 VDC output: 0 mA; Operating temperature range: 0-55 °C; Product Height (unpacked): 90 mm; Product Width (unpacked): 66 mm; Product Depth (unpacked): 85 mm; Product Weight (unpacked): 300 g

Weight

0.3 kg

Dimensions

90 × 66 × 85 (H × W × D)
