BCH2MR3023CA6C

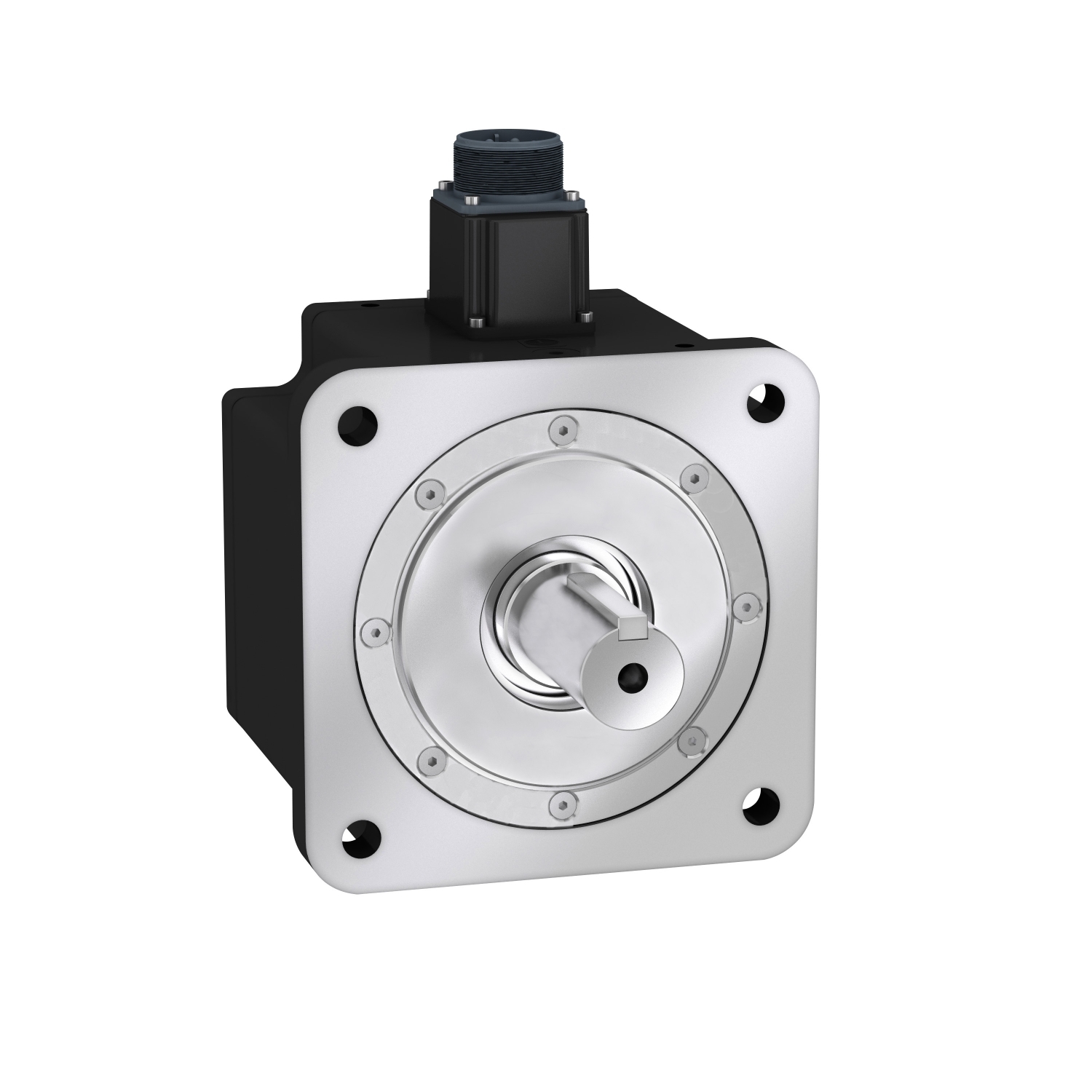

Schneider Electric BCH2MR3023CA6C is a servo motor BCH; Lexium 28; 180mm; 3000W; 53.56kg.cm²; with oil seal; with key; straight connection. This product is part of the Lexium 28 range, an offer of servo motors from 0.05kW to 4.5kW. The servo motor features maximum mechanical speed of 3000RPM and keyed shaft end without holding brake.

Manufacturer

Schneider Electric

Part number

BCH2MR3023CA6C

Product family

Lexium 28

Category

Servo Motors

Technical details

The servo motor features maximum mechanical speed of 3000RPM and keyed shaft end without holding brake; It is an equipped with a 20bit single-turn absolute encoder; It is a second generation servo motor with a rated supply voltage of 220V, a continuous stall current of 16.33A and a continuous power of 3000W; The shaft dimensions are 35mm (diameter) x 79mm (length); It is furnished with MIL connector for electrical connection; It is an IP50 and IP65 rated product; The length of this product is 202mm and the centering collar dimensions are 4mm (depth) x 114.3mm (diameter) with 200mm mounting hole

Weight

18.5 kg

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
