BCH2LD0433CF5C

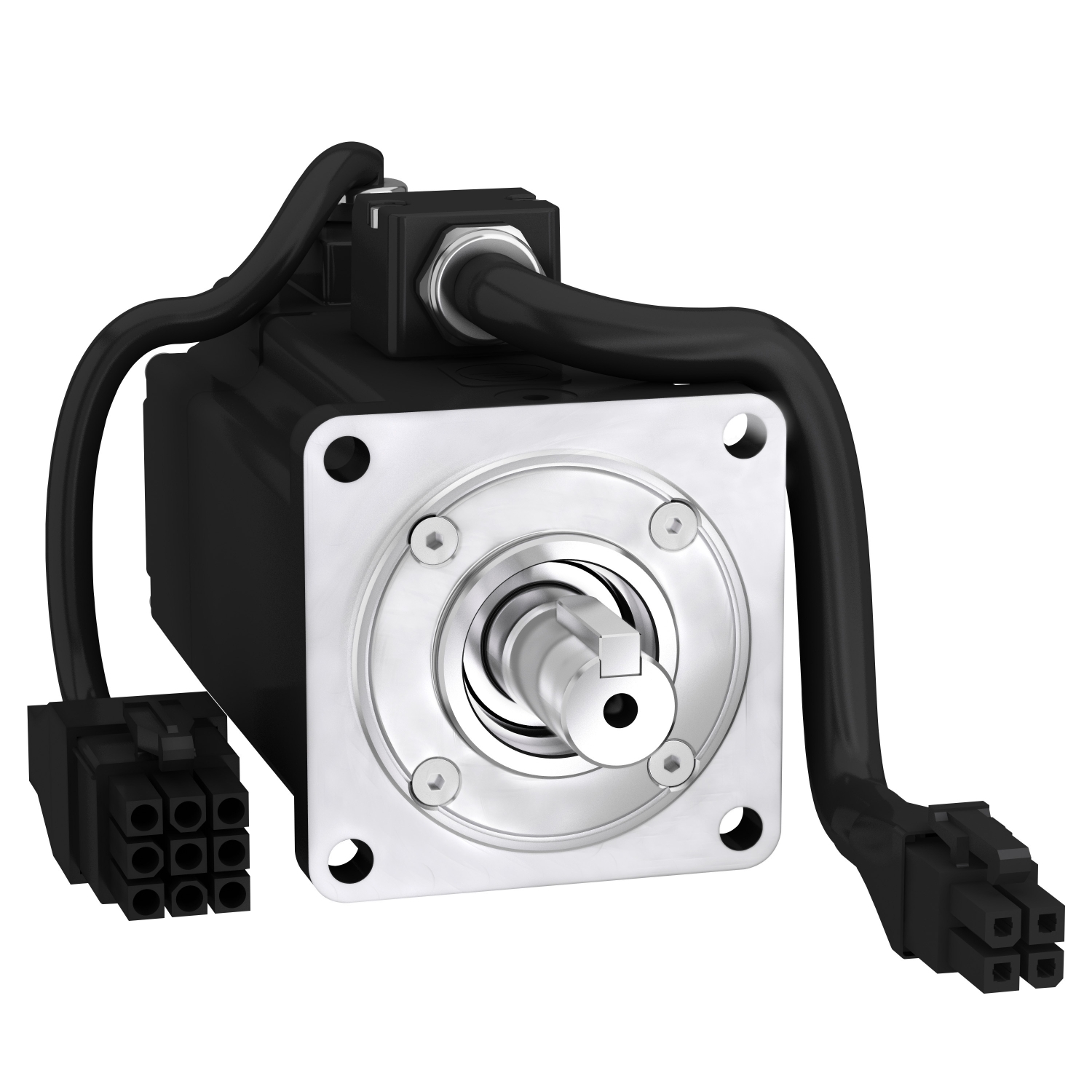

Schneider Electric BCH2LD0433CF5C is a servo motor BCH; Lexium 28; 60mm; 400W; 0.28kg.cm²; with oil seal; with key; brake; leads connection. This product is part of the Lexium 28 range, an offer of motion servo drives for machines from 0.05 to 4.5kW. The brushless servo motor features a high moment of inertia with maximum mechanical speed of 5000RPM, IP65 parallel keyed shaft and holding brake.

Manufacturer

Schneider Electric

Part number

BCH2LD0433CF5C

Product family

Lexium 28

Category

Servo Motors

Technical details

The brushless servo motor features a high moment of inertia with maximum mechanical speed of 5000RPM, IP65 parallel keyed shaft and holding brake; It is equipped with a 20bit single-turn absolute encoder, optimized in terms of speed of rotation (3000RPM); It has a rated supply voltage of 220V, a continuous stall current of 2.19A and a continuous power of 400W; The shaft dimensions are 14mm (Diameter) x 30mm (Length); It is an IP50 (IM V3) and IP65 (IM B5, IM V1) rated product; Its dimensions are 165mm (Length) x 60mm (Width), centring collar dimensions are 5.5mm (Depth) x 50mm (Diameter) with 70mm circle diameter of the mounting hole; It weighs 2kg

Weight

2 kg
