BCH2MM0913CA6C

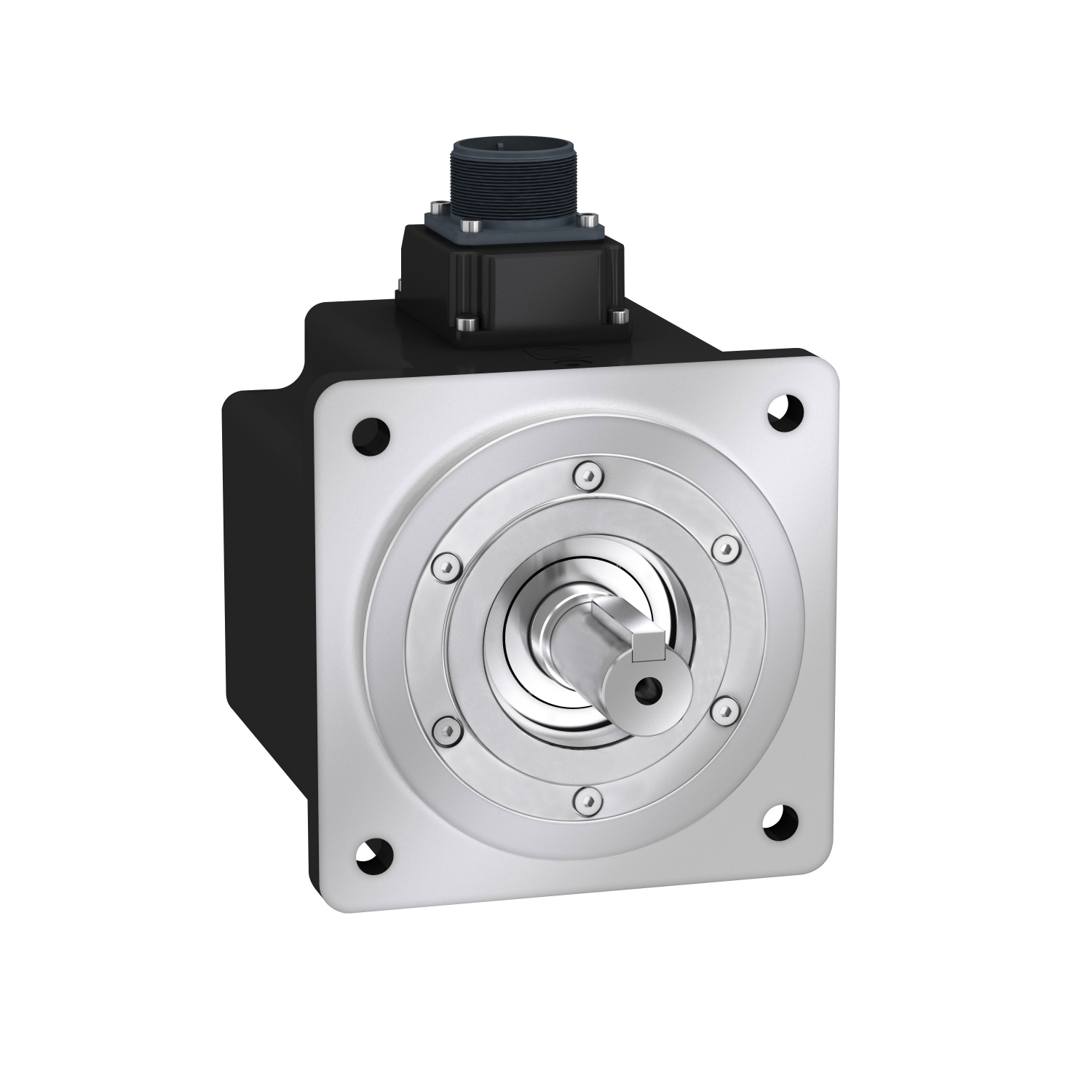

Schneider Electric BCH2MM0913CA6C is a servo motor BCH; Lexium 28; 130mm; 900W; 9.7kg.cm²; with oil seal; with key; straight connection. This product is part of the Lexium 28 range, an offer of servo motors from 0.05kW to 4.5kW. The servo motor features maximum mechanical speed of 3000RPM and keyed shaft end without holding brake.

Manufacturer

Schneider Electric

Part number

BCH2MM0913CA6C

Product family

Lexium 28

Category

Servo Motors

Technical details

The servo motor features maximum mechanical speed of 3000RPM and keyed shaft end without holding brake; It is an equipped with a 20bit single-turn absolute encoder; It is a second generation servo motor with a rated supply voltage of 220V, a continuous stall current of 5.64A and a continuous power of 900W; The shaft dimensions are 22mm (diameter) x 55mm (length); It is furnished with MIL connector for electrical connection; It is an IP50 and IP65 rated product; The length of this product is 163mm and the centering collar dimensions are 8mm (depth) x 110mm (diameter) with 145mm mounting hole

Weight

7.6 kg
