BCH2MBA533CA5C

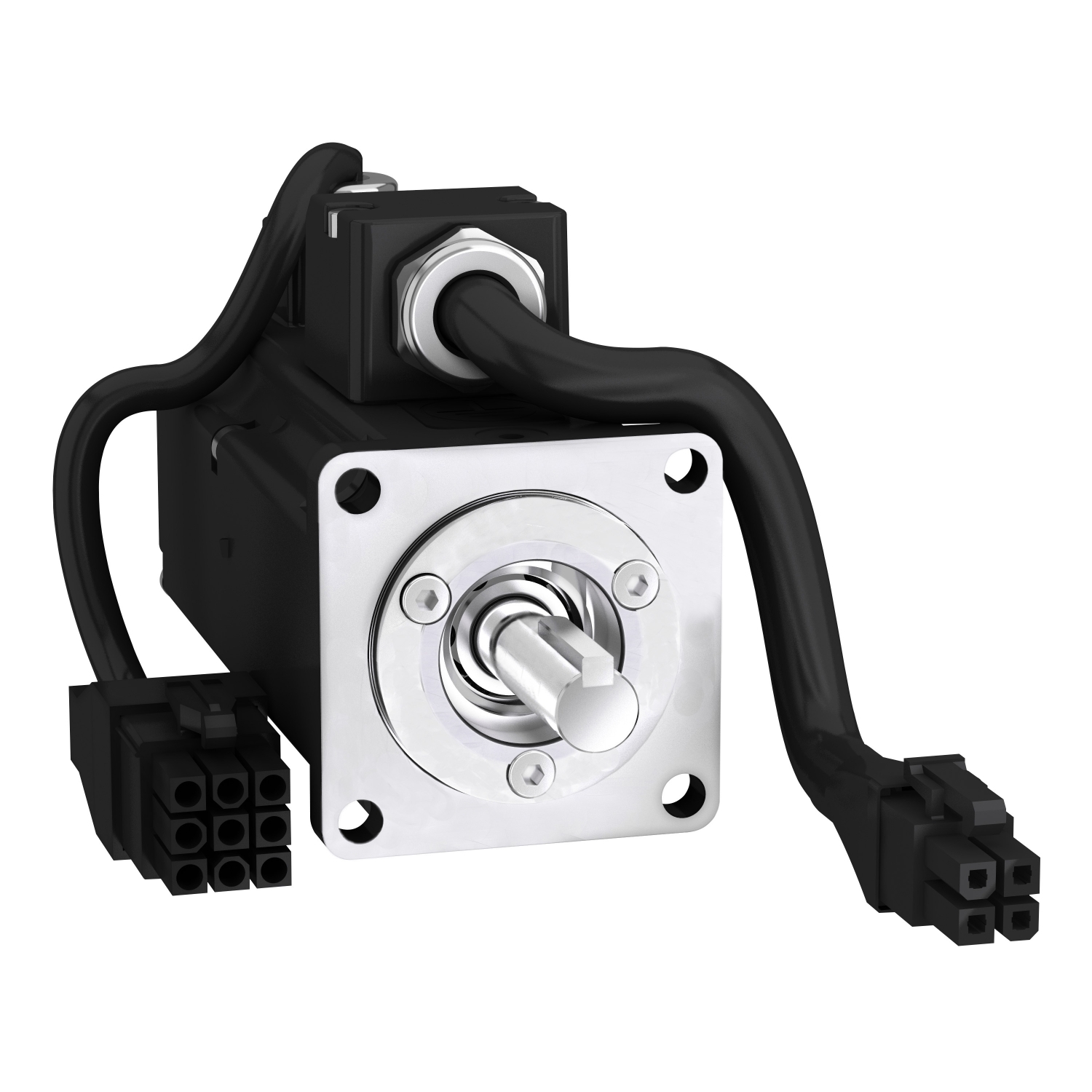

Schneider Electric BCH2MBA533CA5C is a servo motor BCH, Lexium 28, 40mm, 50W, 0.054kg.cm², with oil seal, with key, leads connection. This product is part of the Lexium 28 range, an offer of servo drives from 0.05kW to 4.5kW and associated servo motors. "This servo motor has a maximum mechanical speed of 5000RPM, a continuous stall torque of 0.16Nm, a keyed shaft end and no holding brake. "It is equipped with a 20 bits single turn absolute encoder. "It is a servo motor with a rated supply voltage of 220V, a continuous stall current of 0.54A and a continuous power of 50W. "The shaft dimensions are 8mm (diameter)…

Manufacturer

Schneider Electric

Part number

BCH2MBA533CA5C

Product family

Lexium 28

Category

Servo Motors

Technical details

Lexium 28; 40mm; 50W; 0.054kg.cm²; It is an IP65 rated product (shaft and housing). "It measures 80mm long without holding break, 112mm long with holding break, 55mm high, and its flange size is 40mm

Weight

0.4 kg

Dimensions

55 × 80
