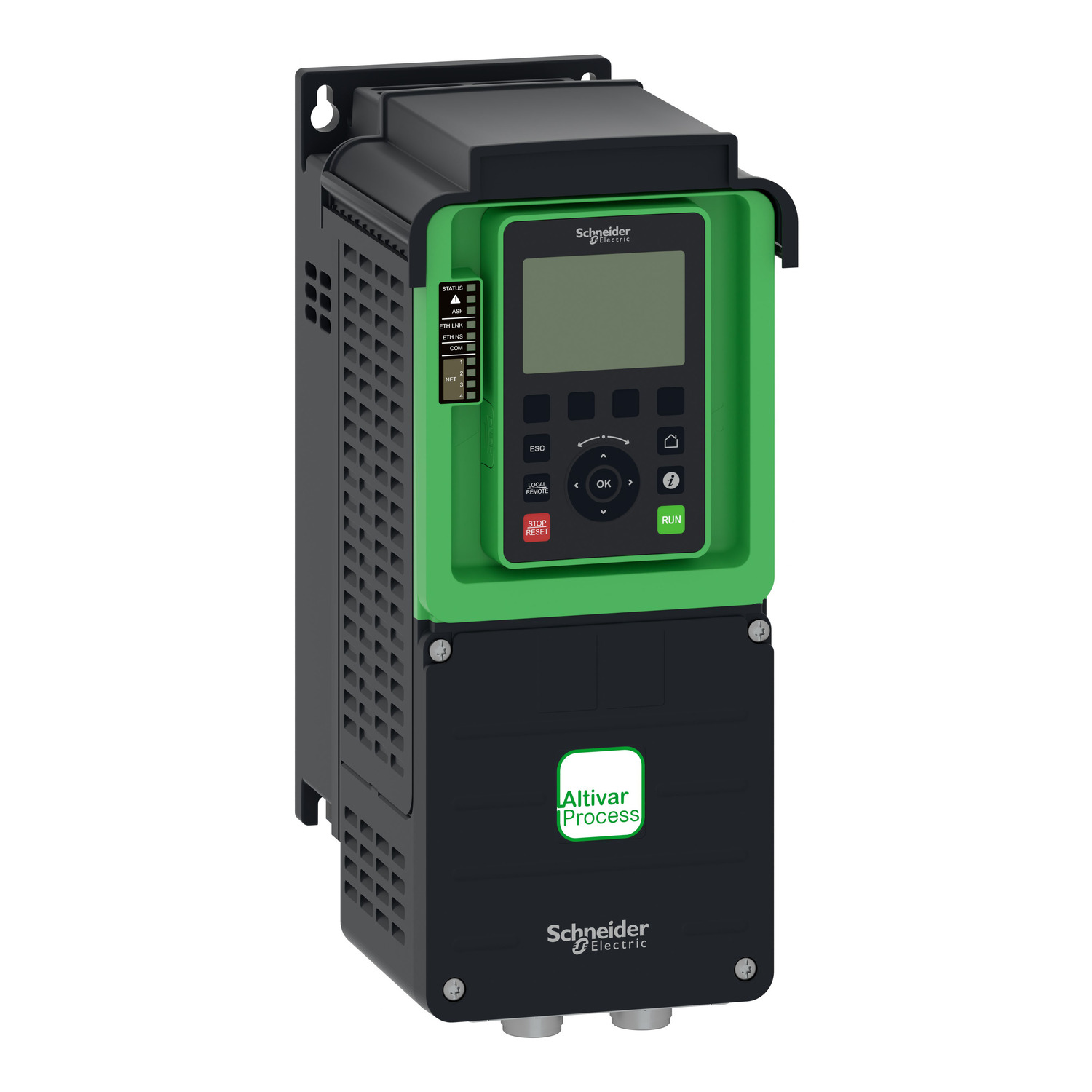

ATV630U30N4

Schneider Electric ATV630U30N4 is a variable speed drive ATV630 - 3kW - 380...480 V - IP21/UL type 1. This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports.

Manufacturer

Schneider Electric

Part number

ATV630U30N4

Product family

Altivar Process ATV600

Category

Variable Frequency Drives

Technical details

This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors; It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports; It works at a rated supply voltage from 380V to 480V AC; It is suitable for motors with power rating up to 3kW for applications requiring slight overload (up to 120%); It is suitable for motors with power rating up to 2.2kW / 3hp for applications requiring significant overload (up to 150%); It weighs 4.6kg and its dimensions are, 144mm wide, 350mm high, 203mm deep; Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating

Weight

4.6 kg

Dimensions

144 × 350 × 203
