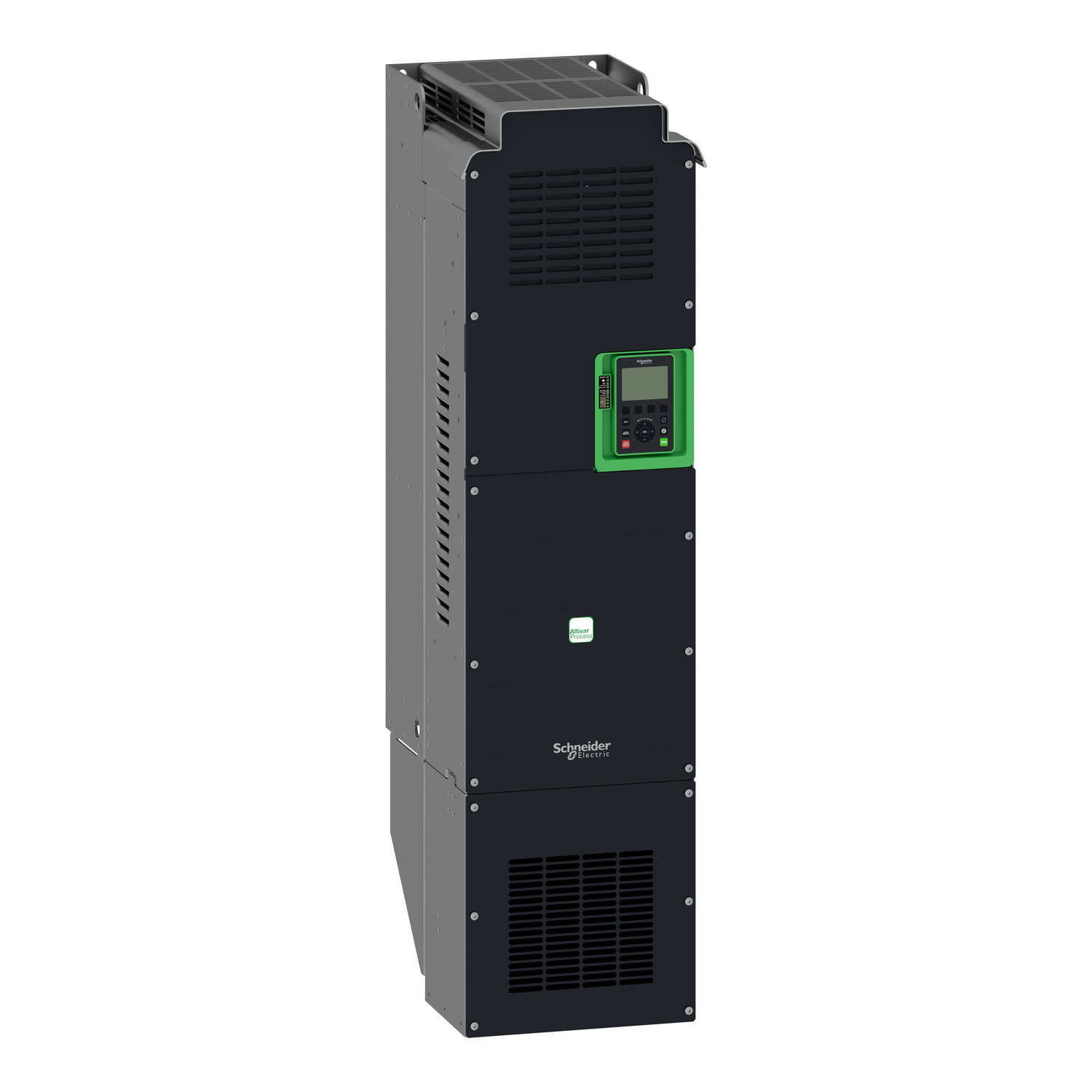

ATV630C13N4

Schneider Electric ATV630C13N4 is a variable speed drive ATV630 - 130kW - 380...480 V - IP00. This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports.

Manufacturer

Schneider Electric

Part number

ATV630C13N4

Product family

Altivar Process ATV600

Category

Variable Frequency Drives

Technical details

This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors; It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports; It works at a rated supply voltage from 380V to 480V AC; It is suitable for motors with power rating up to 132kW / 200hp for applications requiring slight overload (up to 120%); It is suitable for motors with power rating up to 110kW / 150hp for applications requiring significant overload (up to 150%); It weighs 82kg and its dimensions are, 320mm wide, 852mm high, 390mm deep; Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating

Weight

82 kg

Dimensions

320 × 852 × 390
