ABE7S16E2B1

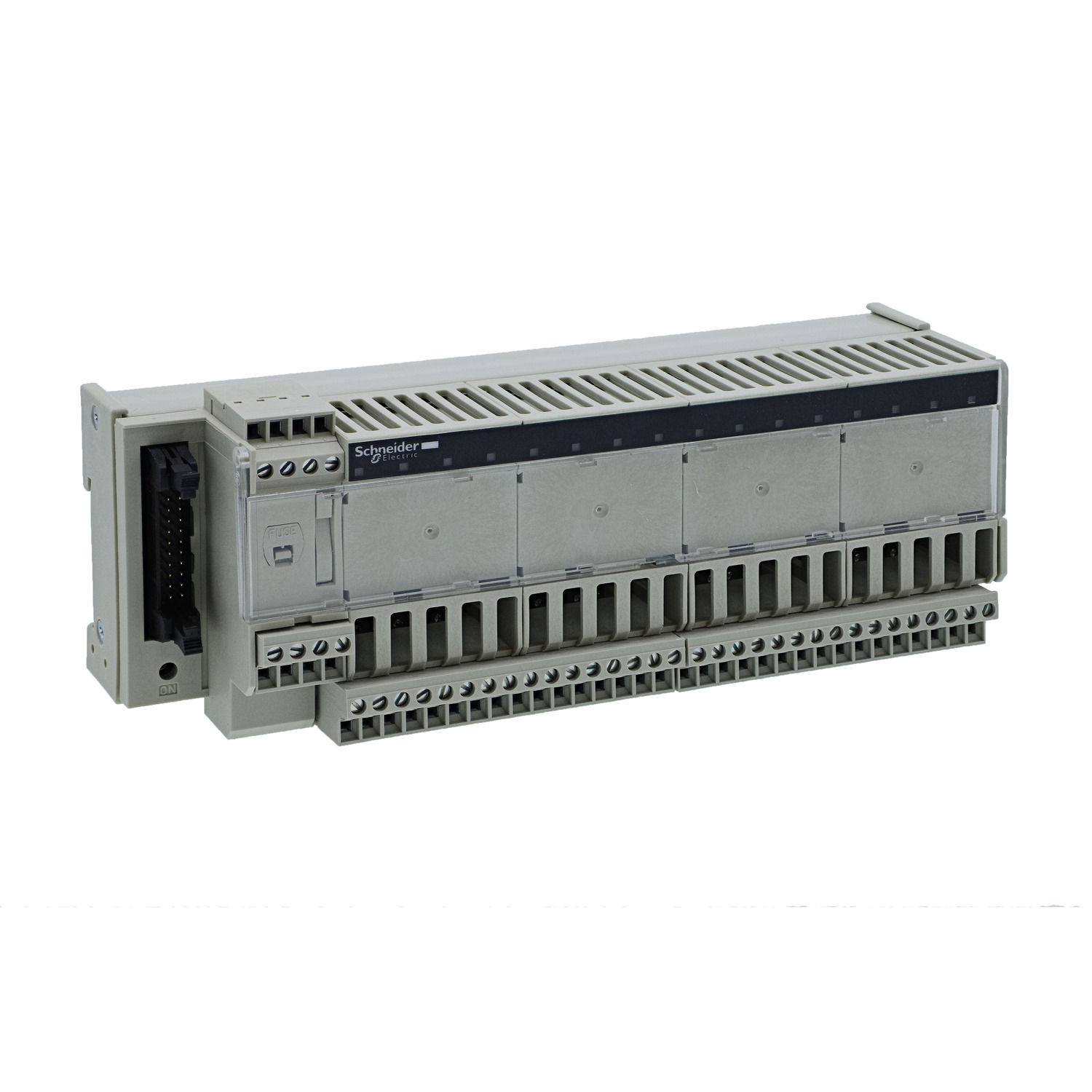

Schneider Electric ABE7S16E2B1 is a sub-base - soldered solid state output relay ABE7 - 16 inputs - 24 V DC. This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. The sub-base with soldered solid state output relay, provides 16 channels.

Manufacturer

Schneider Electric

Part number

ABE7S16E2B1

Product family

Modicon ABE7

Category

Relays and Accessories

Technical details

It has 2 terminals per channel; It is a relay sub base with a supply voltage of 19V to 30V DC and a current of 0.012A per channel; It is an IP2x rated product; It weighs 0.37kg; The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit); Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment; Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors

Weight

0.37 kg
