ABE7P16T230

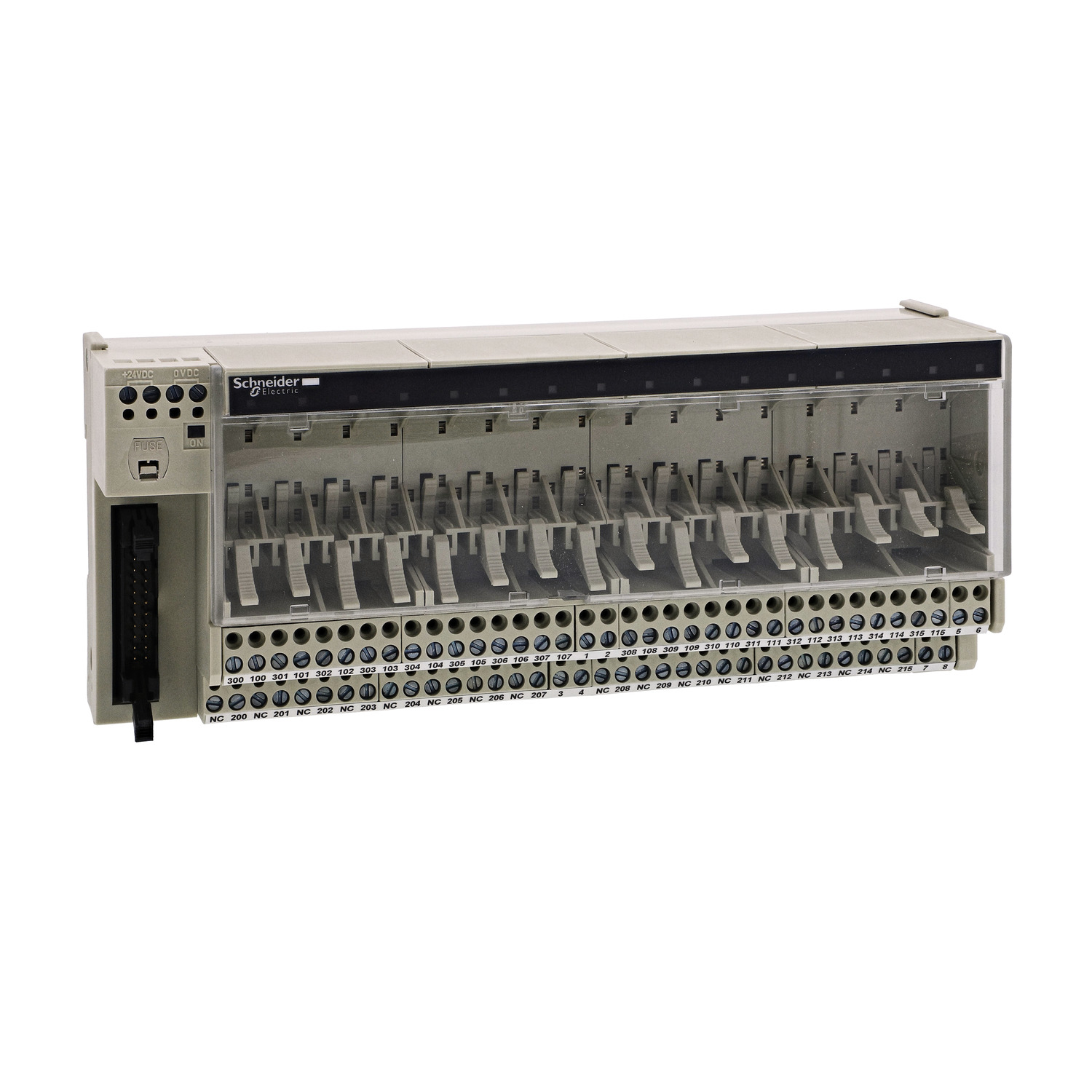

Schneider Electric ABE7P16T230 is a sub-base for plug-in relay ABE7 - 16 channels - relay 10 mm. This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system. "This is a sub-base with plug-in relays (relay size 10mm) for 16 channels, with integral NO or C/O contact, with 2 terminals per channel. "Its control circuit voltage is 24VDC. "It makes use of the sub-base functions to connect the channel without the need to adapt the channel using a relay. "It is furnished with screw terminal for electrical connection, with a 20-way HE10 connector, without relays. "It can accept…

Manufacturer

Schneider Electric

Part number

ABE7P16T230

Product family

Modicon ABE7

Category

Relays and Accessories

Technical details

The tightening torque of wiring is 0.6N.m with flat diameter 3.5mm screwdriver. "It is a plug-in relay sub-base with IP20 degree of protection; Plug-in relays (size 10mm) are to order separately. "Its fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). "Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment

Weight

0.655 kg
