A9MEM2455

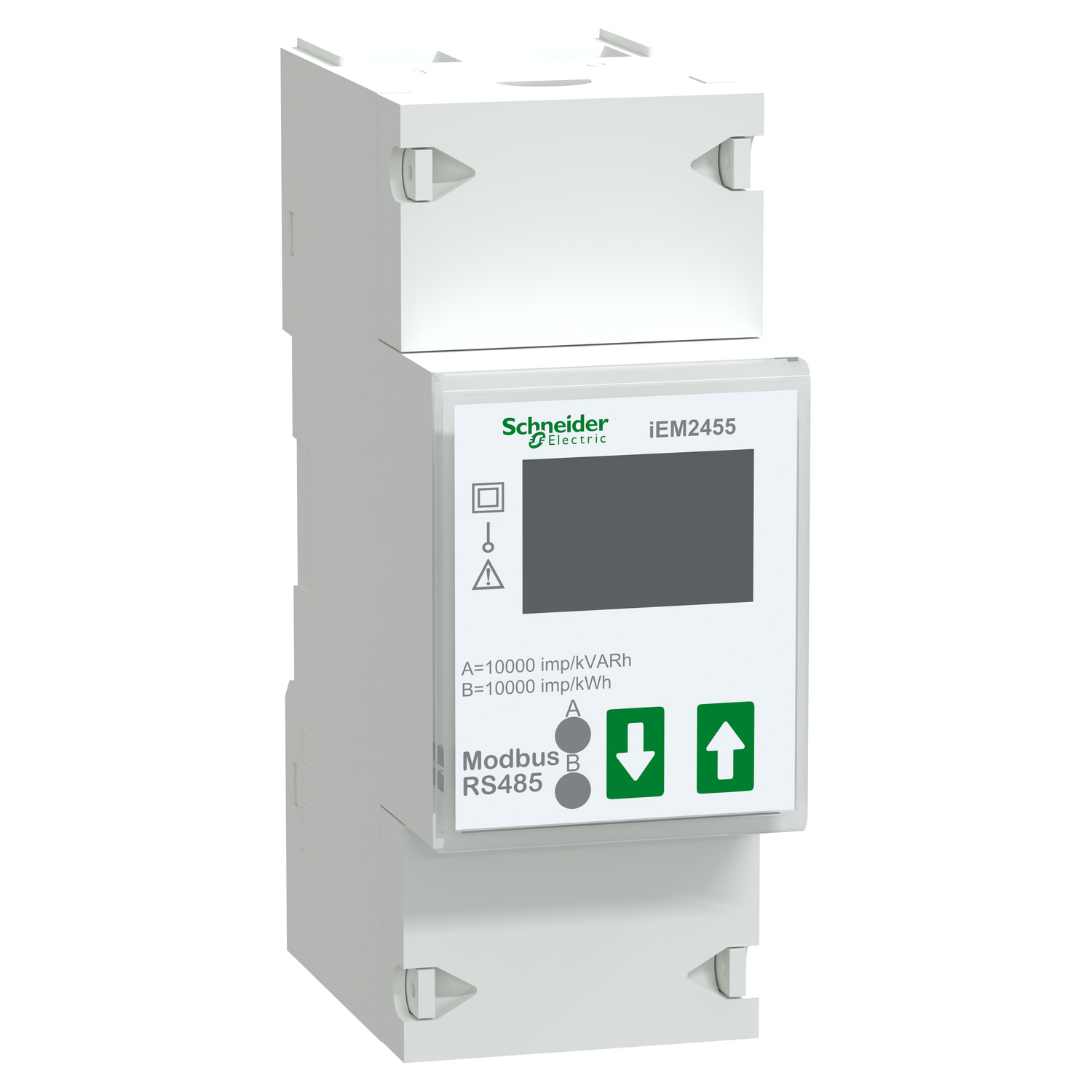

Schneider Electric A9MEM2455 is a modular single phase power meter iEM2455 - 230 V - 100A with communication Modbus. The Acti9 iEM2400 series energy meters offer is a single-phase DIN rail-mounted energy meters fitted for basic metering. This product family can be used to monitor power consumption for each sector, unit or workshop and manage electrical installation for building management.

Manufacturer

Schneider Electric

Part number

A9MEM2455

Product family

Acti9 iEM2400

Category

Energy Monitoring

Technical details

The Acti9 iEM2400 series energy meters offer is a single-phase DIN rail-mounted energy meters fitted for basic metering; It feature a 7-characters/digits display and red LED indicator to display measured electrical parameters; Providing Class 1 active energy accuracy per IEC 62053-21 standard, the meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current; Suitable for a 230VAC network, with a supply voltage range of 96 to 276 VAC at 50Hz or 60Hz; Direct connect current measurement up to 100A with 32 samples per cycle only in a Single Phase and Neutral configuration; Communication protocol is RS485 Modbus with 2-wire terminal support, no additional communication ports; You will have the possibility to switch between 2 tariffs via the communication bus

Weight

0.22 kg

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
