51207

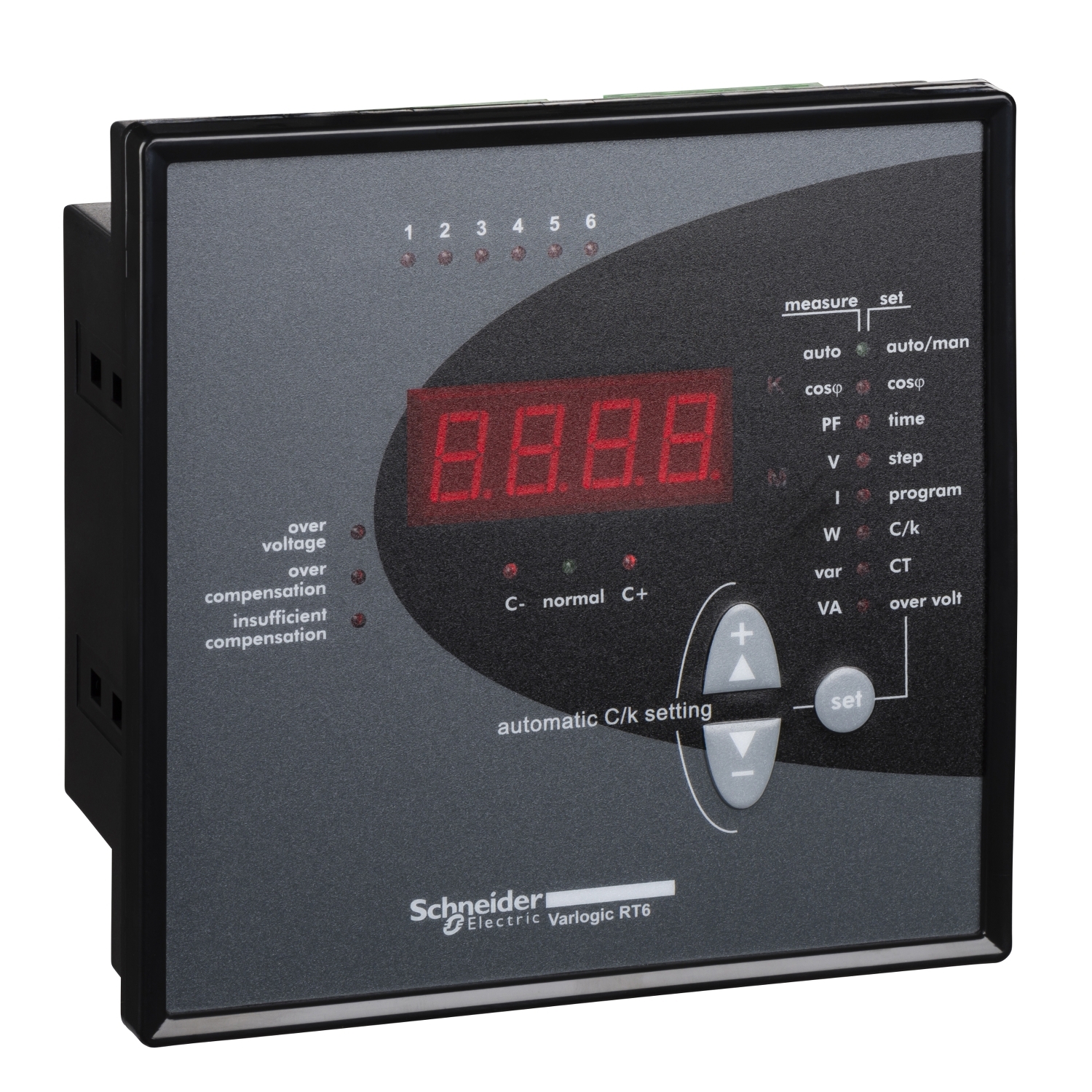

Schneider Electric 51207 is a varmeter EasyLogic PFC Controller RT6. The Varlogic controllers permanently monitor the reactive power of the installation. This device also control the connection and disconnection of capacitor steps in order to obtain the targeted power factor.

Manufacturer

Schneider Electric

Part number

51207

Product family

51207

Category

Energy Monitoring

Technical details

In case of overvoltage, low power factor or over compensation an alarm relay will activate; The user can parameter the power factor from 0.85 induct to 1; This version include 6 step output contacts for a range of compensations; Output contacts are calibrated for 3 amps load at 250 V or 1 amp load at 400 V; The power supply allow voltage input from 320 to 460 V The dimensions of the controller are 143 mm in width, 143 mm in height, 67 mm in depth for a product weight of 800 g; Cerified for Electromagnetic Compatibility with IEC 61326, IEC 61000-6-2 and IEC 61000-6-4; A 139 mm by 139 mm swithcboard cut-out will be necessary for the flush panel mounting

Weight

0.8 kg

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
