6072875

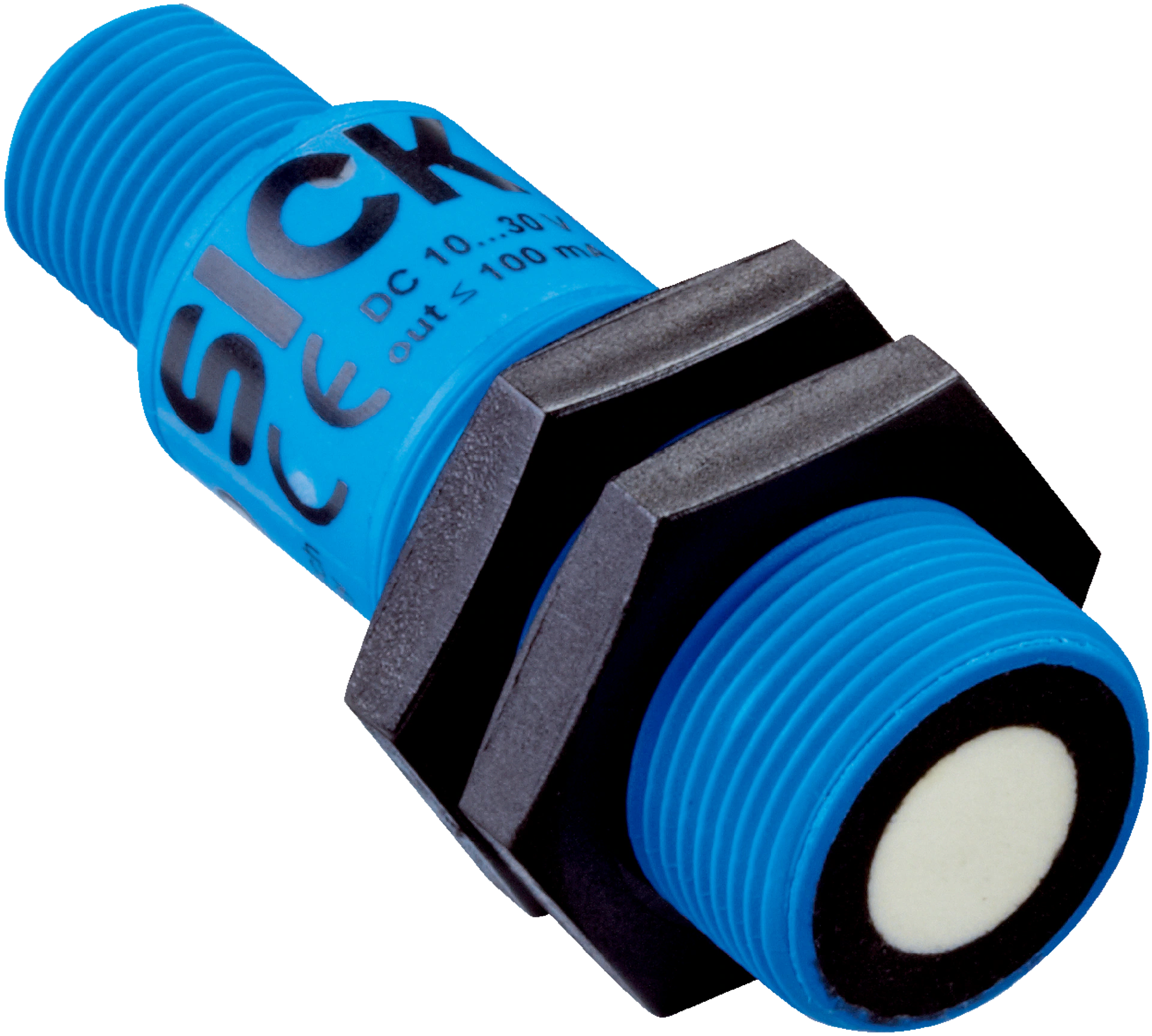

SICK 6072875 / UM18-211166101 is an ultrasonic distance sensor in the UM18 family. Communication interface: -; Operating range, limiting range: 30 mm... 250 mm, 350 mm; Connection type: Male connector, M12, 4-pin; Sending axis: Straight; Response time: 32 ms; Type of analog output: Current output.

Manufacturer

Sick

Part number

6072875

Product family

UM18

Category

Ultrasonic distance sensors

Technical details

Operating range, limiting range: 30 mm... 250 mm, 350 mm; Resolution: ≥ 0.2 mm; Supply voltage UB: DC 10 V... 30 V; Repeatability: ± 0.15 %; Measurement accuracy: ± 1 %; Response time: 32 ms; Dimensions (W x H x D): 18 mm x 15 mm x 57.3 mm; Connection type: Male connector, M12, 4-pin; Enclosure rating: IP65 / IP67; Housing material: Plastic (PBT, ultrasonic transducer: polyurethane foam, glass epoxy resin); Weight: 15 g; Output time: 8 ms; Ultrasonic frequency (typical): 320 kHz; Detection area (typical): See diagrams

Weight

0.015 kg

Dimensions

18 x 15 x 57.3
