6048394

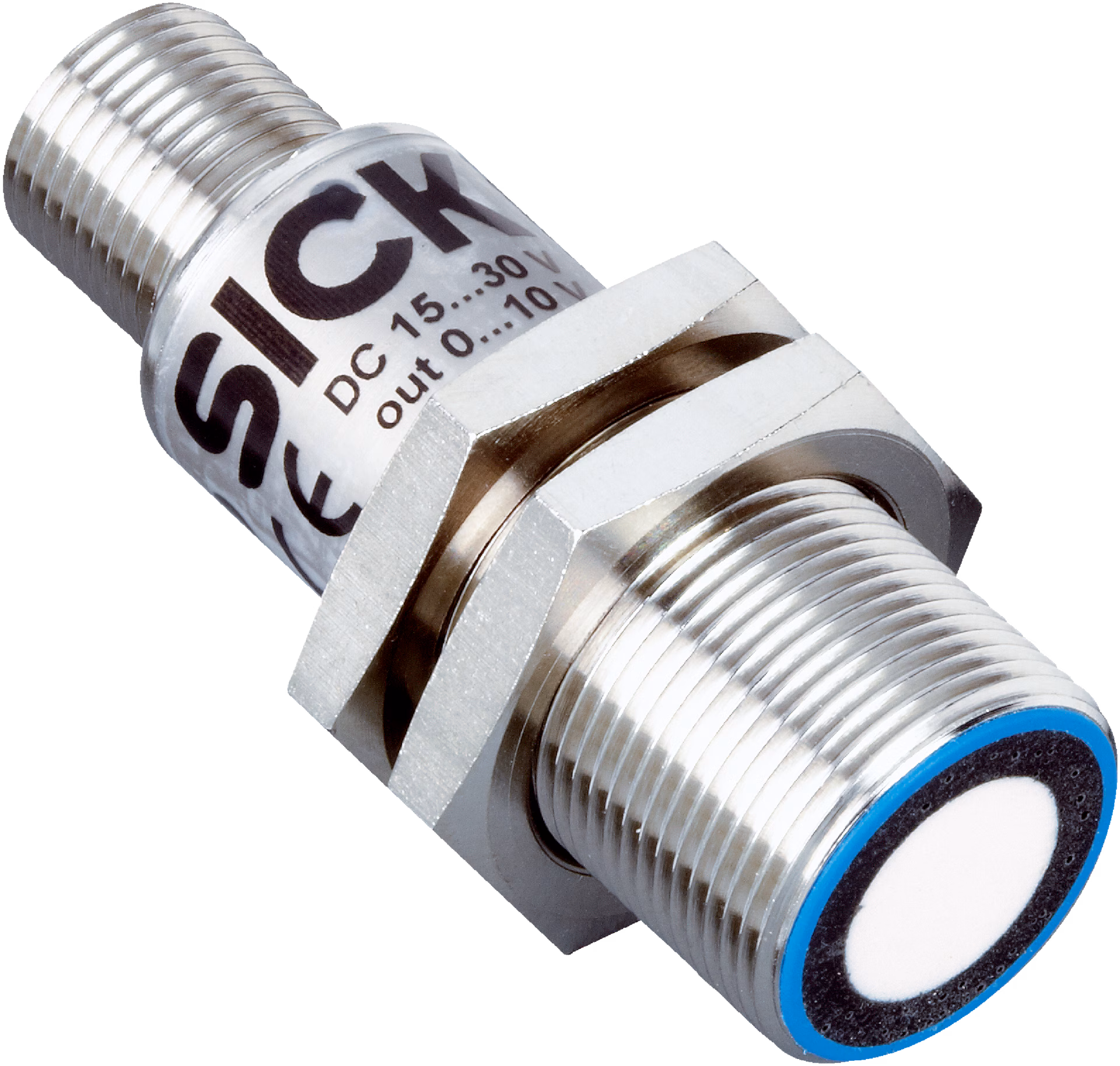

SICK 6048394 / UM18-211127111 is an ultrasonic distance sensor in the UM18 family. Communication interface: -; Operating range, limiting range: 30 mm... 250 mm, 350 mm; Connection type: Male connector, M12, 5-pin; Sending axis: Straight; Response time: 32 ms; Type of analog output: Voltage output.

Manufacturer

Sick

Part number

6048394

Product family

UM18

Category

Ultrasonic distance sensors

Technical details

Operating range, limiting range: 30 mm... 250 mm, 350 mm; Resolution: ≥ 0.069 mm; Supply voltage UB: DC 15 V... 30 V; Repeatability: ± 0.15 %; Measurement accuracy: ± 1 %; Response time: 32 ms; Dimensions (W x H x D): 18 mm x 18 mm x 52.7 mm; Connection type: Male connector, M12, 5-pin; Enclosure rating: IP65 / IP67; Housing material: Metal (nickel-plated brass, ultrasonic transducer: polyurethane foam, glass epoxy resin); Weight: 25 g; Temperature compensation: ✔; Output time: 8 ms; Ultrasonic frequency (typical): 320 kHz

Weight

0.025 kg

Dimensions

18 x 18 x 52.7

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
