6068453

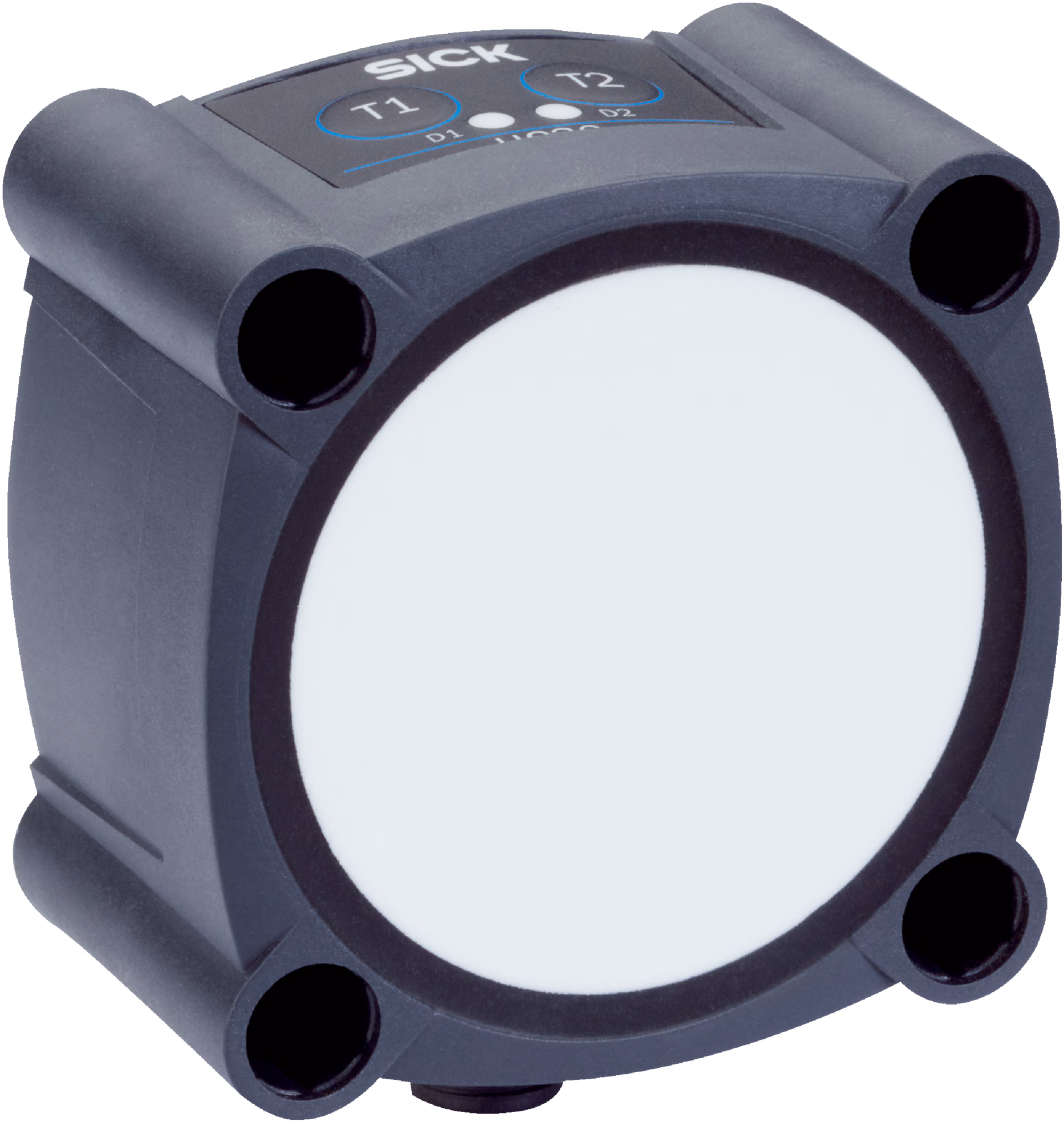

SICK 6068453 / UC30-21516B is an ultrasonic distance sensor in the UC30 family. Communication interface: IO-Link; Operating range, limiting range: 600 mm... 6,000 mm, 8,000 mm; Connection type: Male connector, M12, 5-pin; Sending axis: Straight; Response time: 240 ms; Digital output: 1 x push-pull: PNP/NPN; Communication Interface detail: IO-Link V1.1.

Manufacturer

Sick

Part number

6068453

Product family

UC30

Category

Ultrasonic distance sensors

Technical details

Operating range, limiting range: 600 mm... 6,000 mm, 8,000 mm; Resolution: ≥ 0.18 mm; Supply voltage UB: DC 9 V... 30 V; Repeatability: ± 0.15 %; Measurement accuracy: ± 1 %; Response time: 240 ms; Dimensions (W x H x D): 62 mm x 62 mm x 37.2 mm; 62 mm x 62 mm x 36.7 mm; Connection type: Male connector, M12, 5-pin; Enclosure rating: IP65 / IP67; Housing material: Plastic (PBT/PET, ultrasonic transducer: polyurethane foam, glass epoxy resin); Weight: 240 g; Temperature compensation: ✔; Switching frequency: 3 Hz; Output time: 60 ms

Weight

0.24 kg

Dimensions

62 x 62 x 37.2; 62 x 62 x 36.7
