6034667

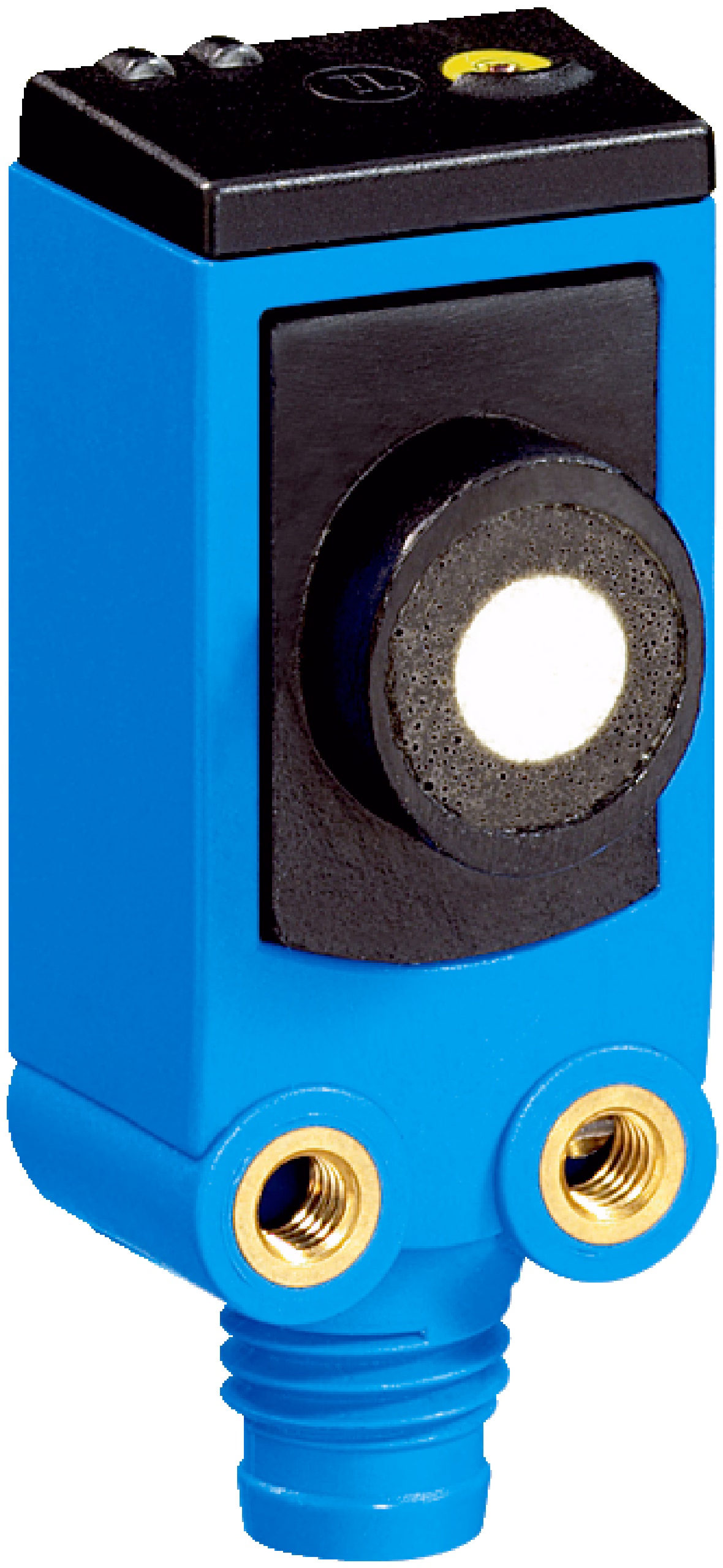

SICK 6034667 / UC4-11341 is an ultrasonic distance sensor in the UC4 family. Communication interface: -; Operating range, limiting range: 13 mm... 100 mm, 150 mm; Connection type: Male connector, M8, 3-pin; Sending axis: Straight; Response time: 24 ms; Digital output: 1 x PNP.

Manufacturer

Sick

Part number

6034667

Product family

UC4

Category

Ultrasonic distance sensors

Technical details

Operating range, limiting range: 13 mm... 100 mm, 150 mm; Resolution: ≥ 0.1 mm; Supply voltage UB: DC 15 V... 30 V; Repeatability: ± 0.15 %; Measurement accuracy: ± 1 %; Response time: 24 ms; Dimensions (W x H x D): 16 mm x 40.1 mm x 16.7 mm; Connection type: Male connector, M8, 3-pin; Enclosure rating: IP65 / IP67; Housing material: Plastic (ABS, ultrasonic transducer: polyurethane foam, glass epoxy resin); Weight: 10 g; Target: Natural objects; Switching frequency: 30 Hz; Output time: 8 ms

Weight

0.01 kg

Dimensions

16 x 40.1 x 16.7
