6066177

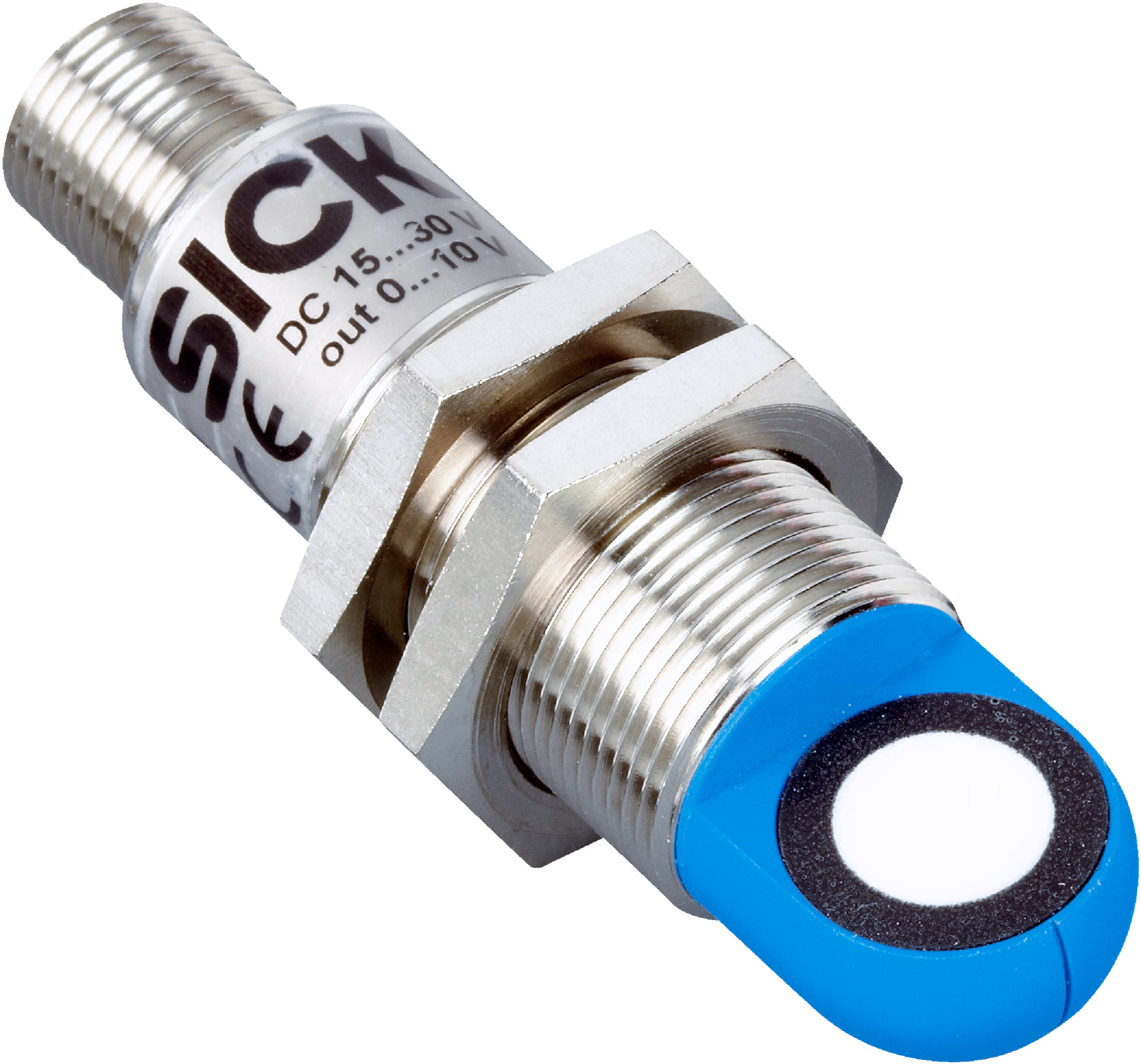

SICK 6066177 / UM18-21212C212 is an ultrasonic distance sensor in the UM18 family. Communication interface: IO-Link; Operating range, limiting range: 65 mm... 350 mm, 600 mm; Connection type: Male connector, M12, 5-pin; Sending axis: Angled; Response time: 64 ms; Digital output: 1 x push-pull: PNP/NPN; Type of analog output: Current output; Communication Interface detail: IO-Link V1.1.

Manufacturer

Sick

Part number

6066177

Product family

UM18

Category

Ultrasonic distance sensors

Technical details

Operating range, limiting range: 65 mm... 350 mm, 600 mm; Resolution: ≥ 0.069 mm; Supply voltage UB: DC 10 V... 30 V; Repeatability: ± 0.15 %; Measurement accuracy: ± 1 %; Response time: 64 ms; Dimensions (W x H x D): 18 mm x 18 mm x 68.7 mm; Connection type: Male connector, M12, 5-pin; Enclosure rating: IP65 / IP67; Housing material: Metal (nickel-plated brass, ultrasonic transducer: polyurethane foam, glass epoxy resin); Weight: 30 g; Temperature compensation: ✔; Switching frequency: 12 Hz; Output time: 16 ms

Weight

0.03 kg

Dimensions

18 x 18 x 68.7
