6063624

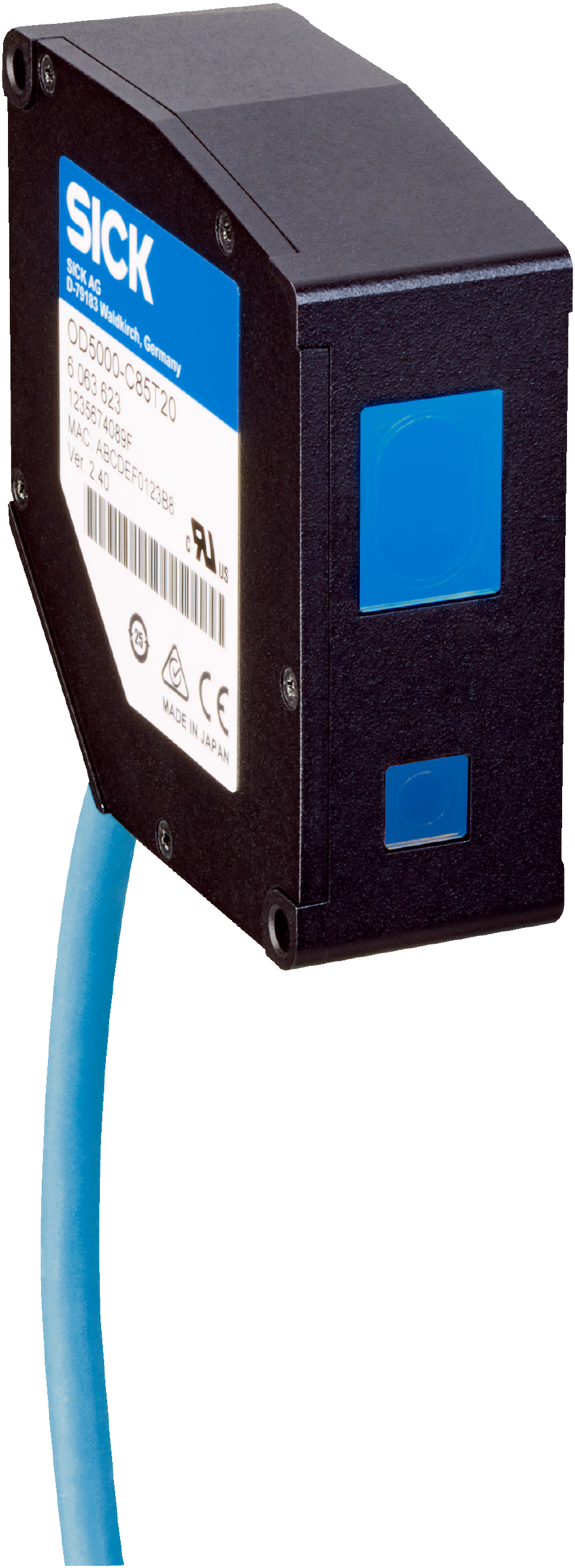

SICK 6063624 / OD5000-C85W20 is a laser distance sensor in the OD5000 family. Communication interface: Ethernet; Digital output: 1... 3 x PNP/NPN, selectable; Type of analog output: Current output; Measuring range: 65 mm... 105 mm; Linearity: ± 6 µm, ± 6 µm; Laser class: 1; Typ. light spot size (distance): 70 µm x 2,000 µm; Housing material: Metal; Connection type: Cable with male connector, M12, 8-pin, A-coded, 50 cm.

Manufacturer

Sick

Part number

6063624

Product family

OD5000

Category

Laser distance sensors

Technical details

Supply voltage UB: DC 12 V... 24 V, ± 10%, including residual ripple; Repeatability: 0.1 µm; Response time: ≥ 0.0125 ms; Dimensions (W x H x D): 25.9 mm x 71.5 mm x 53.2 mm; Connection type: Cable with male connector, M12, 8-pin, A-coded, 50 cm; Enclosure rating: IP67; Housing material: Metal (Aluminum die cast); Weight: 280 g; Measuring range: 65 mm... 105 mm; Linearity: Diffuse ± 6 µm; Specular ± 6 µm; Measuring frequency: ≤ 80 kHz; Output time: ≥ 0.0125 ms; Emitted beam: Light source Laser, red; Typ. light spot size (distance): 70 µm x 2,000 µm

Weight

0.28 kg

Dimensions

25.9 x 71.5 x 53.2
