6053542

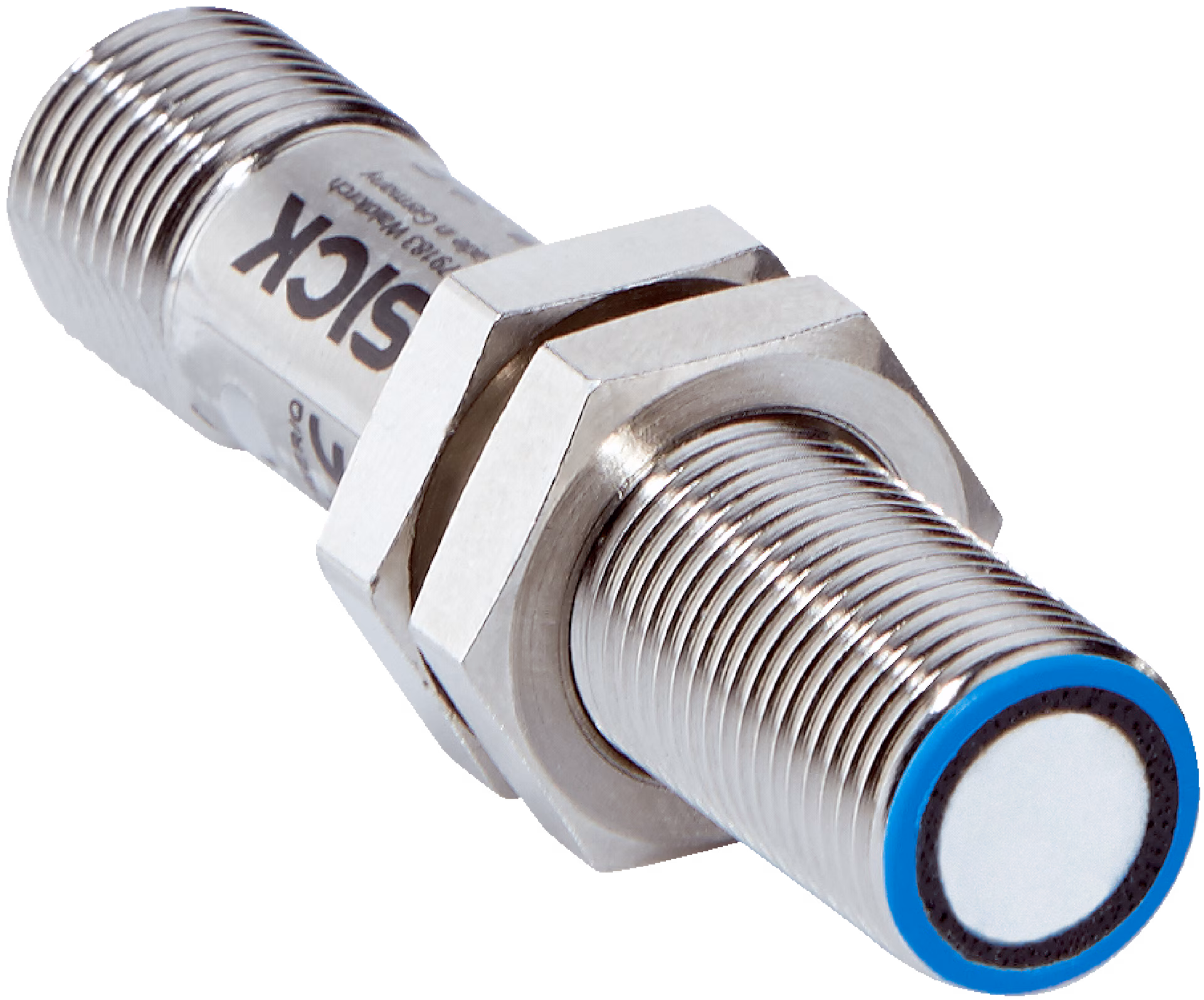

SICK 6053542 / UM12-1172211 is an ultrasonic distance sensor in the UM12 family. Communication interface: -; Operating range, limiting range: 20 mm... 150 mm, 250 mm; Connection type: Male connector, M12, 4-pin; Sending axis: Straight; Response time: 24 ms; Digital output: 1 x PNP.

Manufacturer

Sick

Part number

6053542

Product family

UM12

Category

Ultrasonic distance sensors

Technical details

Operating range, limiting range: 20 mm... 150 mm, 250 mm; Resolution: ≥ 0.069 mm; Supply voltage UB: DC 10 V... 30 V; Repeatability: ± 0.15 %; Measurement accuracy: ± 1 %; Response time: 24 ms; Dimensions (W x H x D): 12 mm x 12 mm x 55.1 mm; Connection type: Male connector, M12, 4-pin; Enclosure rating: IP65 / IP67; Housing material: Metal (nickel-plated brass, PBT, ultrasonic transducer: polyurethane foam, glass epoxy resin); Weight: 15 g; Target: Natural objects; Temperature compensation: ✔; Switching frequency: 30 Hz

Weight

0.015 kg

Dimensions

12 x 12 x 55.1
