6053311

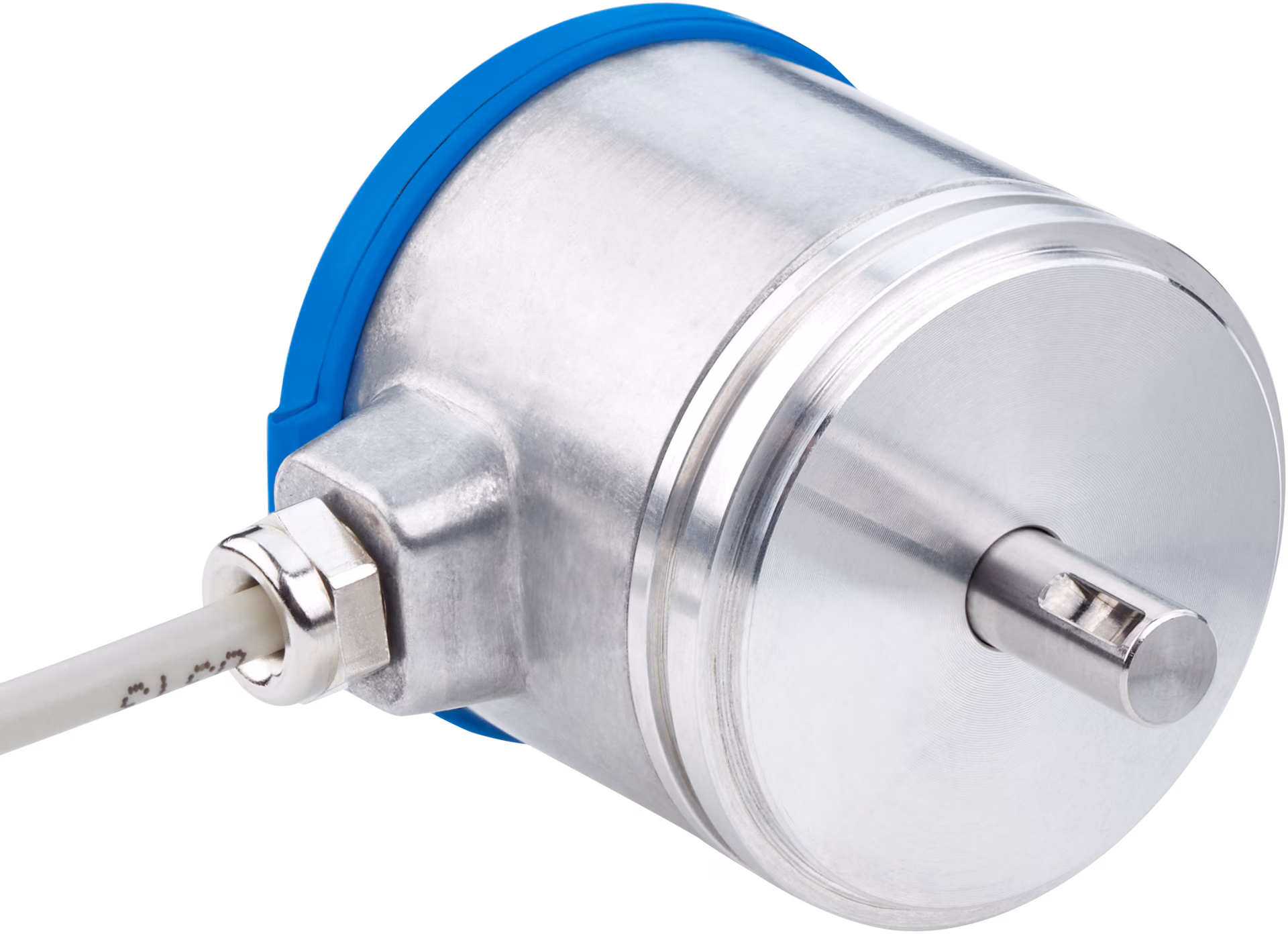

SICK 6053311 / ACS36-K1K0-K01 is an absolute encoder in the ACS/ACM36 family. Singleturn or multiturn version: Singleturn; Number of steps per revolution: 2,979; Mechanical design: Solid shaft Servo flange 6 mm x 12.4 mm (With flat); Communication interface: -, Current; Connection type: Cable, radial, 1.5 m.

Manufacturer

Sick

Part number

6053311

Product family

ACS/ACM36

Category

Absolute encoders

Technical details

Measurement range: 0°... 360°, programmable; Number of steps per revolution (max. resolution): 2,979; Resolution per measuring step: 5.4 μA... 40.2 μA; Resolution: 0.09°... 0.12°; Supply voltage: 19... 33 V DC; Communication interface: -; Communication Interface detail: Current; Accuracy: ± 0.2 % based on the programmed angle; Connection type: Cable, radial, 1.5 m; Enclosure rating: IP65; Housing material: AlMgSi; Weight: 0.1 kg; MTTFD (mean time to dangerous failure): 900 years (EN ISO 13849-1); Minimum measuring range: ≥ 35°

Weight

0.1 kg

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
