1031455

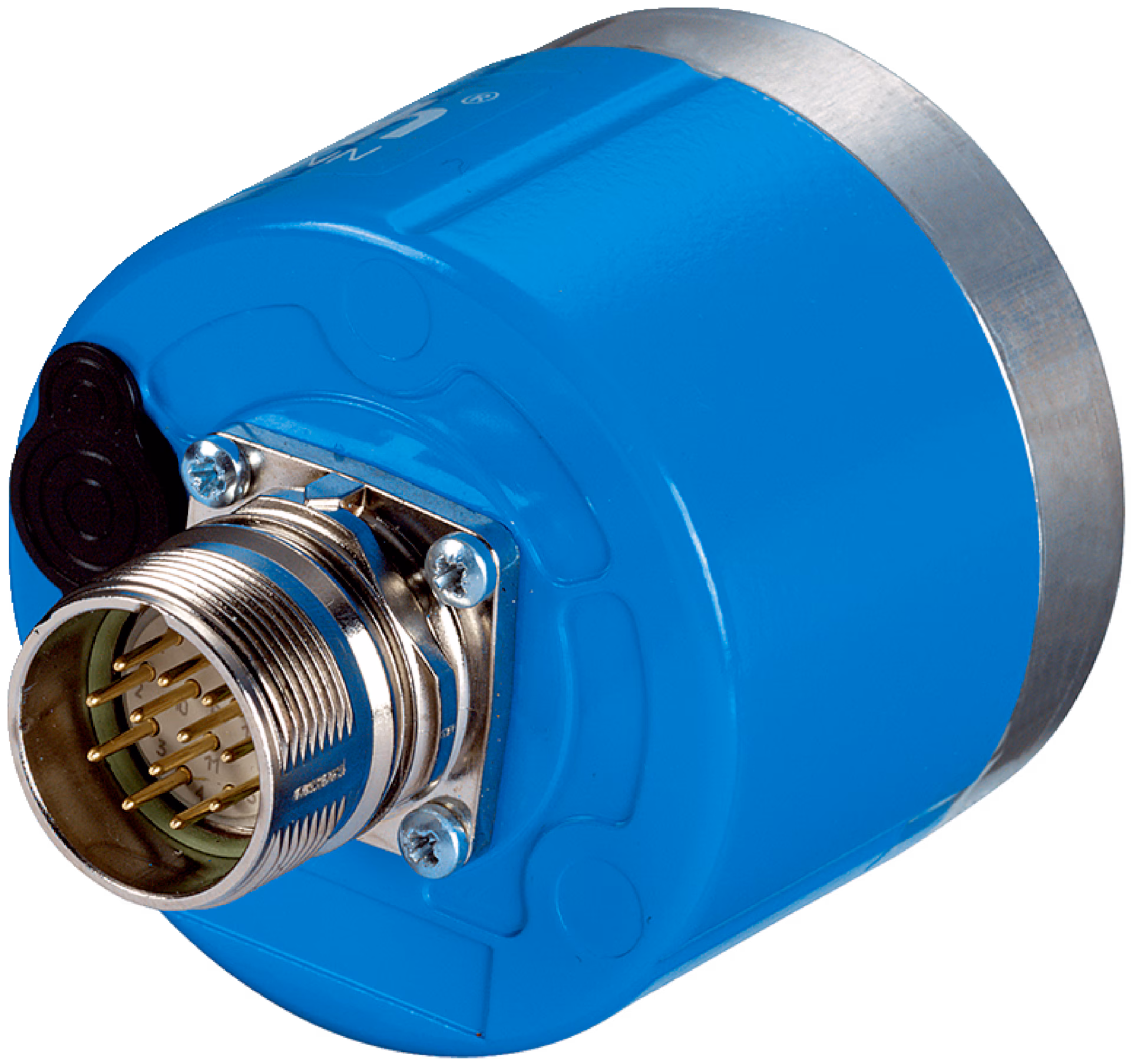

SICK 1031455 / ARS60-A1B08192 is an absolute encoder in the ARS60 family. Singleturn or multiturn version: Singleturn; Number of steps per revolution: 8,192 (13 bit); Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat); Communication interface: SSI; Connection type: Male connector, M23, 12-pin, axial.

Manufacturer

Sick

Part number

1031455

Product family

ARS60

Category

Absolute encoders

Technical details

Number of steps per revolution (max. resolution): 8,192 (13 bit); Supply voltage: 10... 32 V; Communication interface: SSI; Repeatability standard deviation σr: 0.005°; Connection type: Male connector, M23, 12-pin, axial; Enclosure rating: IP65, male connector (IEC 60529); Housing material: Aluminum die cast; Weight: Approx. 0.3 kg; MTTFD (mean time to dangerous failure): 300 years (EN ISO 13849-1); Measuring step: 360° /number of steps; Measuring step deviation: 0.005° binary number of steps; Error limits G: 0.035° (binary number of steps); Initialization time: 80 ms; Code type: Gray

Weight

0.3 kg
