6050515

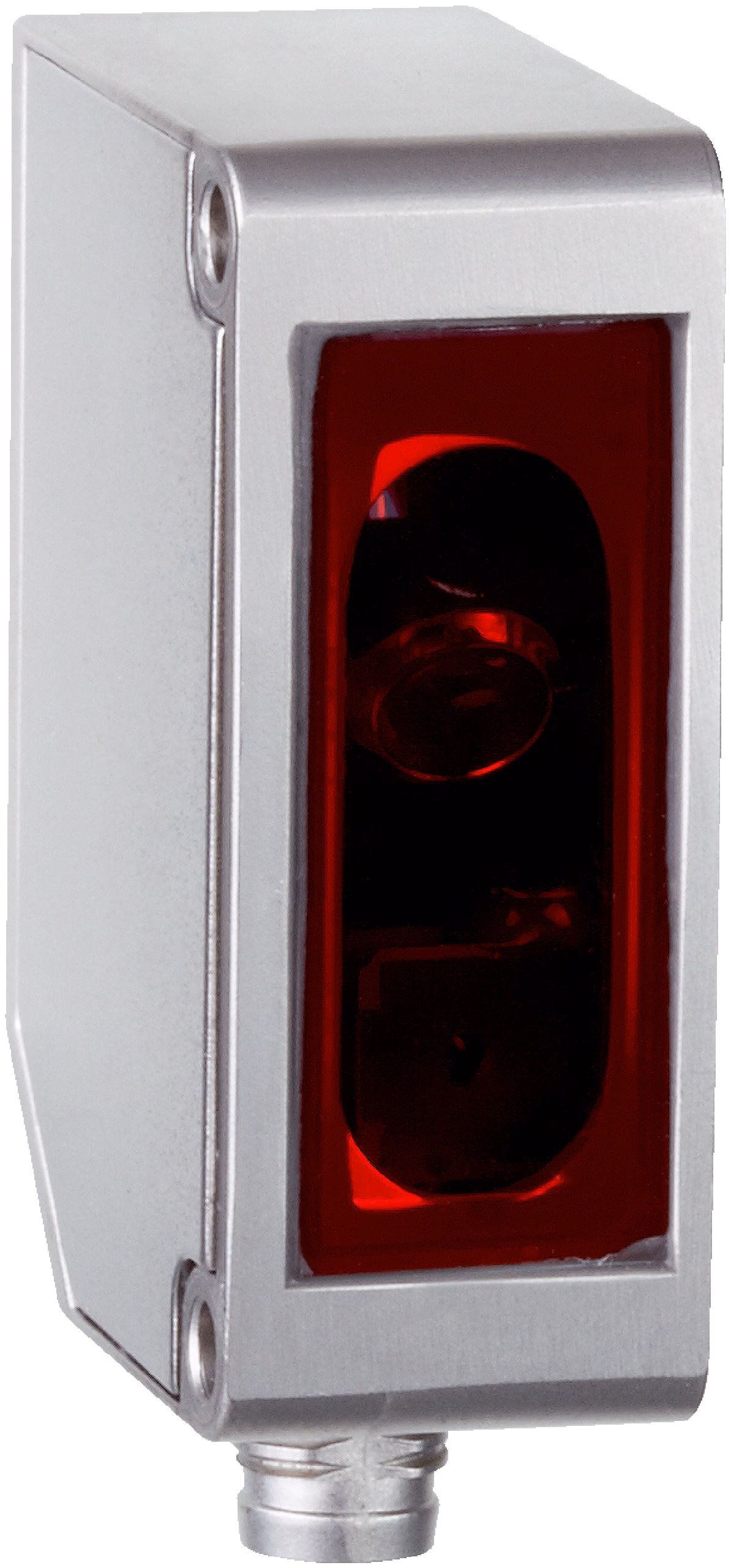

SICK 6050515 / OD1-B100H50A14 is a laser distance sensor in the OD Mini family. Communication interface: Serial, PROFIBUS DP; Digital output: 1... 3 x PNP/NPN, selectable; Type of analog output: Current output; Measuring range: 50 mm... 150 mm; Linearity: ± 100 µm; Laser class: 1; Typ. light spot size (distance): 700 µm x 600 µm (100 mm); Housing material: Stainless steel; Connection type: Male connector, M8, 4-pin.

Manufacturer

Sick

Part number

6050515

Product family

OD Mini

Category

Laser distance sensors

Technical details

Supply voltage UB: DC 12 V (–5 %)... DC 24 V (+10 %); Repeatability: 20 µm; Response time: ≥ 2 ms; Dimensions (W x H x D): 17.8 mm x 44.4 mm x 31 mm; Connection type: Male connector, M8, 4-pin; Enclosure rating: IP67; Housing material: Stainless steel; Weight: 70 g; Measuring range: 50 mm... 150 mm; Linearity: ± 100 µm; Measuring frequency: ≤ 2 kHz; Output time: ≥ 0.5 ms; Emitted beam: Light source Laser, red; Typ. light spot size (distance): 700 µm x 600 µm (100 mm)

Weight

0.07 kg

Dimensions

17.8 x 44.4 x 31
