6050503

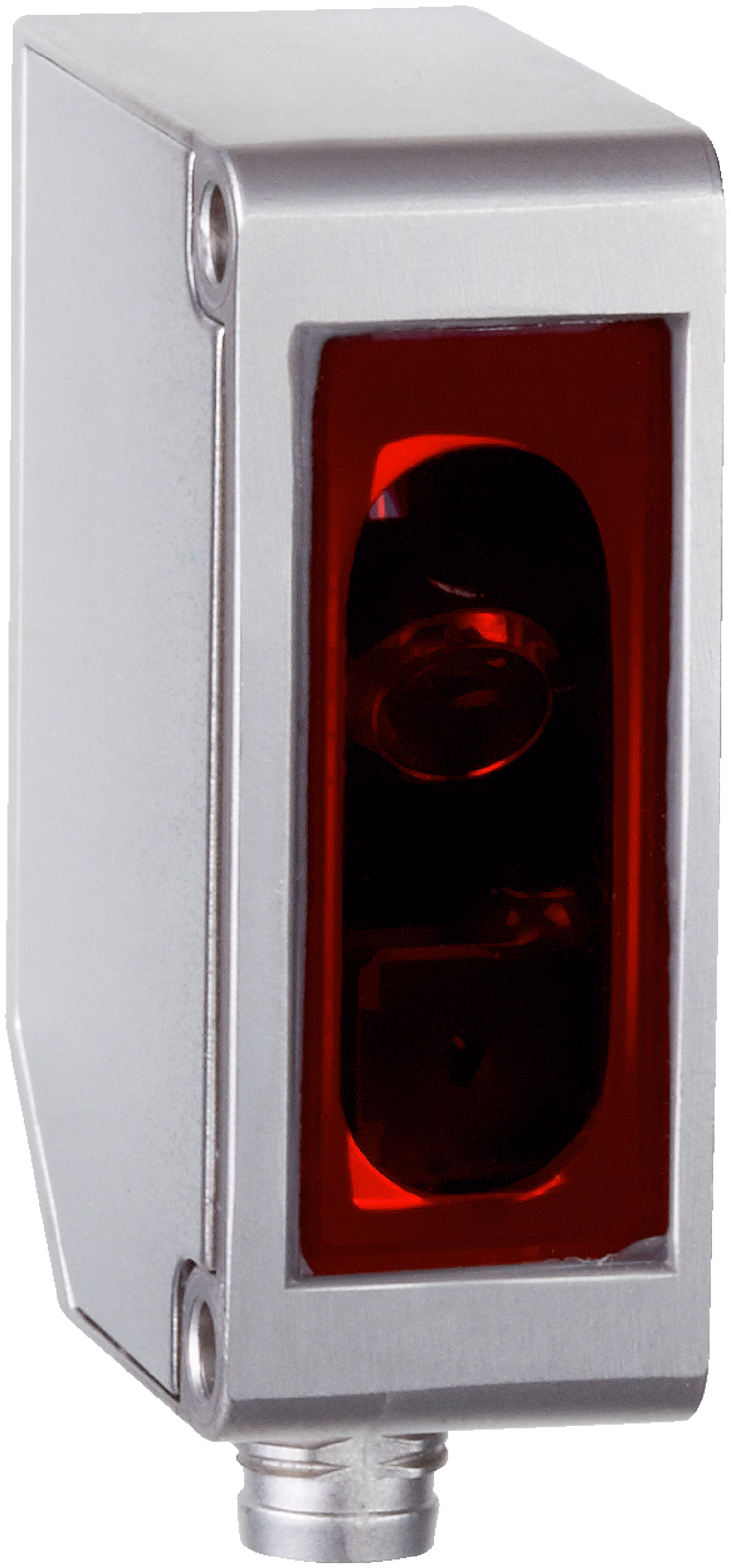

SICK 6050503 / OD1-B035H15I14 is a laser distance sensor in the OD Mini family. Type of analog output: Current output; Measuring range: 20 mm... 50 mm; Linearity: ± 30 µm; Laser class: 1; Typ. light spot size (distance): 800 µm x 450 µm (35 mm); Housing material: Stainless steel; Connection type: Male connector, M8, 4-pin.

Manufacturer

Sick

Part number

6050503

Product family

OD Mini

Category

Laser distance sensors

Technical details

Resolution: 13.4 bit; Supply voltage UB: DC 12 V (–5 %)... DC 24 V (+10 %); Repeatability: 6 µm; Response time: ≥ 2 ms; Dimensions (W x H x D): 17.8 mm x 44.4 mm x 31 mm; Connection type: Male connector, M8, 4-pin; Enclosure rating: IP67; Housing material: Stainless steel; Weight: 70 g; Measuring range: 20 mm... 50 mm; Linearity: ± 30 µm; Measuring frequency: ≤ 2 kHz; Output time: ≥ 0.5 ms; Emitted beam: Light source Laser, red

Weight

0.07 kg

Dimensions

17.8 x 44.4 x 31
