6045313

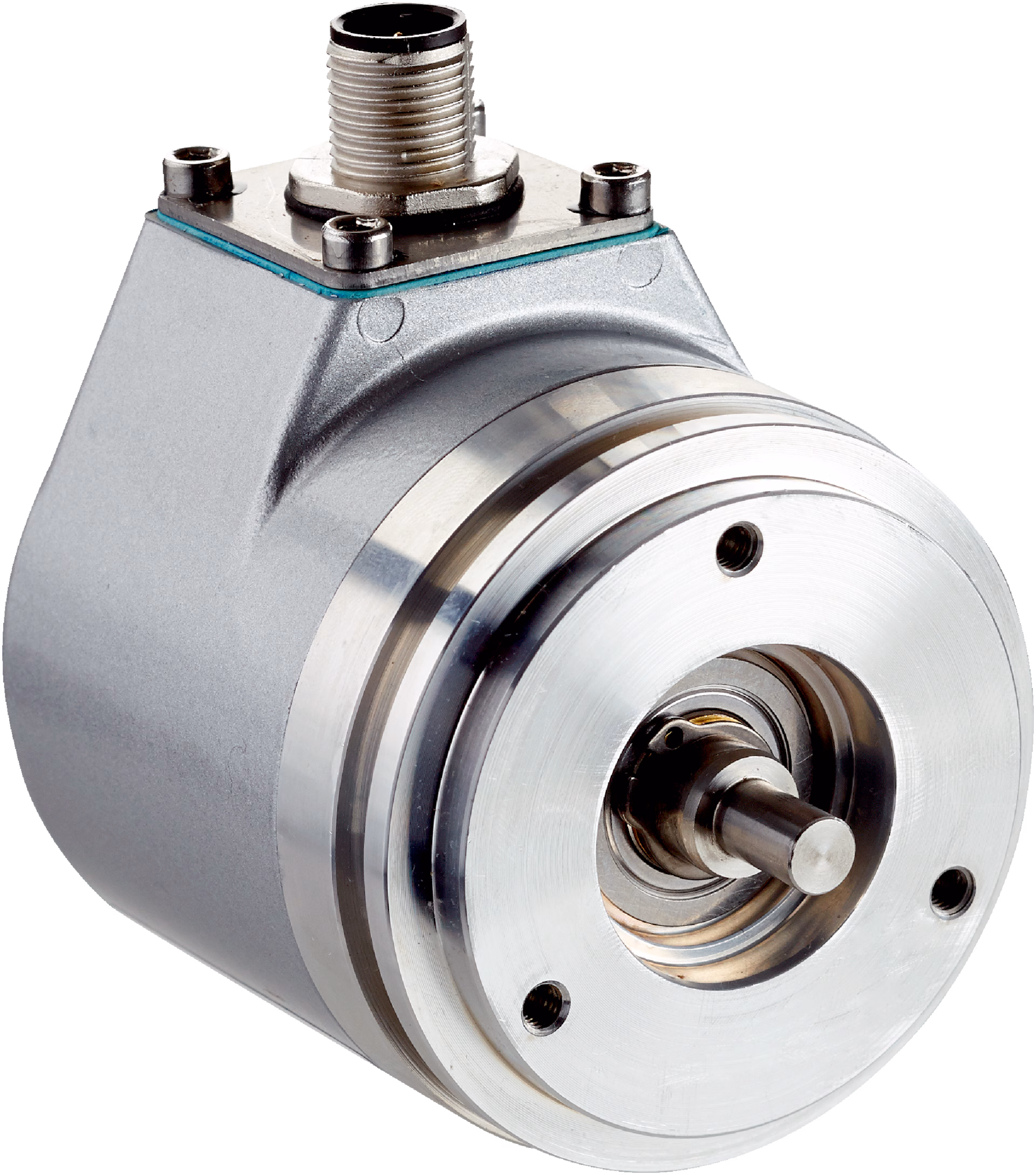

SICK 6045313 / ACM60B-S1LE13x06 is an absolute encoder in the ACM60 family. Singleturn or multiturn version: Multiturn; Max. resolution: 6 bit (13,107 x 64); Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat); Communication interface: -, Voltage, non programmable; Connection type: Male connector, M12, 5-pin, radial.

Manufacturer

Sick

Part number

6045313

Product family

ACM60

Category

Absolute encoders

Technical details

Measurement range: 0°... 23,040°, programmable; Number of steps per revolution (max. resolution): 13,107; Max. resolution (number of steps per revolution x number of revolutions): 6 bit (13,107 x 64); Resolution per measuring step: 0.8 mV... 5.5 mV; Resolution: 0.35°... 1.76°; Supply voltage: 18... 33 V DC; Communication interface: -; Communication Interface detail: Voltage; Accuracy: ± 0.1 % based on the programmed angle; Connection type: Male connector, M12, 5-pin, radial; Enclosure rating: IP65, shaft side (IEC 60529); IP67, housing side (IEC 60529); Housing material: Aluminum die cast; Weight: 0.4 kg; MTTFD (mean time to dangerous failure): 600 years (EN ISO 13849-1)

Weight

0.4 kg
