6040950

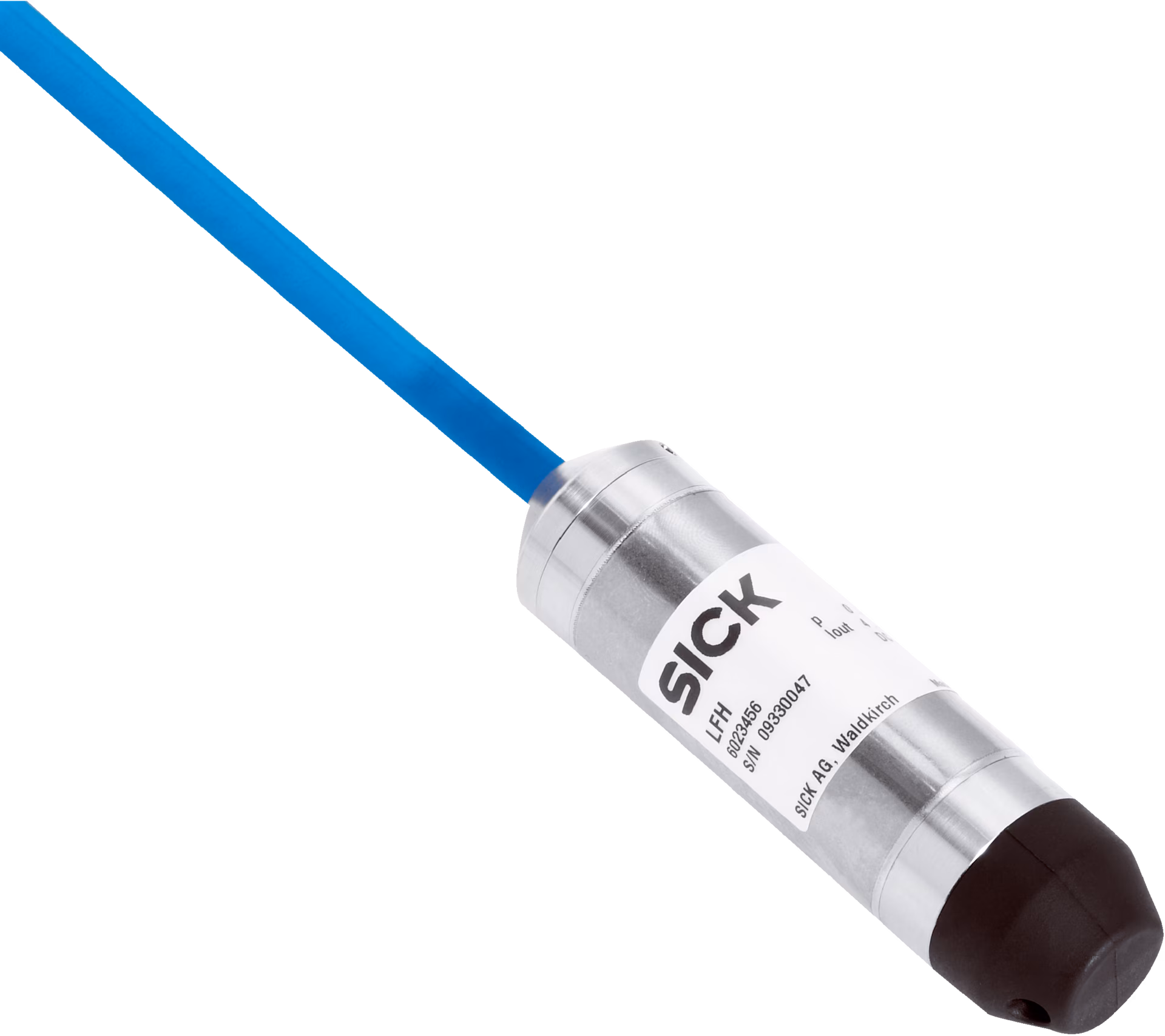

SICK 6040950 / LFH-SB1X0G1AS10SZ0 is a level sensor in the LFH family. Communication interface: -; Process connection: Without process connection; Remote amplifier: No; Output signal: 4 mA... 20 mA, 2-wire; Connection type: PUR cable connection; Process temperature: –10 °C... +50 °C; Process pressure: 0 bar... 1 bar; Wetted parts: Stainless steel 1.4404 / 316L, PA; Housing material: Stainless steel 1.4404 / 316L; Enclosure rating: IP68; Display: no; PWIS-cleaned: no; Bluetooth: no.

Manufacturer

Sick

Part number

6040950

Product family

LFH

Category

Level sensors

Technical details

Supply voltage: 10 V DC... 30 V DC; Communication interface: -; Accuracy of sensor element: ≤ ± 0.5 % of the span; Non-repeatability: ≤ ± 0.1 % of the span; Connection type: PUR cable connection; Enclosure rating: IP68; Housing material: Stainless steel 1.4404 / 316L; Weight: 0.18 kg; Medium: Fluids; Measurement: Continuous; Process pressure: 0 bar... 1 bar; Process temperature: –10 °C... +50 °C; Maximum ohmic load RA: 4 mA... 20 mA, 2-wire, RA ≤ (L – 10 V) / 0.02 A - (0.14 x cable length in m) [Ohm], 0 V... 10 V, 3-wire optional with enhanced variant, RA > 100 kOhm, 0 V... 5 V, 3-wire optional with enhanced variant, RA > 100 kOhm; Non-linearity: ≤ ± 0.2 %, of span (Best Fit Straight Line, BFSL) according to IEC 61298-2

Weight

0.18 kg

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
