1052085

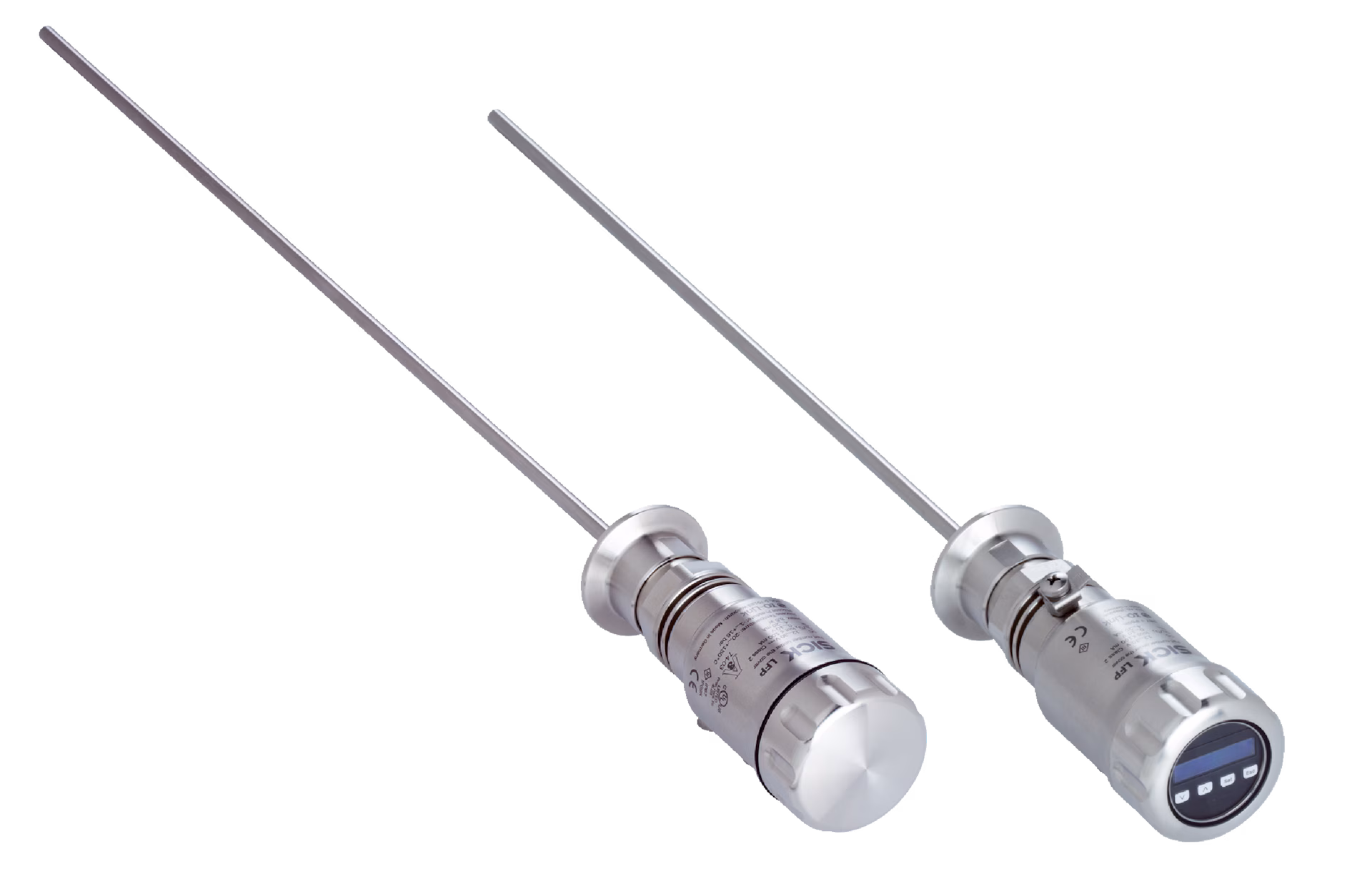

SICK 1052085 / LFP2000-G1NMB is a level sensor in the LFP Inox family. Communication interface: IO-Link; Process connection: G ¾ A; Probe length: 2,000 mm; Probe type: Rod probe in hygienic design; Remote amplifier: No; Output signal: 1 x PNP + 1 x PNP/NPN + 4 mA... 20 mA / 0 V... 10 V; Connection type: Round connector M12 x 1, 5-pin; Process temperature: –20 °C... +150 °C; Process pressure: –1 bar... 16 bar; Housing design: With viewing window made from PMMA (acrylic glass); Wetted parts: Stainless steel 1.4404 / 316L, PEEK; Housing material: Stainless steel 1,4305; Enclosure rating: IP67, IP69; Display: yes; PWIS-cleaned: no; Bluetooth: no.

Manufacturer

Sick

Part number

1052085

Product family

LFP Inox

Category

Level sensors

Technical details

Resolution: 1 mm; Supply voltage: 12 V DC... 30 V DC; Communication interface: IO-Link; Accuracy of sensor element: ± 5 mm; Response time: 400 ms; Connection type: Round connector M12 x 1, 5-pin; Enclosure rating: IP67 (EN 60529); IP69 (EN 60529); Housing material: Stainless steel 1,4305; Ambient operating temperature: –20 °C... +60 °C; Medium: Fluids; Measurement: Switch, Continuous; Design: Standard amplifier; Probe type: Rod probe in hygienic design; Probe length: 2,000 mm

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
