6035242

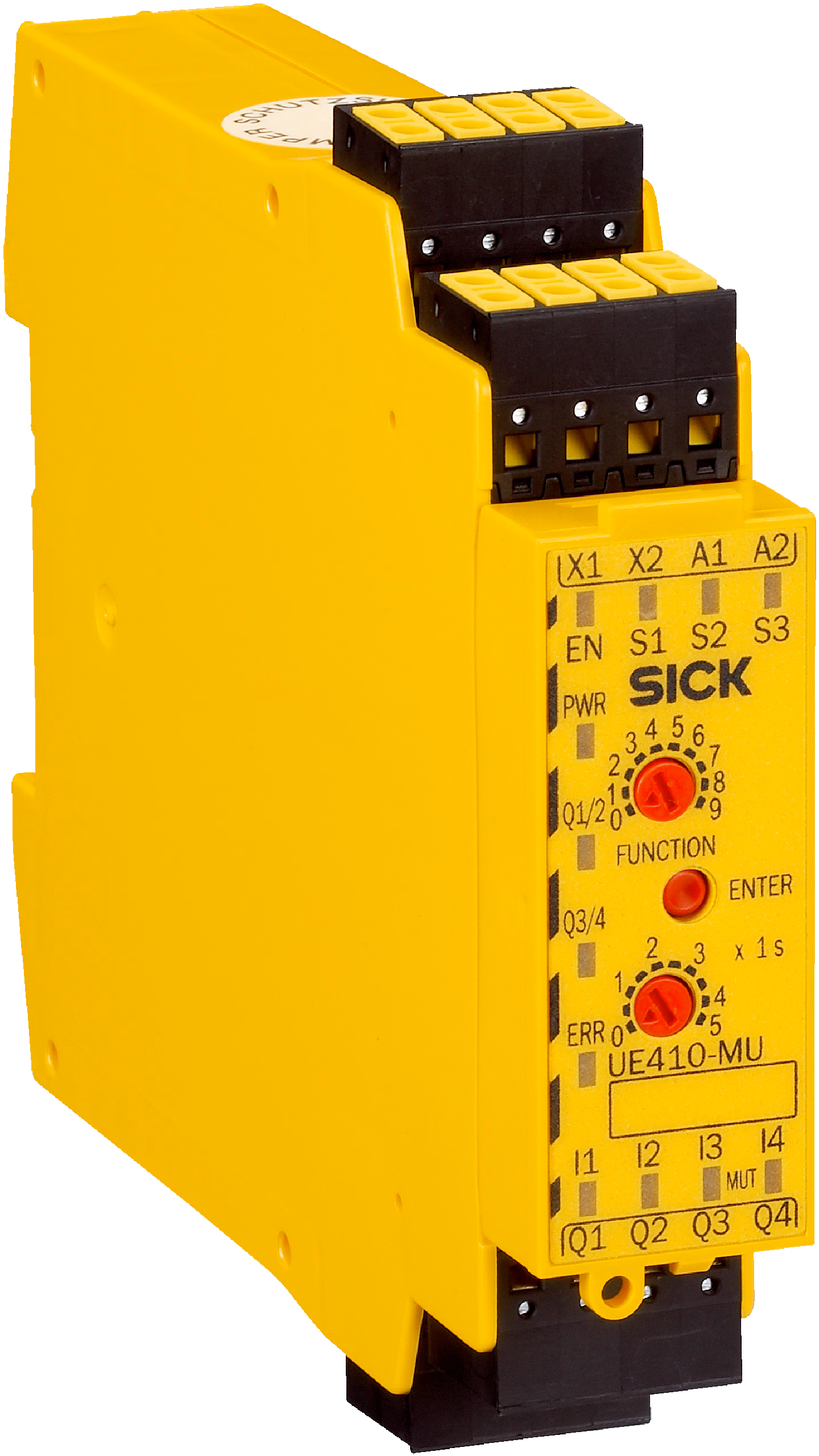

SICK 6035242 / UE410-MU3T0 is a safety controller in the Flexi Classic family. Module: Main module; Specialization: Universal; Inputs: 4 safety inputs, 4 switching inputs; Number of muting sensors: 0 / 2; Outputs: 4 safety outputs, 2 test outputs; Connection type: Plug-in screw-type terminals; Protective coating for more challenging ambient conditions: no.

Manufacturer

Sick

Part number

6035242

Product family

Flexi Classic

Category

Safety controllers

Technical details

Supply voltage VS: 24 V DC (19.2 V DC... 30 V DC); Dimensions (W x H x D): 22.5 mm x 96.5 mm x 120.8 mm; Connection type: Plug-in screw-type terminals; Enclosure rating: Housing IP40 (EN 60529); Ambient operating temperature: –25 °C... +55 °C; Weight: + 180 g; Module: Main module; Configuration method: Via rotary switch; Safety integrity level: SIL 3 (IEC 61508); Category: Category 4 (EN ISO 13849); Performance level: PL e (EN ISO 13849); PFHD (mean probability of a dangerous failure per hour): 2.5 x 10 (EN ISO 13849); TM (mission time): 20 years (EN ISO 13849); Restart interlock: Manual / automatic (configurable)

Weight

0.18 kg

Dimensions

22.5 x 96.5 x 120.8
