6026144

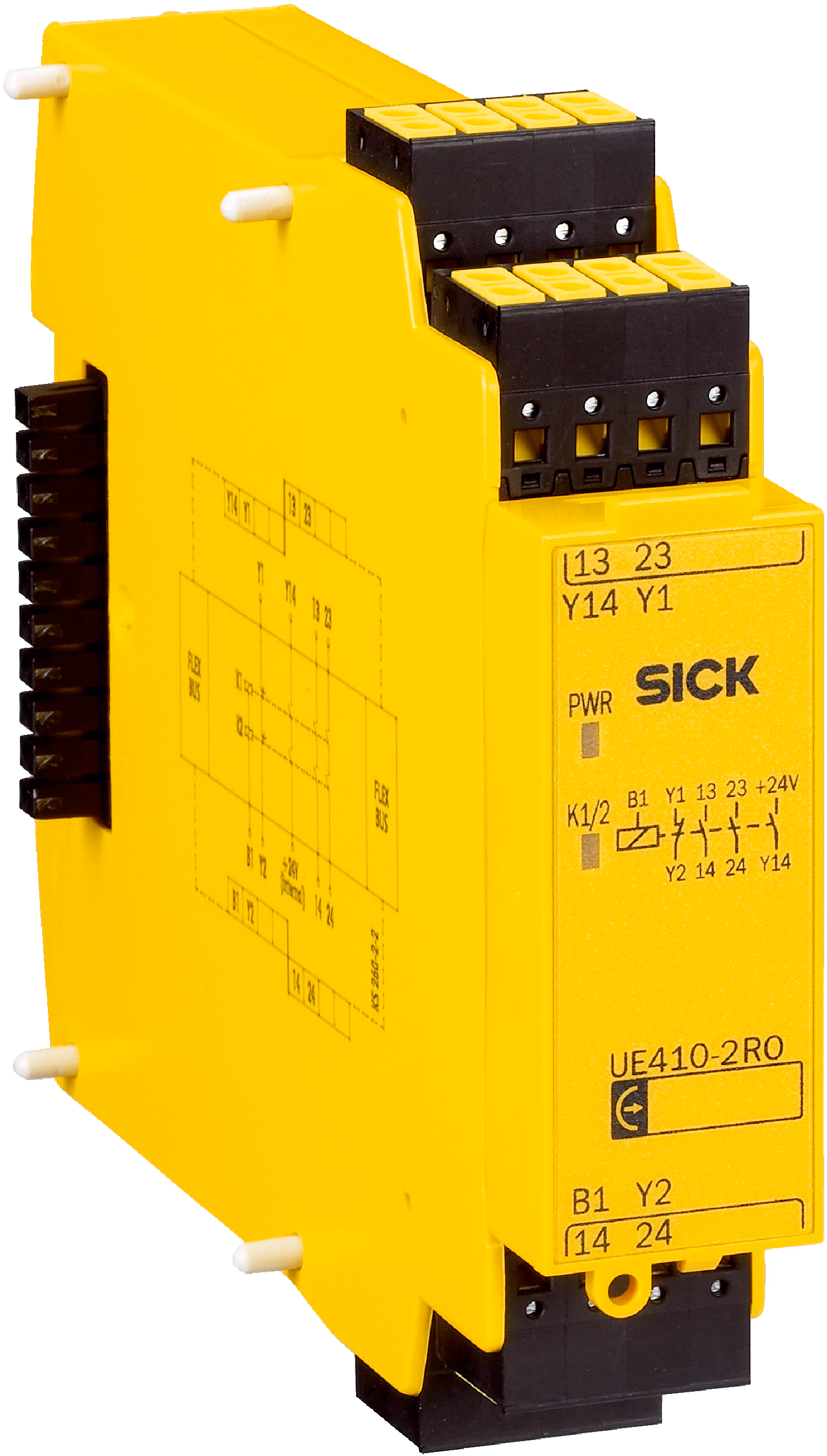

SICK 6026144 / UE410-2RO3 is a safety controller in the Flexi Classic family. Module: Relay module; Specialization: Relay expansion module; Outputs: 2 enabling current paths; Connection type: Plug-in screw-type terminals; Protective coating for more challenging ambient conditions: no.

Manufacturer

Sick

Part number

6026144

Product family

Flexi Classic

Category

Safety controllers

Technical details

Dimensions (W x H x D): 22.5 mm x 96.5 mm x 120.8 mm; Connection type: Plug-in screw-type terminals; Enclosure rating: Housing IP40 (EN 60529); Ambient operating temperature: –25 °C... +55 °C; Weight: 160 g (± 5 %); Module: Relay module; Configuration method: Hard wired; Safety integrity level: SIL 3 (IEC 61508); Category: Category 4 (EN ISO 13849); Performance level: PL e (EN ISO 13849); Outputs: 2 enabling current paths; Number of control inputs: 1 (B1); Number of enable current contacts: 2 (13/14, 23/24); Number of signaling current paths: 1 (Y14)

Weight

0.16 kg

Dimensions

22.5 x 96.5 x 120.8
