5308088

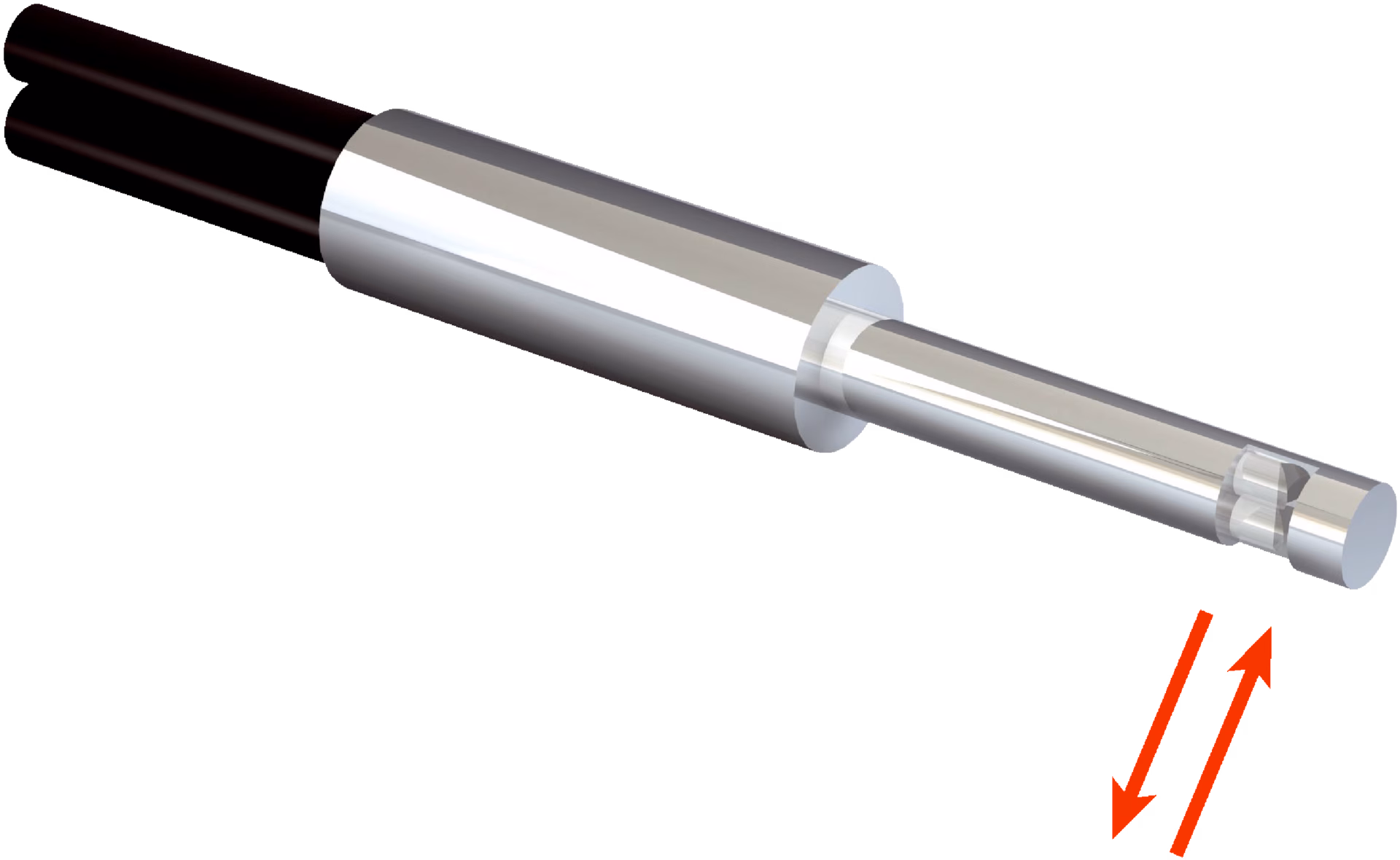

SICK 5308088 / LL3-DV01 is a fiber-optic sensor in the Fiber-optic cables family. Functional principle: Proximity system; Fiber-optic head design: Smooth sleeve, Long end sleeve, 90° deflection; Fiber length: 2,000 mm; Smooth sleeve diameter: 5 mm; Fiber material: Plastic; Jacket material: Plastic; Fiber head material: Stainless steel; Included with delivery: FC fiber cutter (5304141).

Manufacturer

Sick

Part number

5308088

Product family

Fiber-optic cables

Category

Fiber-optic sensors

Technical details

Sensing range max.: 850 mm (Sensing range of WLL80 at 8 ms); Ambient operating temperature: –40 °C... +70 °C; Weight: 28 g; Device type: Fiber-optic cables; Functional principle: Proximity system; Fiber-optic head design: Smooth sleeve, Long end sleeve, 90° deflection; Application: Standard; Compatible fiber-optic amplifiers: GLL70, WLL80, WLL180, GLL170(T), WLL24 Ex; Minimal object diameter: 0.025 mm; Optical fiber head: Angle of dispersion 60°; Integrated lens: No; Compatibility tip adapters: No; Optical fiber: Compatibility with infrared light No; Optical fiber cable can be shortened: ✔

Weight

0.028 kg
