170AMM09000

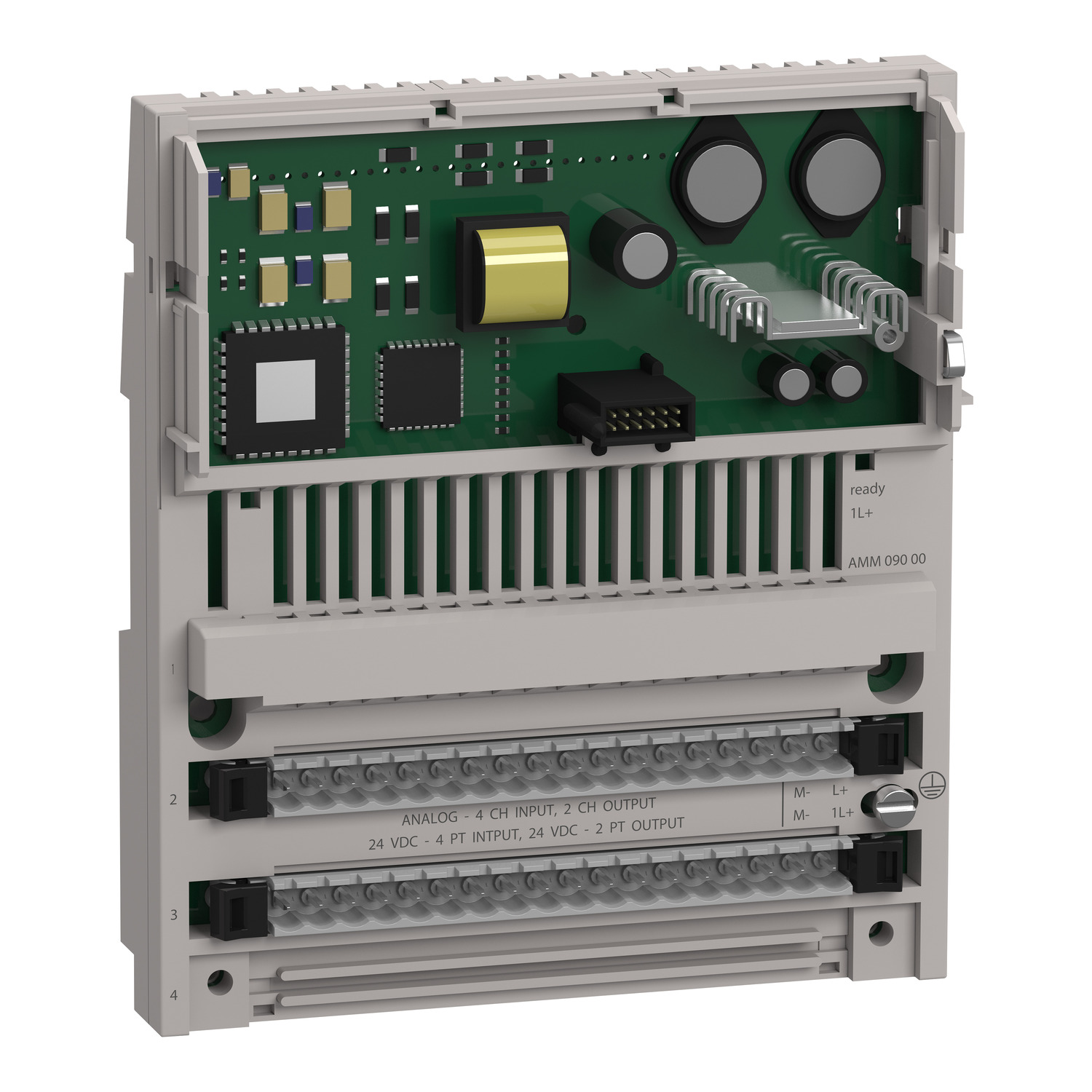

Schneider Electric 170AMM09000 is a distributed analog/discrete I/O Modicon Momentum. This product is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This distributed analogue/discrete module has 1 group of 2 discrete outputs, 4 discrete inputs, 4 analogue differential inputs and 2 analogue output with positive discrete input logic.

Manufacturer

Schneider Electric

Part number

170AMM09000

Product family

Modicon Momentum

Category

PLC and Automation Components

Technical details

This distributed analogue/discrete module has 1 group of 2 discrete outputs, 4 discrete inputs, 4 analogue differential inputs and 2 analogue output with positive discrete input logic; It is an analogue/discrete module with a rated supply voltage of 24V DC, a discrete output current of 1A per point, 2A per group, 2A per module and a maximum power dissipation of 6W; It is furnished with 2 connectors for removable terminal blocks; Analogue input range of this product is ±10V, ±20mA, ±5V, 1V to 5V, 4mA to 20mA and analogue output range is ±10V 12bit and 0mA to 20mA 12bit; Its dimensions are 141.5mm (width) x 47.5mm (depth) x 125mm (height) and weighs 0.24kg; System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems

Weight

0.24 kg
