1220359

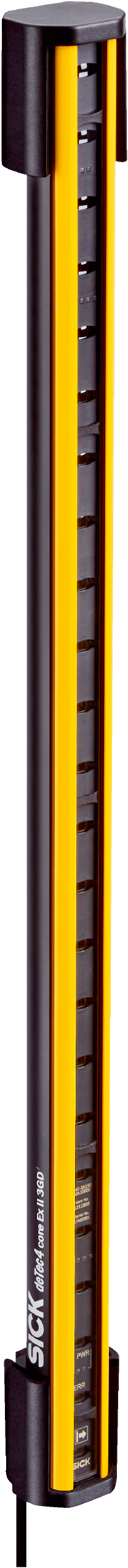

SICK 1220359 / C4C-EX13530A10000 is a safety light curtain in the deTec family. Product version: deTec4 Core Ex II 3GD; System part: Receiver; Application: Explosive areas; Ex-approvals: Ex II 3G/3D; Safety level: PL e, SIL 3, Type 4; Resolution: 30 mm; Scanning range: 15 m; Protective field height: 1,350 mm; Connection type: Plug, M12, 5-pin; Enclosure rating: IP65, IP67; Items supplied: Receiver, test rod with diameter corresponding to the resolution of the safety light curtain, “Notes for explosion protection” label(s), safety instruction, Mounting instructions, Operating instructions for download.

Manufacturer

Sick

Part number

1220359

Product family

deTec

Category

Safety light curtains

Technical details

Resolution: 30 mm; Supply voltage VS: 24 V DC (19.2 V... 28.8 V); Response time: 12 ms; Dimensions: See dimensional drawing; Enclosure rating: IP65 (IEC 60529); IP67 (IEC 60529); Housing material: Aluminum extruded profile; Ambient operating temperature: 0 °C... +55 °C; Product version: deTec4 Core Ex II 3GD; Application: Explosive areas; Ex-approvals: ATEX for gas: II 3G Ex ec op is IIC T4 Gc; ATEX for dust: II 3D Ex tc IIIC T135°C Dc; System part: Receiver; Compatible sender: 1220346; Scanning range: 15 m; Protective field height: 1,350 mm

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
