1070797

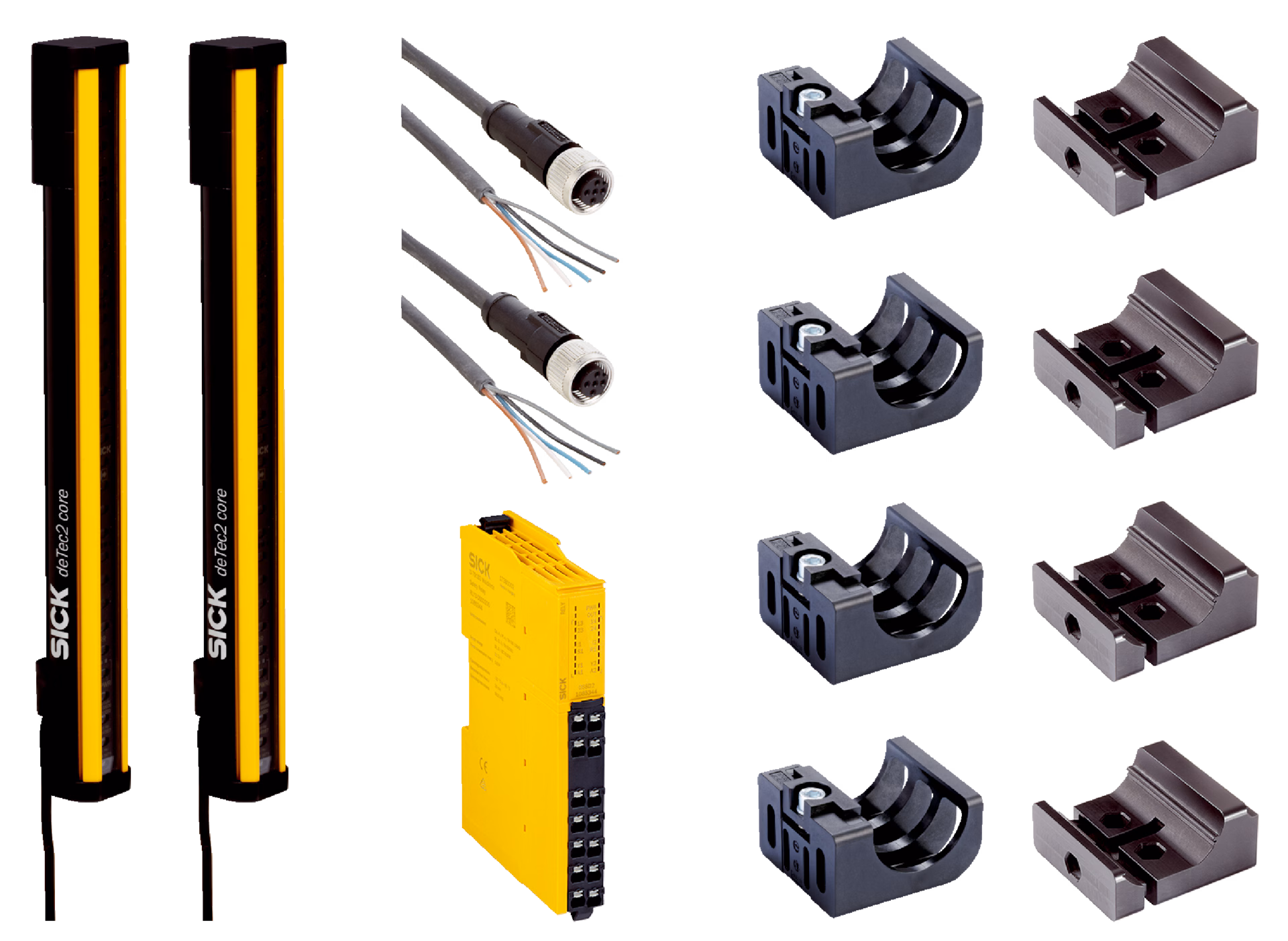

SICK 1070797 / deTec2 Core Set 30/1800 is a safety light curtain in the deTec family. Product version: deTec2 Core; System part: Set; Application: Normal industrial environment; Safety level: PL c, SIL 1, Type 2; Resolution: 30 mm; Scanning range: 15 m; Protective field height: 1,800 mm; Connection type: Plug, M12, 5-pin; Enclosure rating: IP65, IP67; Items supplied: Sender, receiver, 4 FlexFix brackets, 4 QuickFix brackets, 2 connecting cables, 5 m, test rod with diameter corresponding to the resolution of the safety light curtain, RLY3-OSSD2 safety relay, safety instruction, Mounting instructions, Operating instructions for download.

Manufacturer

Sick

Part number

1070797

Product family

deTec

Category

Safety light curtains

Technical details

Type of light: Near-infrared (NIR), invisible; Resolution: 30 mm; Supply voltage VS: 24 V DC (19.2 V... 28.8 V); Dimensions: See dimensional drawing; Enclosure rating: IP65 (IEC 60529); IP67 (IEC 60529); Housing material: Aluminum extruded profile; Ambient operating temperature: –30 °C... +55 °C; Product version: deTec2 Core; Application: Normal industrial environment; System part: Set; Scanning range: 15 m; Protective field height: 1,800 mm; No blind zones: Yes; Synchronization: Optical synchronization
