1220343

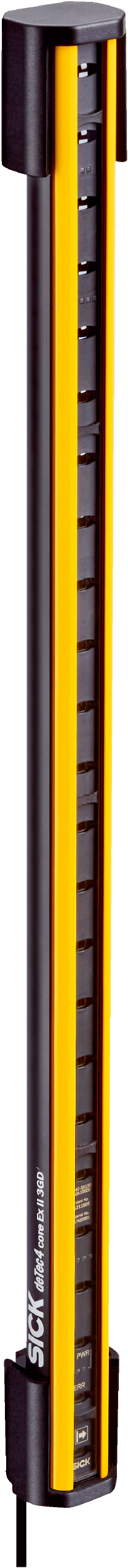

SICK 1220343 / C4C-SX09030A10000 is a safety light curtain in the deTec family. Product version: deTec4 Core Ex II 3GD; System part: Sender; Application: Explosive areas; Ex-approvals: Ex II 3G/3D; Safety level: PL e, SIL 3, Type 4; Resolution: 30 mm; Scanning range: 15 m; Protective field height: 900 mm; Connection type: Plug, M12, 5-pin; Enclosure rating: IP65, IP67; Items supplied: Sender.

Manufacturer

Sick

Part number

1220343

Product family

deTec

Category

Safety light curtains

Technical details

Type of light: Near-infrared (NIR), invisible; Resolution: 30 mm; Supply voltage VS: 24 V DC (19.2 V... 28.8 V); Dimensions: See dimensional drawing; Enclosure rating: IP65 (IEC 60529); IP67 (IEC 60529); Housing material: Aluminum extruded profile; Ambient operating temperature: 0 °C... +55 °C; Product version: deTec4 Core Ex II 3GD; Application: Explosive areas; Ex-approvals: ATEX for gas: II 3G Ex ec op is IIC T4 Gc; ATEX for dust: II 3D Ex tc IIIC T135°C Dc; System part: Sender; Compatible receiver: 1220356; Scanning range: 15 m; Protective field height: 900 mm
