1144347

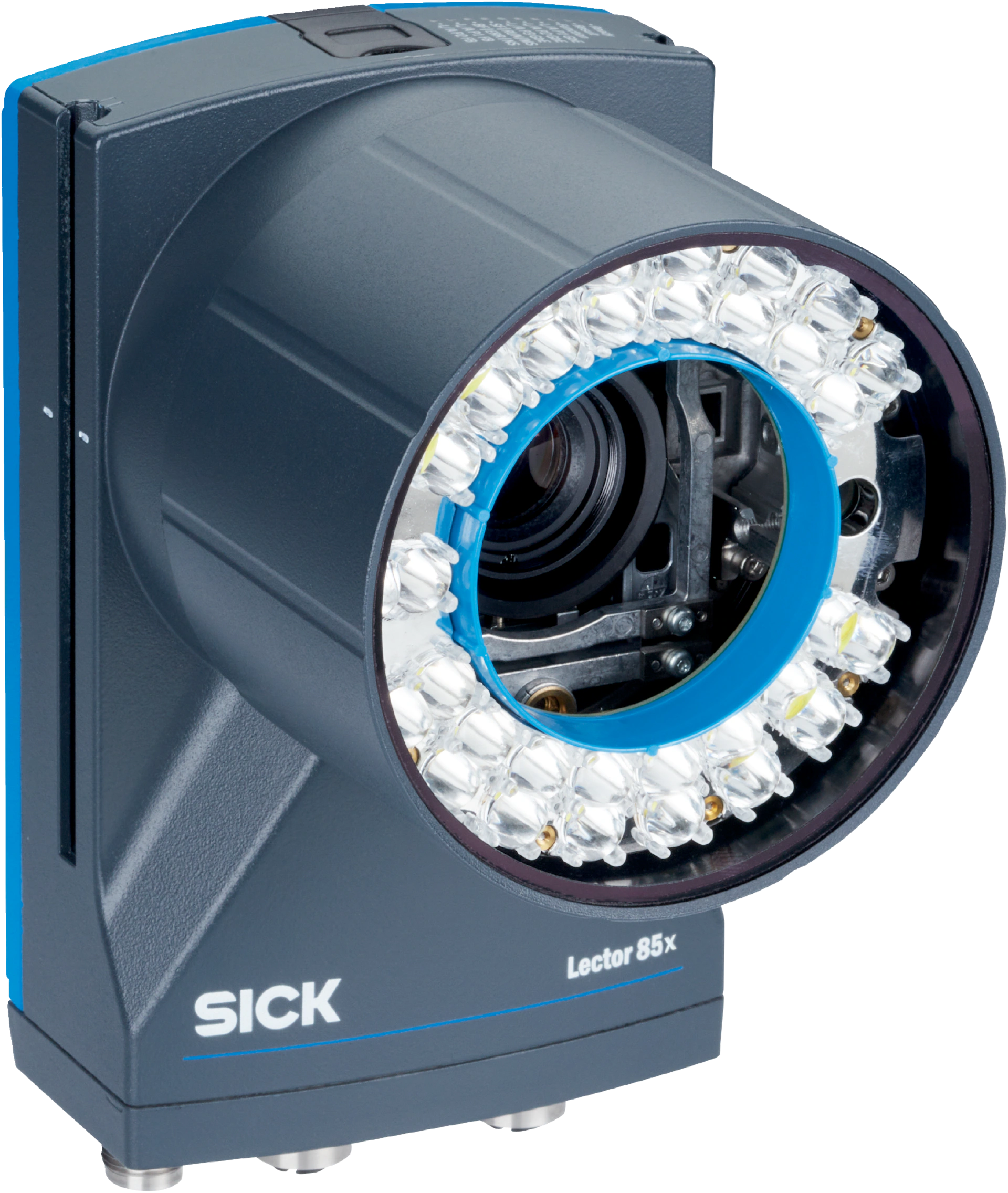

SICK 1144347 / V2D8505R-1MEKEXAF2SXXXX is an image-based code reader in the Lector85x family. Variant: Complete device; Regulatory Model: Z6ARAC; Optical focus: Dynamic focus control; Sensor resolution: 2,464 px x 2,048 px (5 MP); Illumination color: White; Focal length: 25 mm; Ambient operating temperature: 0 °C... +50 °C; Communication interface: Ethernet, EtherNet/IP™, CAN, Serial, USB, PROFINET.

Manufacturer

Sick

Part number

1144347

Product family

Lector85x

Category

Image-based code readers

Technical details

Working range: 500 mm... 2,400 mm; Sensor resolution: 2,464 px x 2,048 px (5 MP); Code resolution: ≥ 0.1 mm; Encoder resolution: 0.2 mm... 10 mm, per pulse; Supply voltage: 24 V DC, ± 20 %; Service interface Data transmission rate: 1.2 kBaud... 115.2 kBaud; Operator interfaces: Web server; Dimensions (L x W x H): 143.4 mm x 90 mm x 106.1 mm; Connection type: 1 x M12,17-pin male connector, A-coded (power, CAN, serial interface, I/O); 1 x M12, 5-pin female connector, A-coded (power, external illumination, I/O); 2 x M12, 4-pin socket, D-coded (100-Megabit Ethernet, dual port fieldbus); 1 x M12, 8-pin female connector, X-coded (Gigabit Ethernet); Enclosure rating: IP65 (IEC 60529:2013 +C1:2013 +C2:2015 +AMD2 C1:2019, EN 60529:1991 +A1:2010 +A2:2013 +AC:2019-02); Housing material: Aluminum die cast; Ambient operating temperature: 0 °C... +50 °C; Weight: 975 g, without lens and connection cables; Application: Indoor area

Weight

0.975 kg

Dimensions

143.4 x 90 x 106.1
