1080075

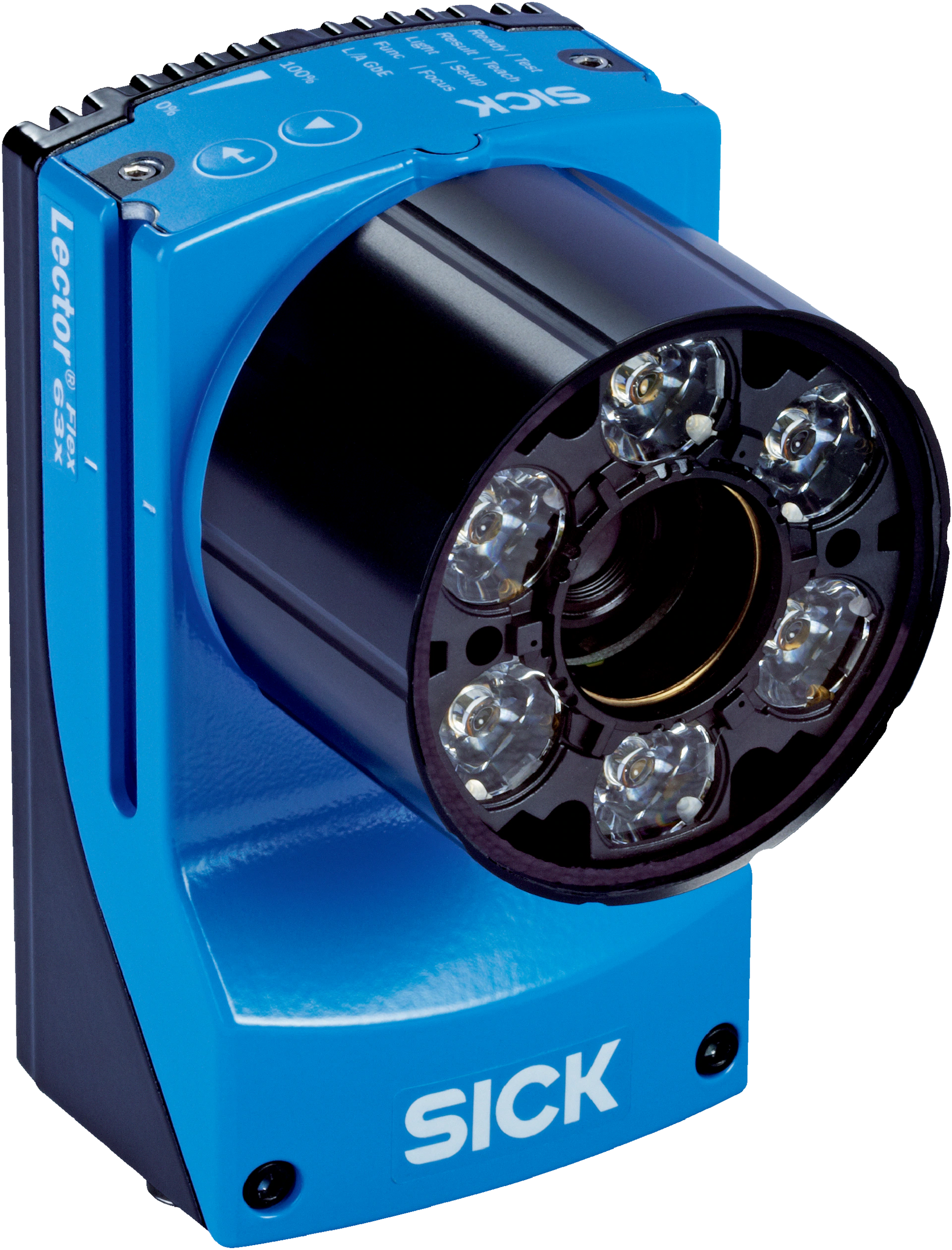

SICK 1080075 / V2D631R-MKMDB4 is an image-based code reader in the Lector63x family. Variant: Complete device; Optical focus: Adjustable focus (manual); Sensor resolution: 1,280 px x 1,024 px (1.3 MP); Illumination color: White; Focal length: 12 mm; Communication interface: Ethernet, PROFINET, EtherNet/IP™, Serial, CAN, PROFIBUS DP; Cold storage applications: no; Note: Additional accessories may be necessary for some communication interfaces (details available online).

Manufacturer

Sick

Part number

1080075

Product family

Lector63x

Category

Image-based code readers

Technical details

Working range: 50 mm... 2,200 mm; Sensor resolution: 1,280 px x 1,024 px (1.3 MP); Code resolution: ≥ 0.1 mm; Supply voltage: 12 V DC... 24 V DC, ± 20 %; Operator interfaces: Web server; Dimensions (L x W x H): 108 mm x 63.1 mm x 74.1 mm; Connection type: 1 x M12, 17-pin plug (serial, CAN, I/Os, power supply); 1 x M12, 8-pin socket (Ethernet, 1 GBit/s); 1 x M8, 4-pin socket (USB); 1 x M12, 4-pin socket (external illumination control); Enclosure rating: IP67 (EN 60529 (1991-10), EN 60529/A2 (2002-02)); Housing material: Aluminum die cast; Ambient operating temperature: 0 °C... +50 °C; Weight: 500 g; Variant: Complete device; Optical focus: Adjustable focus (manual); Sensor: CMOS monochrome

Weight

0.5 kg

Dimensions

108 x 63.1 x 74.1
