1123685

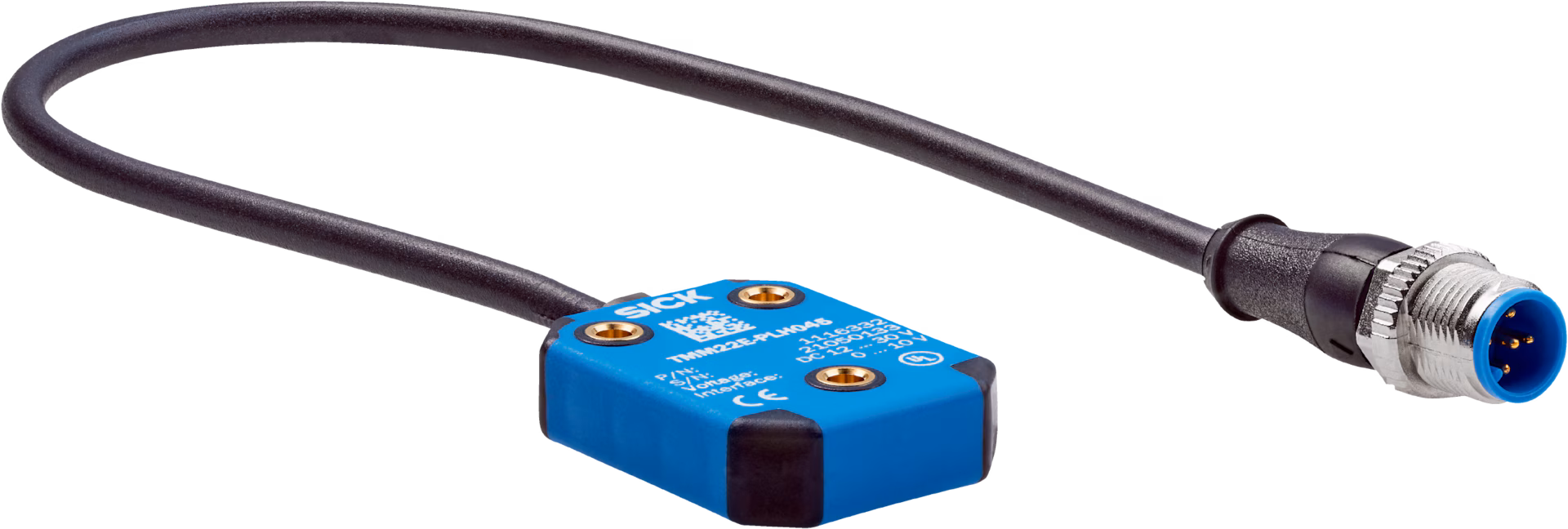

SICK 1123685 / TMS22E-PKH360 is an inertial sensor in the TMS/TMM22 family. Number of axis: 1; Measuring range: 360°; Resolution: ≤ 0.03°; Communication interface: - / Current; Current output: 4 mA... 20 mA; Programmable/configurable: no; 0-set function via hardware pin: yes; Housing material: Plastic (PA12), glass-fiber reinforced; Connection type: Cable, 5-wire, with male connector, M12, 5-pin, 0.3 m.

Manufacturer

Sick

Part number

1123685

Product family

TMS/TMM22

Category

Inertial sensors

Technical details

Resolution: ≤ 0.03°; Supply voltage: 12 V DC... 30 V DC; Communication interface: - / Current; Static measurement accuracy: Typ. 0.25°, max. 0.4°; Repeatability: 30 μA; Dimensions: 38.8 mm x 30 mm x 10.4 mm; Connection type: Cable, 5-wire, with male connector, M12, 5-pin, 0.3 m; Enclosure rating: IP66; IP67; IP68; IP69K; Housing material: Plastic (PA12), glass-fiber reinforced; Weight: Approx. 60 g; MTTFD (mean time to dangerous failure): 961 years (EN ISO 13849-1); Number of axis: 1; Measuring range: 360°; Temperature coefficient (zero point): ±0.03°/K

Weight

0.06 kg

Dimensions

38.8 x 30 x 10.4
