1073791

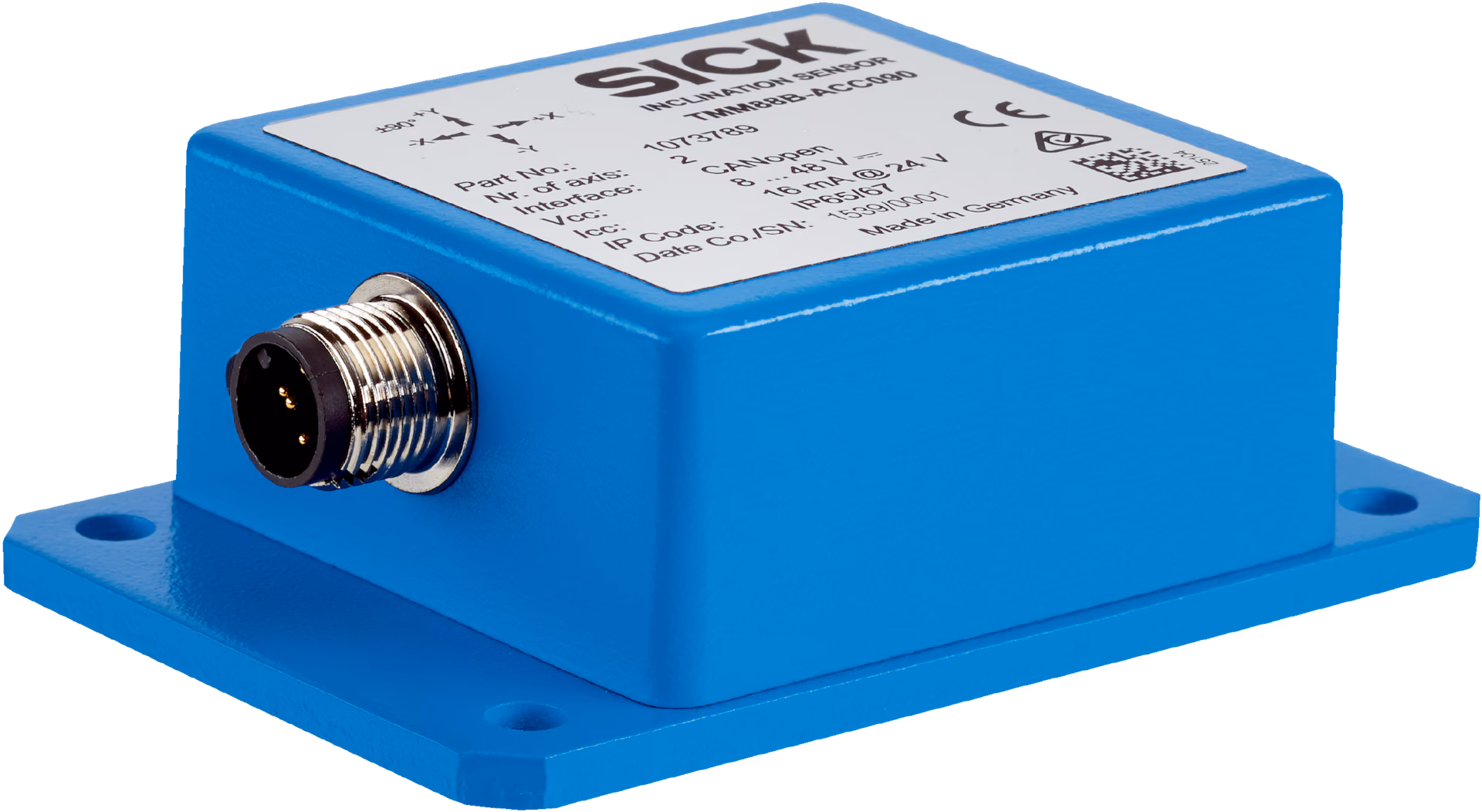

SICK 1073791 / TMM88B-AKC090 is an inertial sensor in the TMS/TMM88 family. Number of axis: 2; Measuring range: ± 90°; Resolution: 0.01°; Communication interface: - / Current; Current output: 4 mA... 20 mA; Programmable/configurable: yes; Programming interface: Over PGT-12-Pro; Housing material: Aluminum; Connection type: Male connector, M12, 5-pin.

Manufacturer

Sick

Part number

1073791

Product family

TMS/TMM88

Category

Inertial sensors

Technical details

Resolution: 0.01°; Supply voltage: 17 V DC... 35 V DC; Communication interface: - / Current; Static measurement accuracy: ≤ ± 60°, typ. ± 0.1°, max. ± 0.2°; ≤ ± 80°, typ. ± 0.2°, max. ± 0.4°; Dimensions: 58 mm x 90 mm x 31 mm; Connection type: Male connector, M12, 5-pin; Enclosure rating: IP65 (IEC 60529); IP67 (IEC 60529); Housing material: Aluminum; Weight: 200 g; MTTFD (mean time to dangerous failure): 299 years (EN ISO 13849-1); Number of axis: 2; Measuring range: ± 90°; Compensated cross-sensitivity (2-dimensional): Typ. ± 0.1°, max. ± 0.2°; Temperature coefficient (zero point): Typ. ±0.01°/K

Weight

0.2 kg

Dimensions

58 x 90 x 31
