1123236

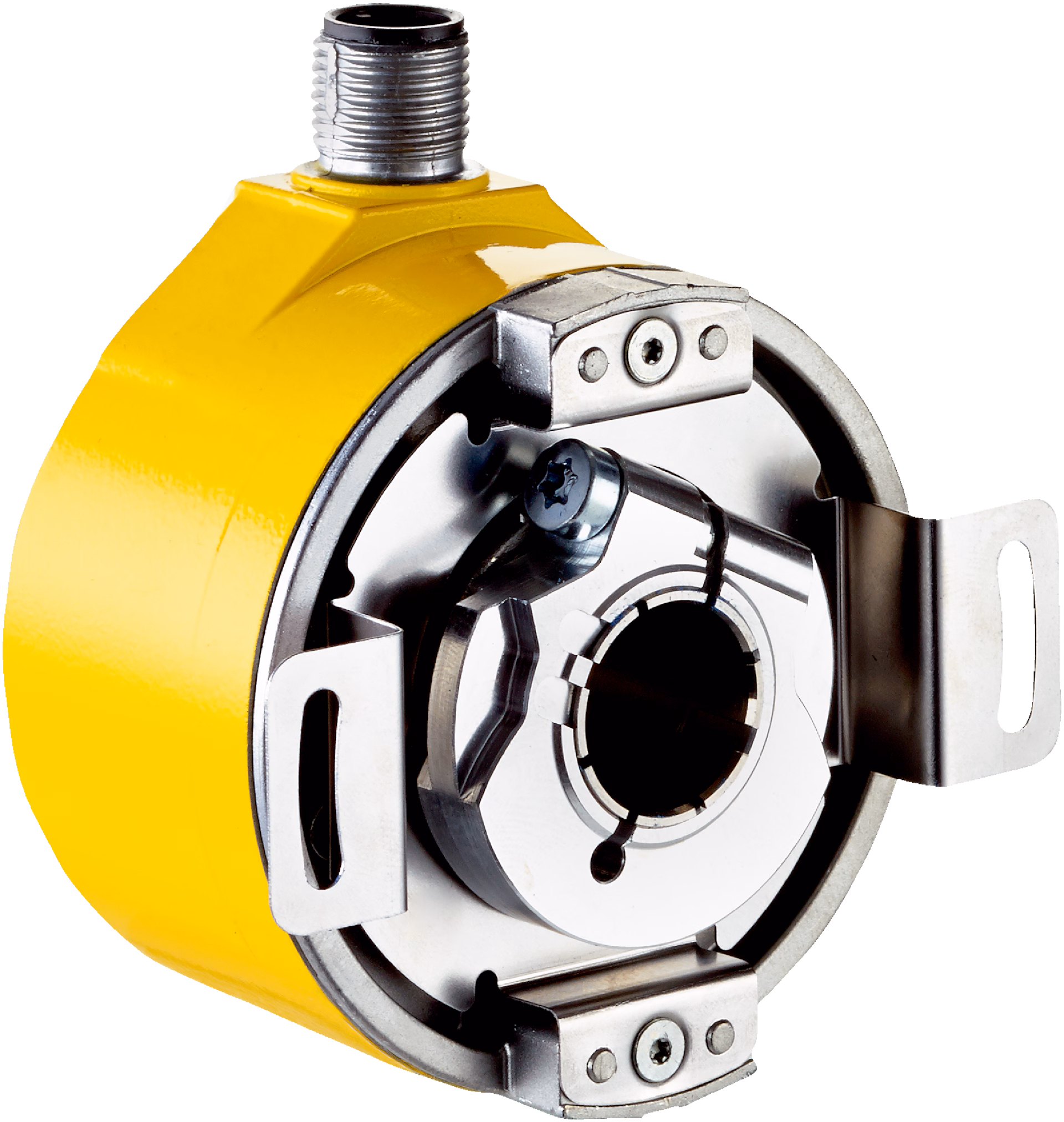

SICK 1123236 / AFS60S-TBKC262144 is a safety encoder in the AFS/AFM60S Pro family. Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3); Performance level: PL e (EN ISO 13849-1); Singleturn or multiturn version: Singleturn; Number of steps per revolution: 262,144 (18 bit); Mechanical design: Through hollow shaft 8 mm (with feather key groove); Communication interface: SSI, SSI + Sin/Cos, non programmable; Connection type: Male connector, M12, 12-pin, radial.

Manufacturer

Sick

Part number

1123236

Product family

AFS/AFM60S Pro

Category

Safety encoders

Technical details

Number of steps per revolution (max. resolution): 262,144 (18 bit); Supply voltage: 4.5... 30 V; Communication interface: SSI; Communication Interface detail: SSI + Sin/Cos; Safety-related accuracy: 0.09° category 3; 0.35° category 4; Repeatability standard deviation σr: 0.002°; Connection type: Male connector, M12, 12-pin, radial; Enclosure rating: IP65 (IEC 60529); Housing material: Aluminum die cast; Weight: 0.25 kg; Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3); Performance level: PL e (EN ISO 13849-1); Category: 3 (EN ISO 13849-1); 4 (EN ISO 13849-1); PFH (mean probability of a dangerous failure per hour): 5.5 x 10 at 40 °C; 1.8 x 10 at 80 °C

Weight

0.25 kg

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
