1069519

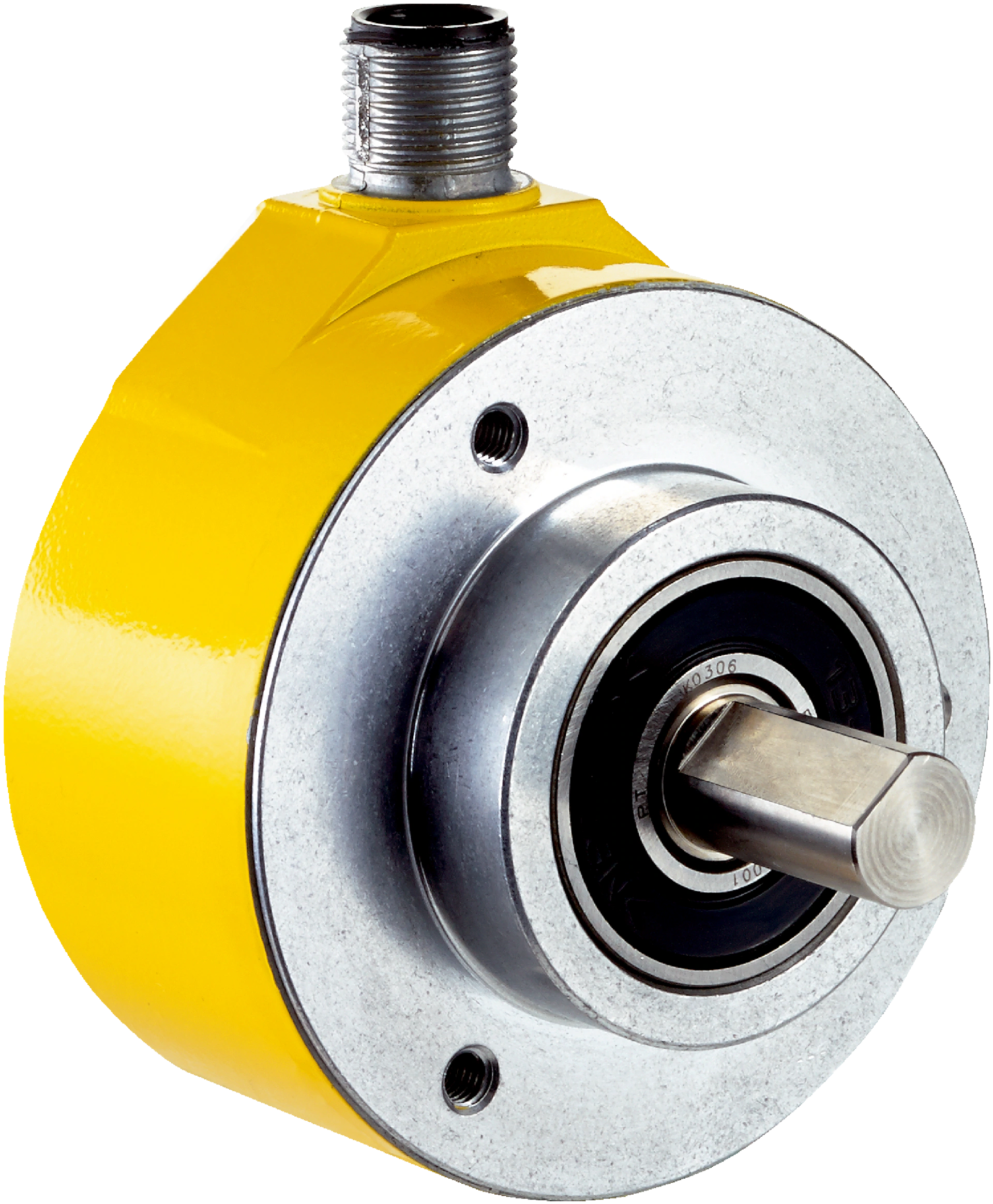

SICK 1069519 / DFS60S-S4OC01024 is a safety encoder in the DFS60S Pro family. Safety integrity level: SIL 2 (IEC 61508), SILCL2 (IEC 62061); Performance level: PL d (EN ISO 13849); Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat); Communication interface: 4.5 V... 32 V, Sin/Cos, non programmable; Connection type: Male connector, M12, 8-pin, radial; Sine/cosine periods per revolution: 1,024; Anti-dither: no.

Manufacturer

Sick

Part number

1069519

Product family

DFS60S Pro

Category

Safety encoders

Technical details

Supply voltage: 4.5... 32 V; Communication interface: Incremental; Communication Interface detail: Sin/Cos; Safety-related accuracy: ± 0.09°; Connection type: Male connector, M12, 8-pin, radial; Enclosure rating: IP65 (IEC 60529); Housing material: Aluminum die cast; Weight: Approx. 0.3 kg; Safety integrity level: SIL 2 (IEC 61508), SILCL2 (IEC 62061); Performance level: PL d (EN ISO 13849); Category: 3 (EN ISO 13849); PFH (mean probability of a dangerous failure per hour): 1.7 x 10; TM (mission time): 20 years (EN ISO 13849); Safety-related measuring step: 0.09°, Quadrature analysis

Weight

0.3 kg
