1110035

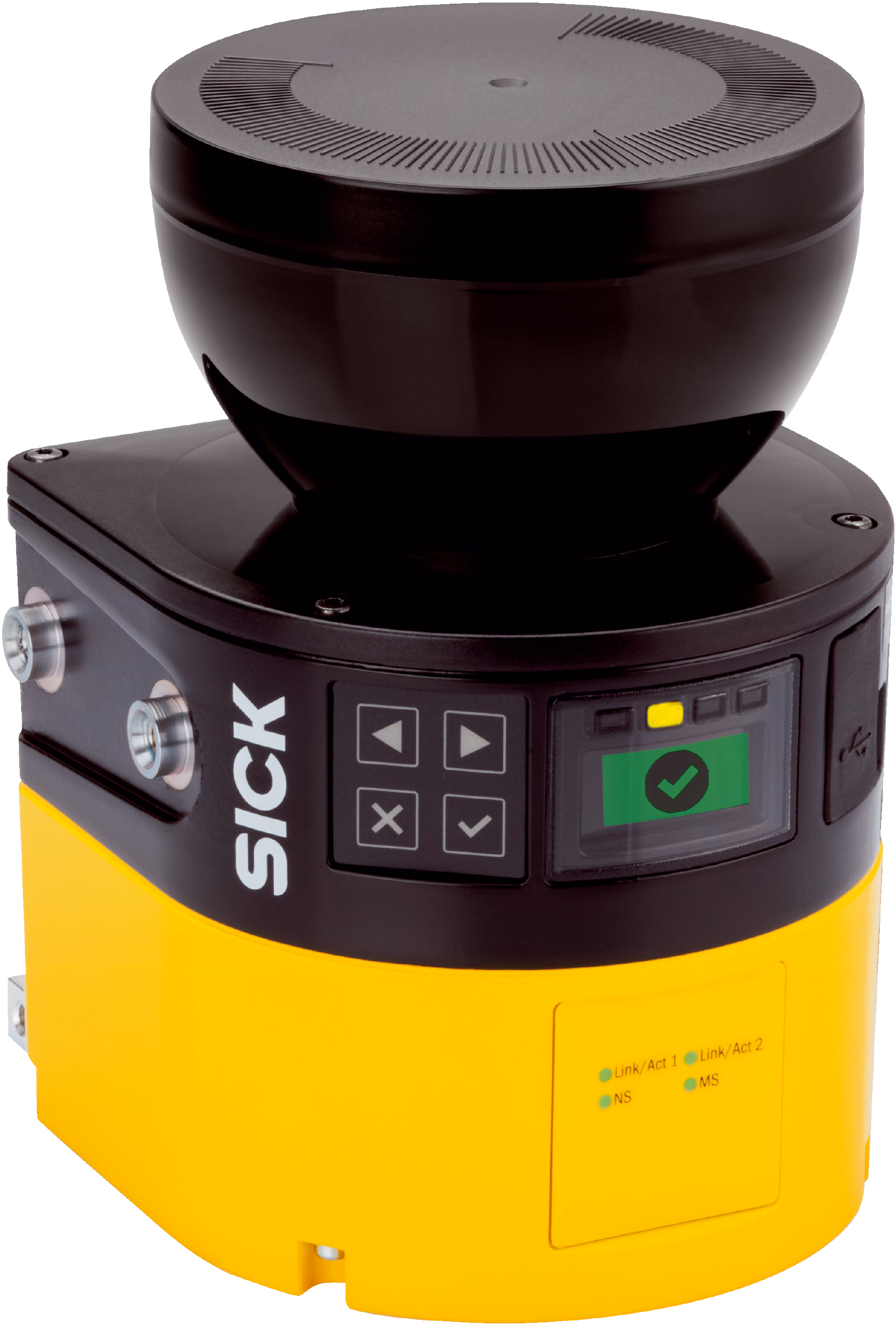

SICK 1110035 / MICS3-CCAZ40AA1P01 is a safety laser scanner in the microScan3 family. Product version: microScan3 Pro I/O - EFI-pro; Model: Sensor (1110034) including system plug (2115434), pre-mounted on the underside; Integration in the control system: Local inputs and outputs (I/O), EFI-pro; Protective field range: 4 m; Scanning angle: 275°; Number of fields: 128; Connection type: M12.

Manufacturer

Sick

Part number

1110035

Product family

microScan3

Category

Safety laser scanners

Technical details

Type of light: Pulsed laser diode; Resolution (can be configured): 30 mm; 40 mm; 50 mm; 70 mm; 150 mm; 200 mm; Angular resolution: 0.39°; Supply voltage Vs: 24 V DC (16.8 V DC... 30 V DC); Safe SICK device communication via EFI-pro: ✔; Configuration and diagnostics interface: USB 2.0, Mini-USB, Ethernet; Data interface: Services EtherNet/IP™ CIP Safety™; Response time: 70 ms; Dimensions (W x H x D): 112 mm x 163 mm x 111.1 mm; Connection type: Voltage supply 1 x male connector, M12, 4-pin, A-coded; Enclosure rating: IP65 (IEC 60529); Housing material: Aluminum; Ambient operating temperature: –10 °C... +50 °C; Weight: 1.6 kg

Weight

1.6 kg

Dimensions

112 x 163 x 111.1
