1067875

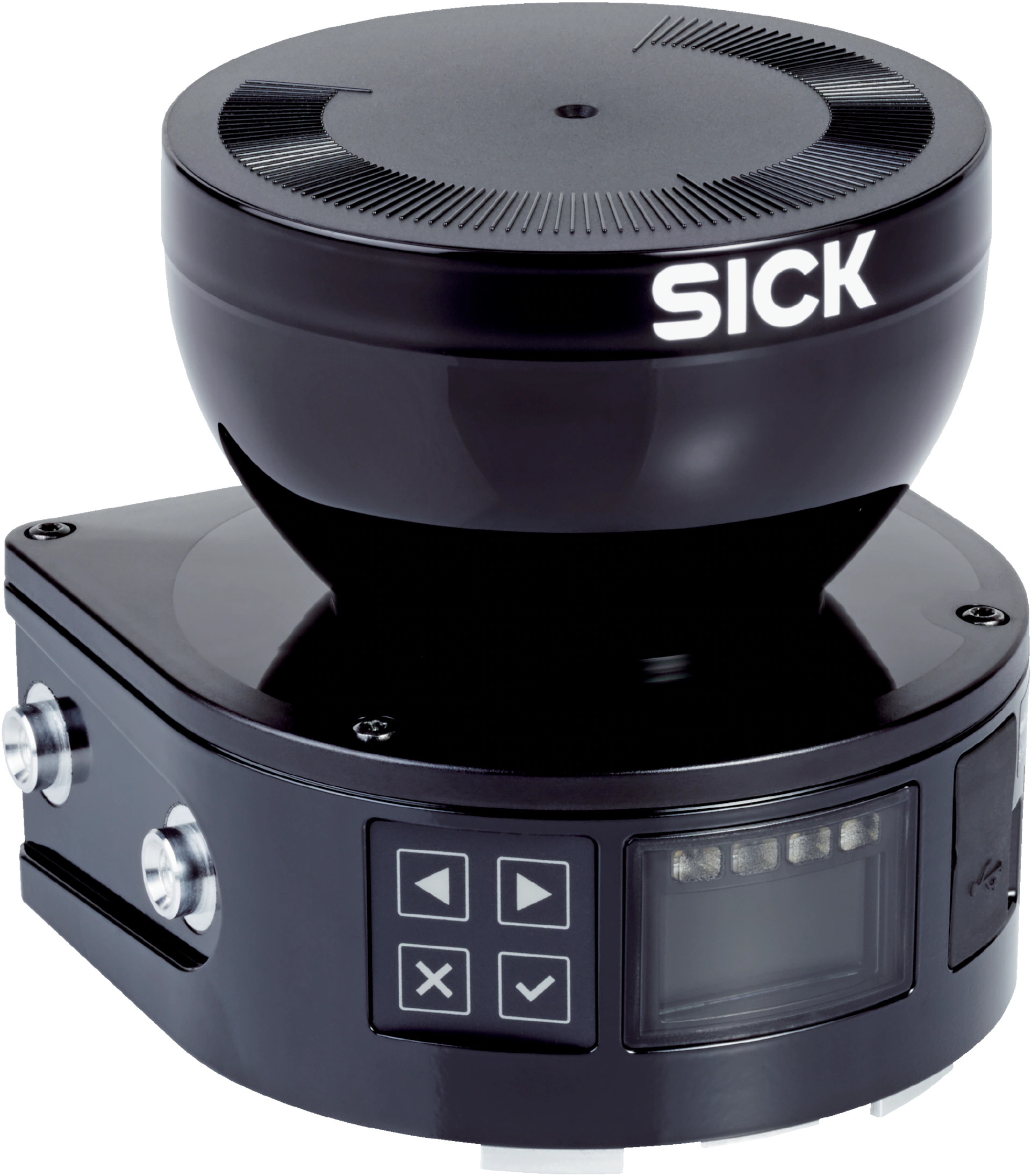

SICK 1067875 / MICS3-AAAZ55AZ1 is a safety laser scanner in the microScan3 family. Product version: microScan3 Core I/O; Model: Sensor without system plug; Integration in the control system: Local inputs and outputs (I/O); Protective field range: 5.5 m; Scanning angle: 275°; Number of fields: 8; Connection type: M12.

Manufacturer

Sick

Part number

1067875

Product family

microScan3

Category

Safety laser scanners

Technical details

Type of light: Pulsed laser diode; Resolution (can be configured): 30 mm; 40 mm; 50 mm; 70 mm; 150 mm; 200 mm; Angular resolution: 0.39°; Supply voltage Vs: 24 V DC (16.8 V DC... 30 V DC); Configuration and diagnostics interface: USB 2.0, Mini-USB; Response time: 70 ms; Connection type: Male connector, M12, 8 pin, A-coded (common male connector for power supply and inputs and outputs); Enclosure rating: IP65 (IEC 60529); Housing material: Aluminum; Ambient operating temperature: –10 °C... +50 °C; Product version: microScan3 Core I/O; Model: Sensor without system plug; Application: Indoor; Protective field range: 5.5 m

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
