1108234

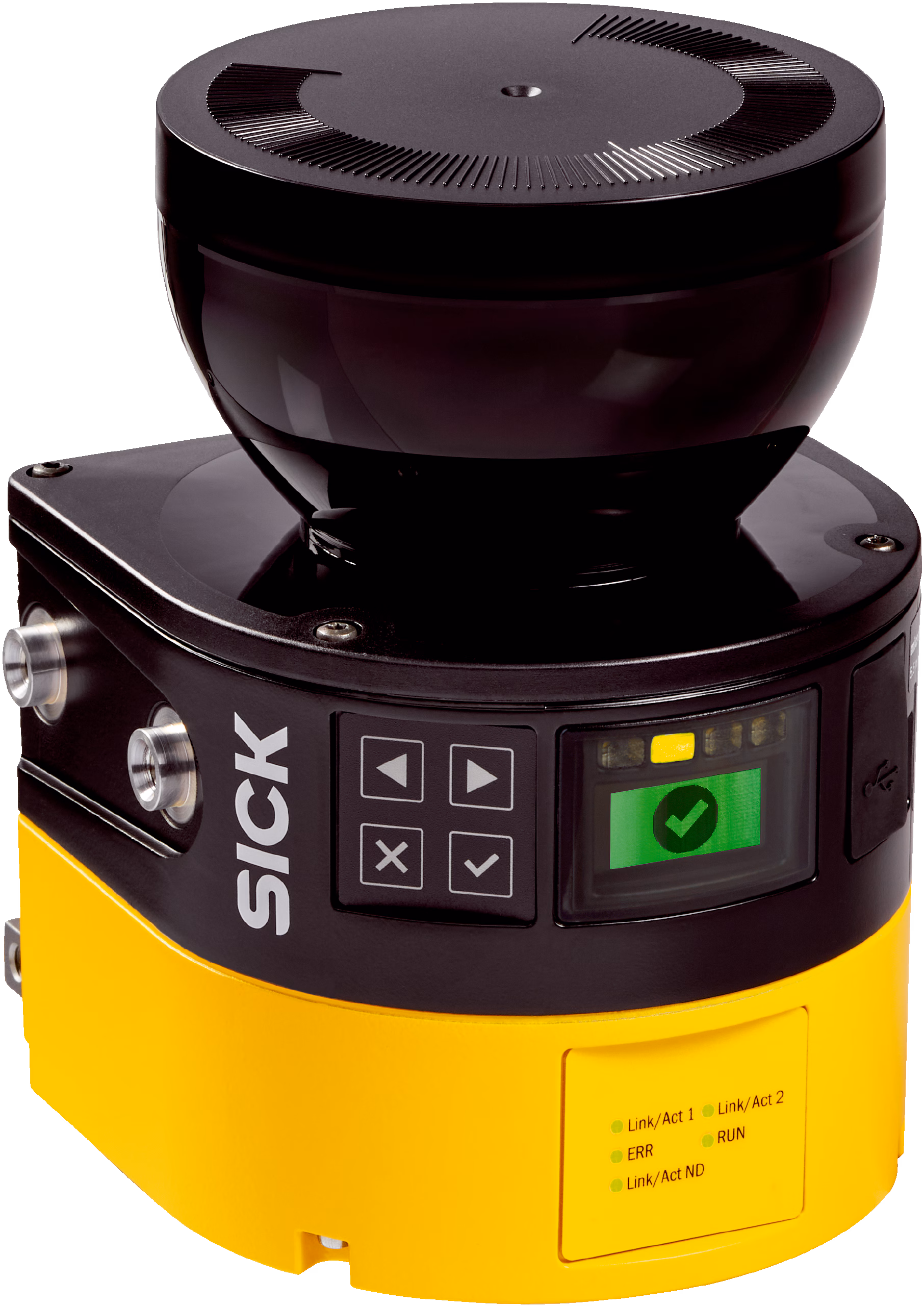

SICK 1108234 / MICS3-ABAZ90EN1P01 is a safety laser scanner in the microScan3 family. Product version: microScan3 Core - EtherCAT; Model: Sensor (1108235) including system plug (2081021), pre-mounted on the underside; Integration in the control system: EtherCAT® FSoE; Protective field range: 9 m; Scanning angle: 275°; Number of fields: 8; Connection type: M12.

Manufacturer

Sick

Part number

1108234

Product family

microScan3

Category

Safety laser scanners

Technical details

Type of light: Pulsed laser diode; Resolution (can be configured): 30 mm; 40 mm; 50 mm; 60 mm; 70 mm; 150 mm; 200 mm; Angular resolution: 0.1°; Supply voltage Vs: 24 V DC (16.8 V DC... 30 V DC); Data interface: 1 x M12 female connectors, 4-pin, D-coded; Configuration and diagnostics interface: USB 2.0, Mini-USB, Ethernet; Response time: 115 ms; Dimensions (W x H x D): 112 mm x 150.7 mm x 111.1 mm (without system plug); Connection type: Voltage supply 1 x male connector, M12, 4-pin, A-coded; Enclosure rating: IP65 (IEC 60529); Housing material: Aluminum; Ambient operating temperature: –10 °C... +50 °C; Weight: 1.45 kg; Product version: microScan3 Core - EtherCAT

Weight

1.45 kg

Dimensions

112 x 150.7 x 111.1 (without system plug)

All New and Used products supplied by NeoIPS include a 12-month warranty as standard. Longer coverage may apply when provided by the manufacturer and will be stated in the quotation or order confirmation.
