1100407

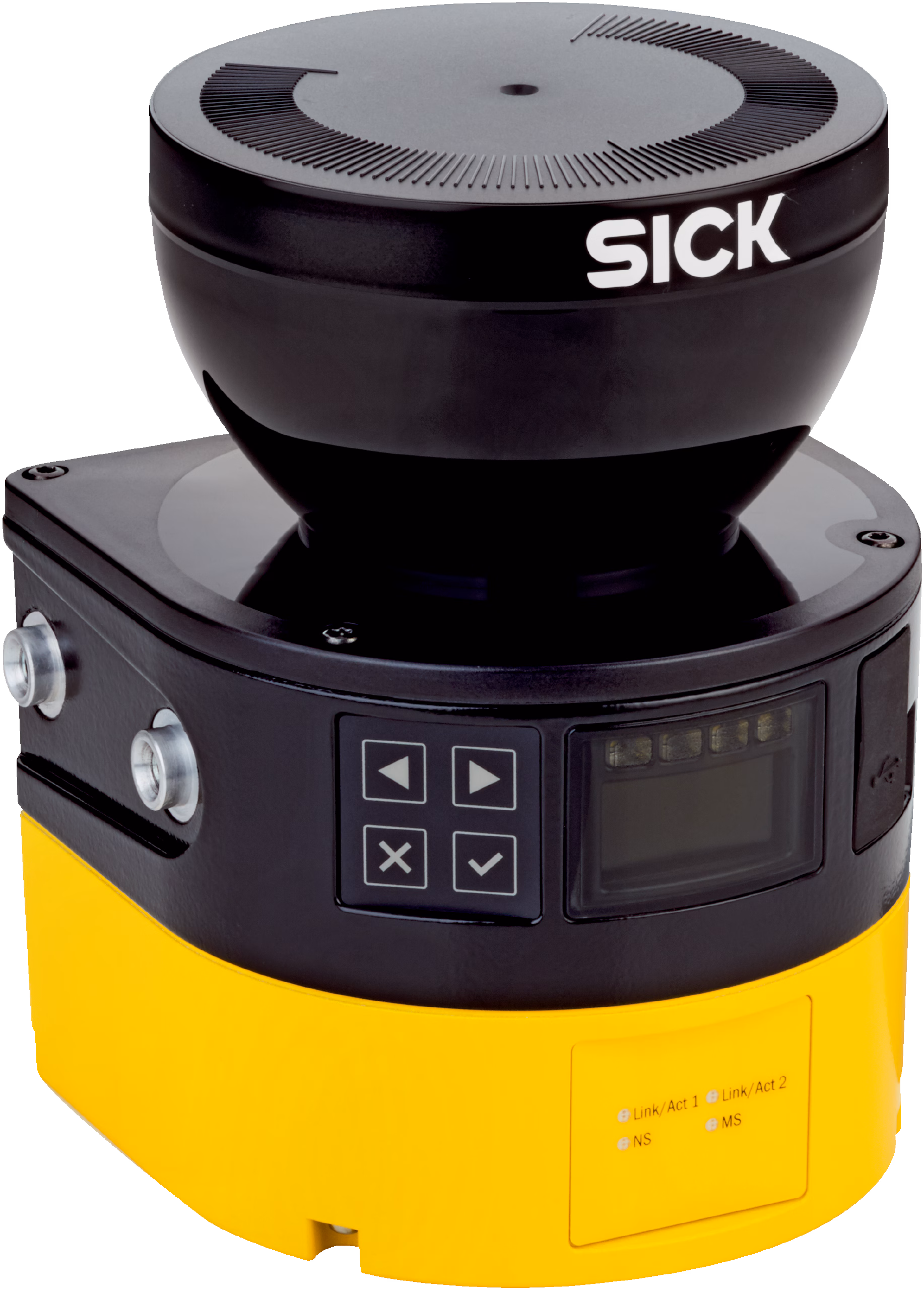

SICK 1100407 / MICS3-ABAZ90PZ1 is a safety laser scanner in the microScan3 family. Product version: microScan3 Core - PROFINET; Model: Sensor without system plug; Integration in the control system: PROFINET PROFIsafe; Protective field range: 9 m; Scanning angle: 275°; Number of fields: 8; Connection type: M12.

Manufacturer

Sick

Part number

1100407

Product family

microScan3

Category

Safety laser scanners

Technical details

Type of light: Pulsed laser diode; Resolution (can be configured): 30 mm; 40 mm; 50 mm; 60 mm; 70 mm; 150 mm; 200 mm; Angular resolution: 0.1°; Supply voltage Vs: 24 V DC (16.8 V DC... 30 V DC); Configuration and diagnostics interface: USB 2.0, Mini-USB, Ethernet; F_iPar_CRC Acyclic read-/write services for communication via TCI SNTP (client and server) Additional interfaces: TCP/IP communication via port 9000; Response time: 115 ms; Dimensions (W x H x D): 112 mm x 150.8 mm x 111.1 mm; Connection type: Voltage supply 1 x male connector, M12, 4-pin, A-coded; Enclosure rating: IP65 (IEC 60529); Housing material: Aluminum; Ambient operating temperature: –10 °C... +50 °C; Product version: microScan3 Core - PROFINET; Model: Sensor without system plug

Dimensions

112 x 150.8 x 111.1
